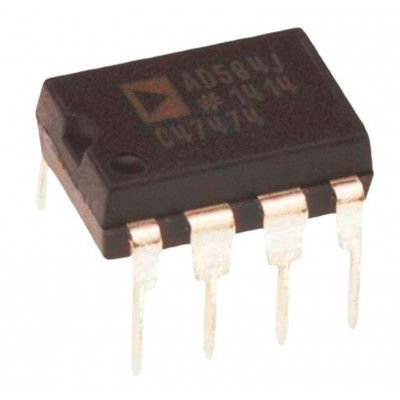

  • AD584 IC - High Precision Voltage Reference IC

The AD584 is an 8-terminal precision voltage reference offering pin programmable selection of four popular output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Other output voltages, above, below, or between the four standard outputs, are available by the addition of external resistors. The input voltage can vary between 4.5 V and 30 V. Laser wafer trimming (LWT) is used to adjust the pin programmable output levels and temperature coefficients, resulting in the most flexible high precision voltage reference available in monolithic form. In addition to the programmable output voltages, the AD584 offers a unique strobe terminal that permits the device to be turned on or off. When the AD584 is used as a power supply reference, the supply can be switched off with a single, low power signal. In the off state, the current drained by the AD584 is reduced to approximately 100 µA. In the on state, the total supply current is typically 750 µA, including the output buffer amplifier. The AD584 is recommended for use as a reference for 8-, 10-, or 12-bit digital-to-analog converters (DACs) that require an external precision reference. In addition, the device is ideal for analog-to-digital converters (ADCs) of up to 14-bit accuracy, either successive approximation or integrating designs, and in general, it can offer better performance than that provided by standard self-contained references.

Features:-

• Four programmable output voltages 10.000 V, 7.500 V, 5.000 V, and 2.500 V

Laser-trimmed to high accuracies

No external components required

Trimmed temperature coefficient

   -15 ppm/°C maximum, 0°C to 70°C (AD584K)

   -15 ppm/°C maximum, −55°C to +125°C (AD584T)

Zero output strobe terminal provided

2-terminal negative reference: capability (5 V and above)

Output sources or sinks current

Low quiescent current: 1.0 mA maximum

10 mA current output capability

MIL-STD-883 compliant versions available

Specification:-

Parameter  Specification
Input Voltage VIN to Ground 40V
Input Voltage Power Dissipation at 25°C  600 mW
Operating Junction Temperature Range −55°C to +125°C
Lead Temperature 300°C
Junction-to-Ambient 150°C/W


Related Document:-

 AD584 IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 577.02 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

AD584 IC - High Precision Voltage Reference IC

  • Product Code: EC-1853
  • Availability: 762
  • Rs.579.00
  • (Excluding 18% GST)
