The L4960 is a monolithic power switching regulator delivering 2.5A at a voltage variable from 5V to 40V in step down configuration. Features of the device include current limiting, soft start, thermal protection and 0 to 100% duty cycle for continuous operation mode. The L4960 is mounted in a Heptawatt plastic power package and requires very few external components. Efficient operation at switching frequencies up to 150KHz allows a reduction in the size and cost of external filter components.
Features:-
• 2.5a Output Current
• 5.1v To 40v Oputput Voltage Range
• Precise (± 2%) On-Chip Reference
• High Switching Frequency
• Very High Efficiency (Up To 90%)
• Very Few External Components
• Soft Start
• Internal Limiting Current
• Thermal Shutdown
Specifications:-
| Symbol | Parameters | Values | Units |
| V1 | Input voltage | 50 | V |
| V1 - V7 | Input to output voltage difference | 50 | V |
| V7 | Negative output DC voltage | -1 | V |
| Negative output peak voltage at t = 0.1µs; f = 100KHz | -5 | V | |
| V3, V5 | Voltage at pin 3 and 6 | 5.5 | V |
| V2 | Voltage at pin 2 | 7 | V |
| I3 | Pin 3 sink current | 1 | mA |
| I5 | Pin 5 source current | 20 | mA |
| Ptot | Power dissipation at Tcase ≤ 90°C | 15 | W |
| Tj, Tstg | Junction and storage temperature | -40 to 150 | °C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 182.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

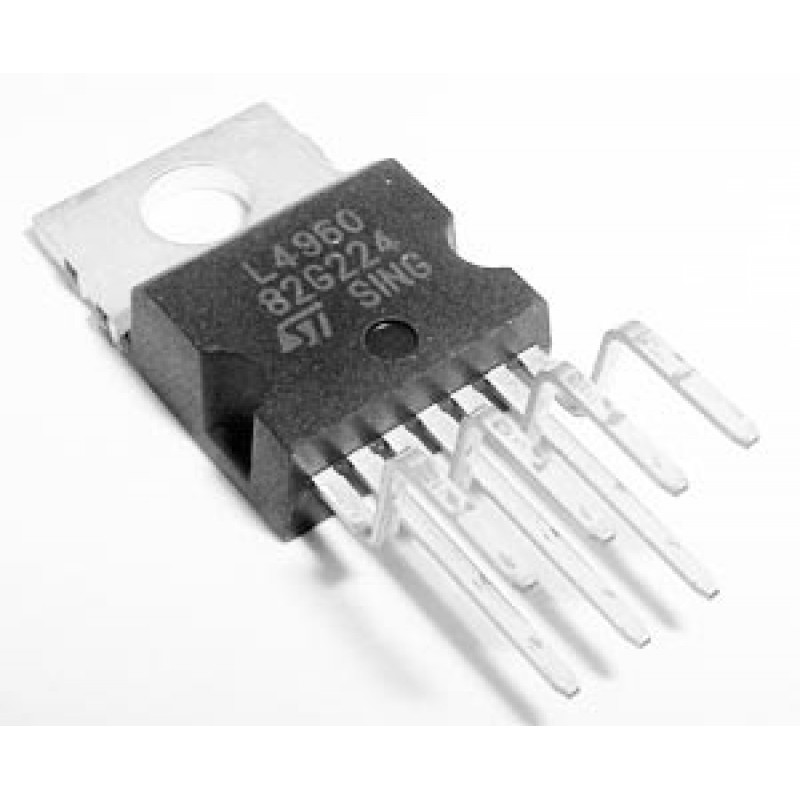

L4960 IC - 2.5A Switching Regulator IC
- Product Code: EC-2588
- Availability: 125
-
Rs.165.00
- (Excluding 18% GST)
