The LM567 is general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the pass band. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
Features:-
• 20 to 1 Frequency Range With an External Resistor
• Logic Compatible Output With 100-mA Current Sinking Capability
• Bandwidth Adjustable From 0 to 14%
• High Rejection of Out of Band Signals and Noise
• Immunity to False Signals
• Highly Stable Center Frequency
• Center Frequency Adjustable from 0.01 Hz to
• 500 kHz
Specification:-
| Parameters | Min | Max | Units | |
| Supply Voltage Pin | 9 | V | ||
| Power Dissipation | 1100 | mW | ||
| V8 | 15 | V | ||
| V3 | -10 | V | ||
| V3 | VA+0.5 | V | ||
| Operating Temperature Range | LM567CM, LM567CN | 0 | 70 | °C |
| PDIP Package | 260 | °C | ||
| SOIC Package | 215 | °C | ||
| 220 | °C | |||
| Storage temperature range, Tstg | -65 | 150 | °C | |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

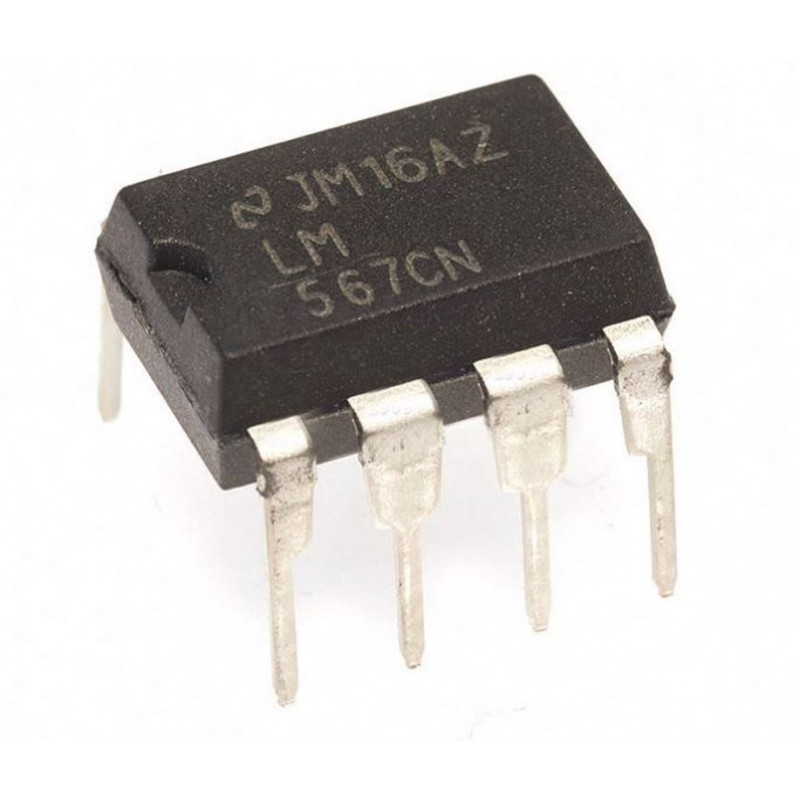

LM567 IC - Tone Decoder IC
- Product Code: EC-2201
- Availability: 634
-
Rs.28.32
