2SK1118 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Advanced Process Technology
• Fast Switching
• Fully Avalanche Rated
• Lead-Free
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 600V |
| Collector Current (Ic) | 6A |
| Drain-Source Resistance (Rds On) | 1.25Ohms |
| Gate-Source Voltage (Vgs) | 3.5V |
| Configuration | Single |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 45W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

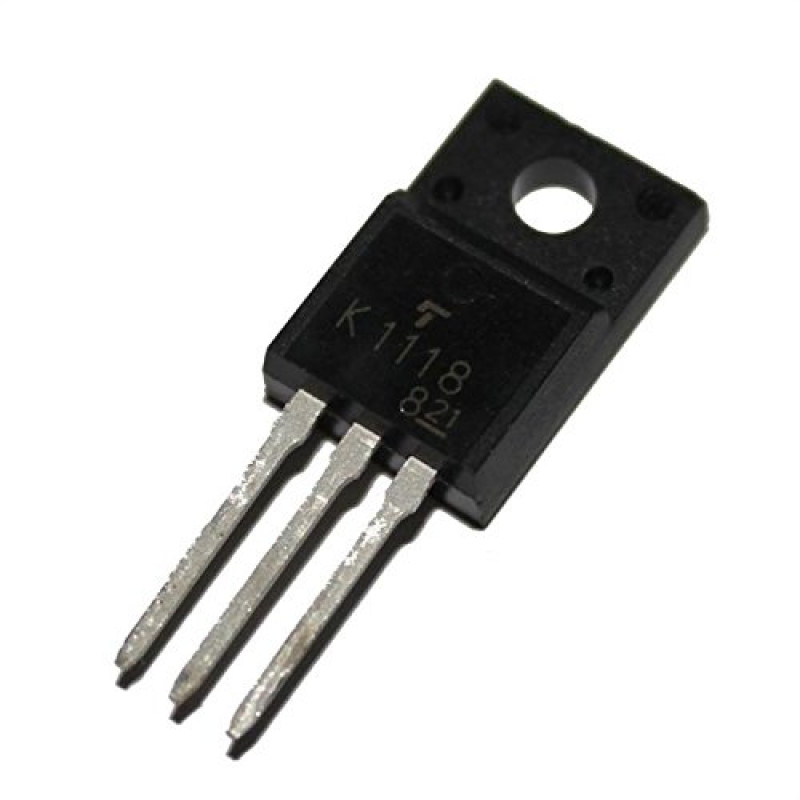

2SK1118 MOSFET - 600V 6A N-Channel Power MOSFET TO-220F Package
- Product Code: EC-2278
- Availability: 314
-
Rs.112.10
