2SK1317 utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications
Features:-
• High breakdown voltage VDSS = 1500 V
• High speed switching
• Low drive current
• No secondary breakdown
• Suitable for switching regulator, DC-DC converter and motor driver
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 1500V |
| Continuous Drain Current (Id) | 2.5A |
| Drain-Source Resistance (Rds On) | 12Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Configuration | Single |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 100W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

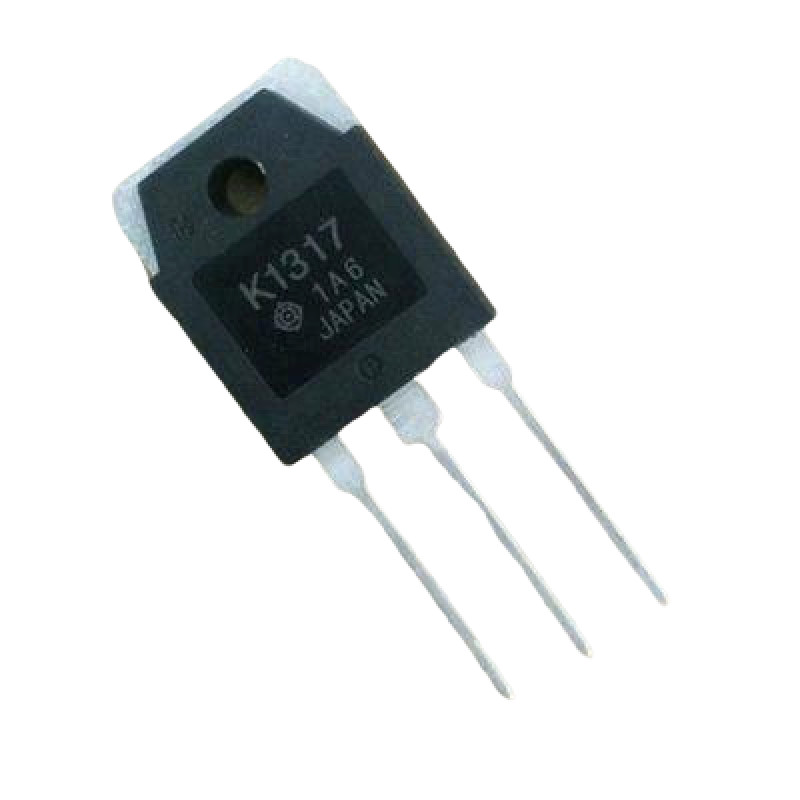

2SK1317 MOSFET - 1500V 2.5A N-Channel Power MOSFET TO-3P Package
- Product Code: EC-2281
- Availability: 611
-
Rs.418.90
