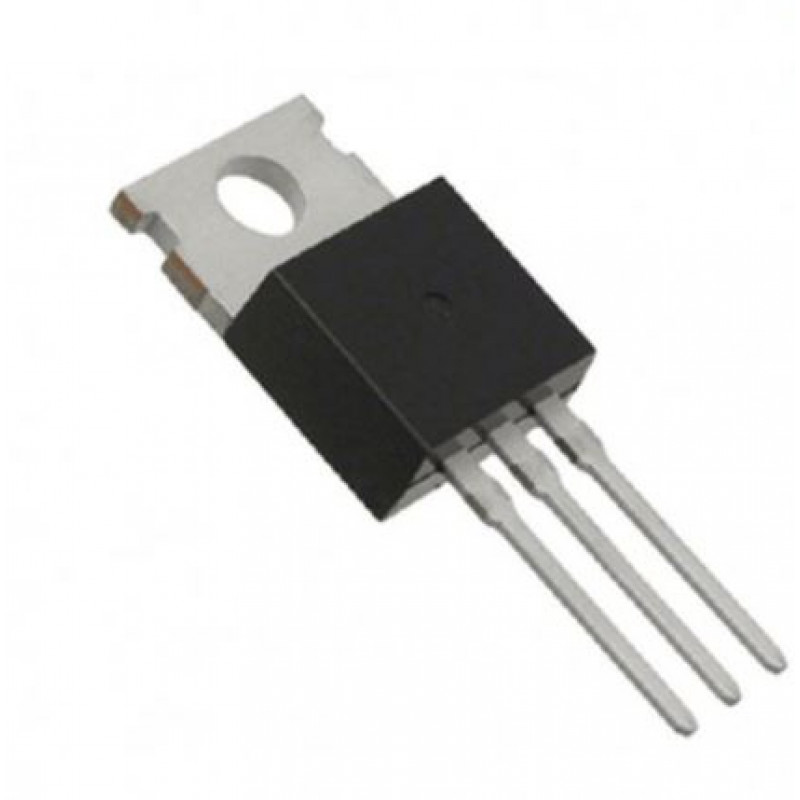

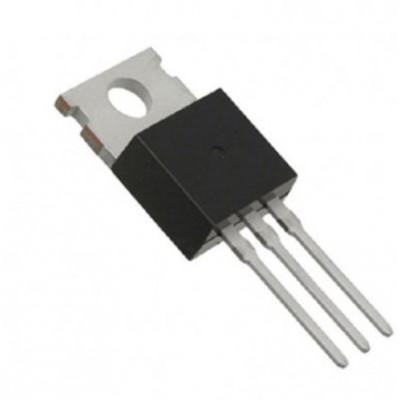

  • 2N6107 PNP Bipolar Power Transistor 70V 7A TO-220 Package

2N6107 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications:-

Transistor Polarity PNP
Collector-Base Voltage (VCBO) 80VDC
Collector-Emitter Voltage (VCEO) 70VDC
Emitter-Base Voltage (VEBO) 5VDC
Continuous Collector Current (IC) 7A
Output Capacitance (Cobo) 250pF
Transition Frequency (fT) 10MHz
DC Current Gain (hFE) 20
Operating Temperature Range -65 - 150°C
Power Dissipation (PD) 40W


Related Documents:-

 2N6107 Transistor Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 20.06 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2N6107 PNP Bipolar Power Transistor 70V 7A TO-220 Package

  • Product Code: EC-2298
  • Availability: 408
  • Rs.17.00
  • (Excluding 18% GST)
