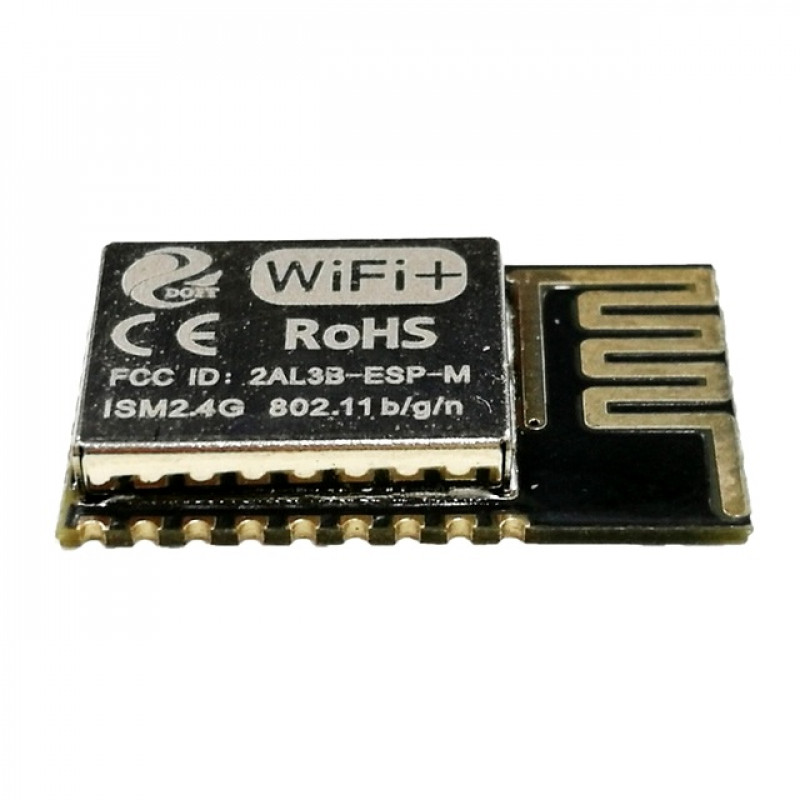

The DOIT Mini Ultra-Small size ESP-M3 Serial WiFi Module is manufactured by using a high-performance chip ESP8285. This small chip is encapsulated an enhanced Tensilicas L106 Diamond series 32-bit kernel CPU with an SRAM. Thus, ESP8285 has the complete function of Wi-Fi function; it not only can be applied independent but can be used as a slave working with other host CPU. When ESP8285 is applied as a slave, it can start from the onboard Flash.

The built-in high-speed buffer is not only benefiting improve the system performance but optimizing the store system. In addition, ESP8285 can be used as a Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design.

Features:

1. Ultra-small size.
2. Support serial to WiFi
3. Wireless transparent transmission.
4. Long-distance transmission with ultra-low power.
5. Support outboard antenna.
6. Bearing high temperature to 125 C, compared to the 85C for ESP8266.

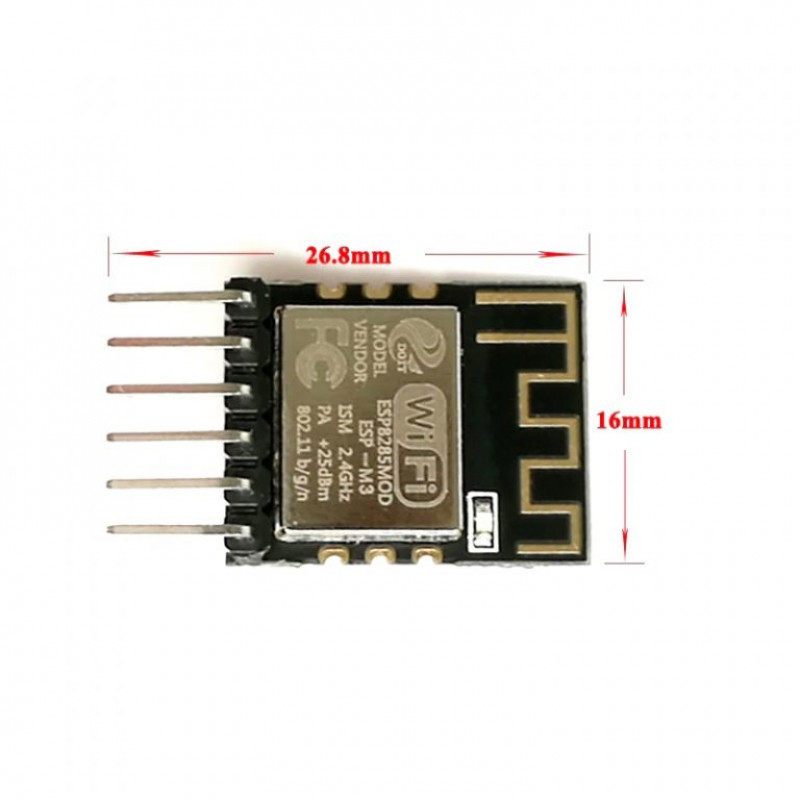

7. Module size:24.5mm x 14mm.
8. Derived from ESP8266, ESP8285 has a flash memory of 1MB
9. Totally compatible with ESP8266
10. WiFi support 802.11 b/g/n/e/i
11. High temperature resistant, working temperature: -40-125

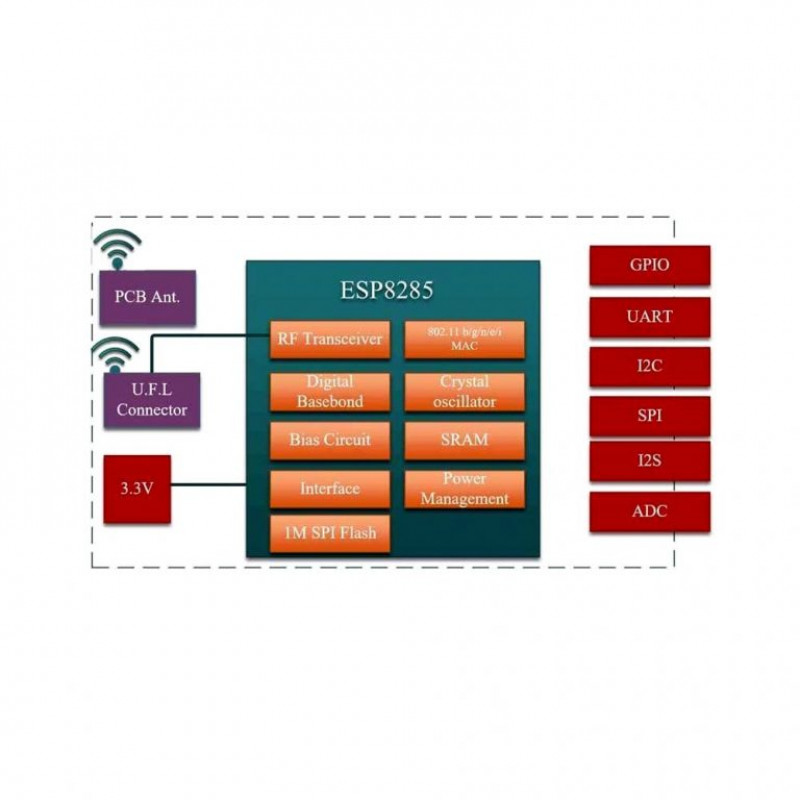

SOC characteristics:

1. Built-in Tensilica L106 ultra-low power consumption 32-bit CPU, the main frequency can be 80MHz and
2. 160MHz, also support RTOS;
3. Built-in TCP/IP protocol stack;
4. Built-in 1 channel 10-bit high precision ADC;
5. The outside interfaces have HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO;
6. The deep-sleep current is about 10uA, and the cut-off current is smaller than 5uA;
7. Can be wake-up within 2 ms, and connect to transmit data package;
8. the consumer power is smaller than 1.0mW (DTIM3) when at standby status;
9. built-in 1M byte for SPI Flash.

Wi-Fi characteristics:

1. Support 802.11 b/g/n/e/i
2. Support three modes: Station, SoftAP, and SoftAP+STA;
3. Support Wi-Fi Direct(P2P);
4. Support hardware acceleration for CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4),
5. API(SMS4), WEP(RC4), CRC;
6. P2P find, P2P GO mode/GC mode and P2P power management;
7. WPA/PA2 PSK and WPS;
8. Support 802.11 i security: pre-certification and TSN;
9. Support 802.11n (2.4 GHz);
10. 802.1h/RFC1042 frame encapsulation;
11. Support seamless roam;
12. Support AT remote updation and cloud OTA update;
13. Support SmartConfig function for Android and iOS device SmartConfig.

Application:

1. Serial Transparent transmission;
2. WiFi probe;
3. Smart power plug/Smart LED light;
4. Mesh networks;
5. Sensor networks;
6. Wearable electronics;
7. Security ID label;
8. Wireless location recognition;
9. Wireless location system beacon;
10. Industrial wireless control.

Package Includes:

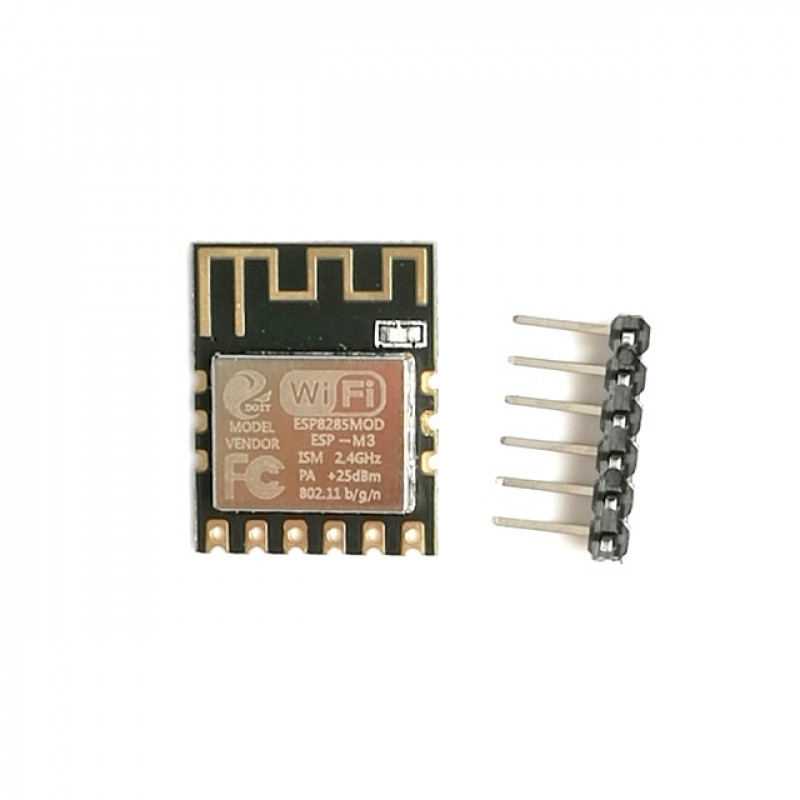

1 x DOIT Mini Ultra-Small size ESP-M3 Serial Wireless WiFi Transmission Module.

1 x Header Pins.
