IRF720 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W.
Features:-
• Dynamic dV/dt rating
• Repetitive avalanche rated
• Fast switching
• Ease of paralleling
• Simple drive requirements
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 400V |
| Continuous Drain Current (Id) | 3.3A |
| Drain-Source Resistance (Rds On) | 1.8Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 20 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 50W |
Related Documents
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 29.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

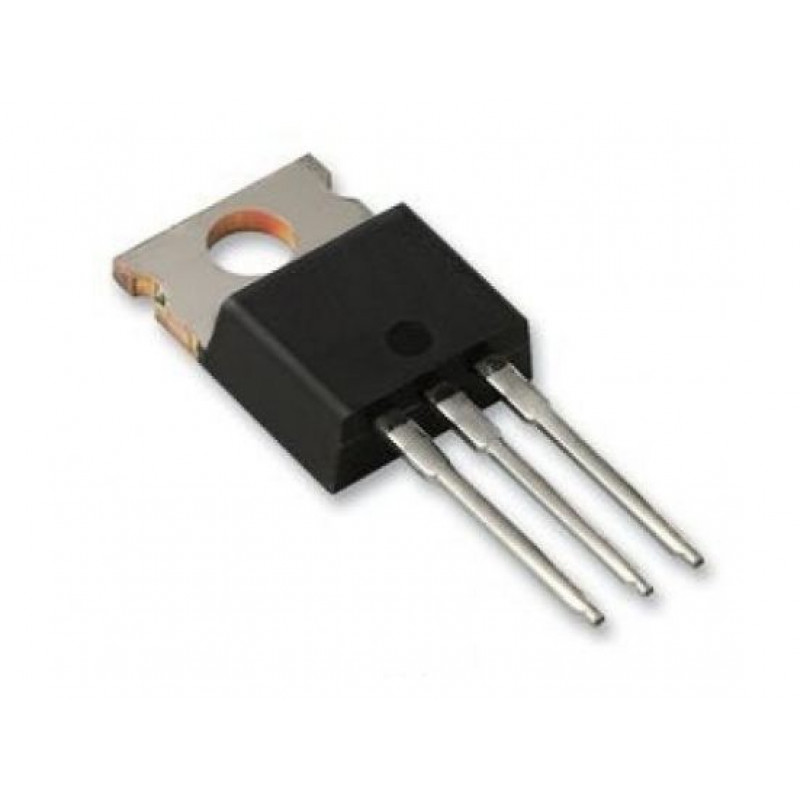

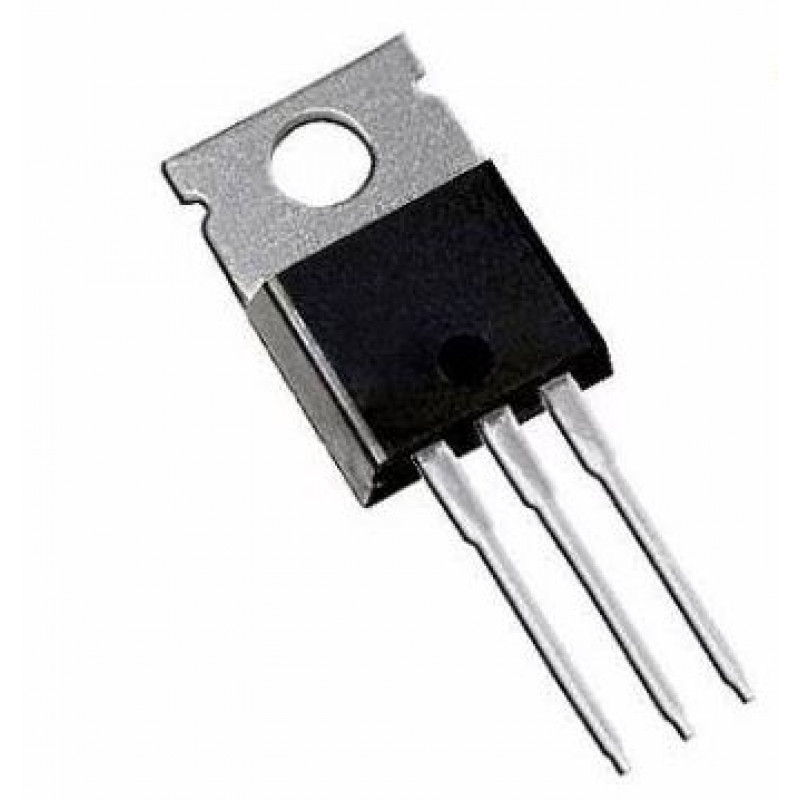

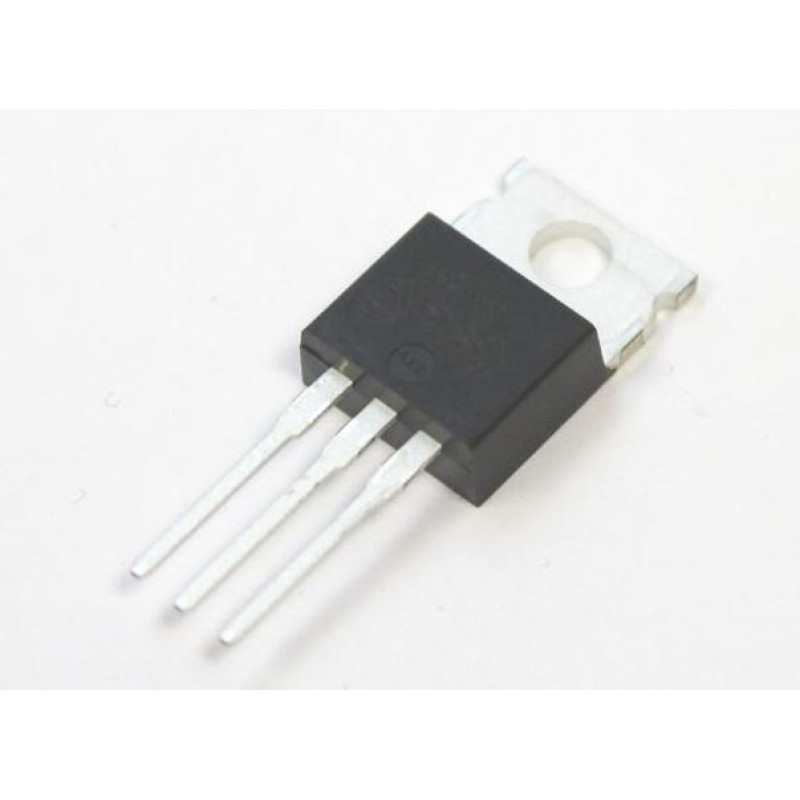

IRF720 MOSFET - 400V 3.3A N-Channel Power MOSFET TO-220 Package
- Product Code: EC-2209
- Availability: 355
-
Rs.25.00
- (Excluding 18% GST)
