IRFP044N is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Advanced process technology
• Dynamic dv/dt rating
• Fast switching
• Fully avalanche rated
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 55V |
| Continuous Drain Current (Id) | 53A |
| Drain-Source Resistance (Rds On) | 0.020Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 61 nC |
| Operating Temperature Range | -55 - 175°C |
| Power Dissipation (Pd) | 120W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 194.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

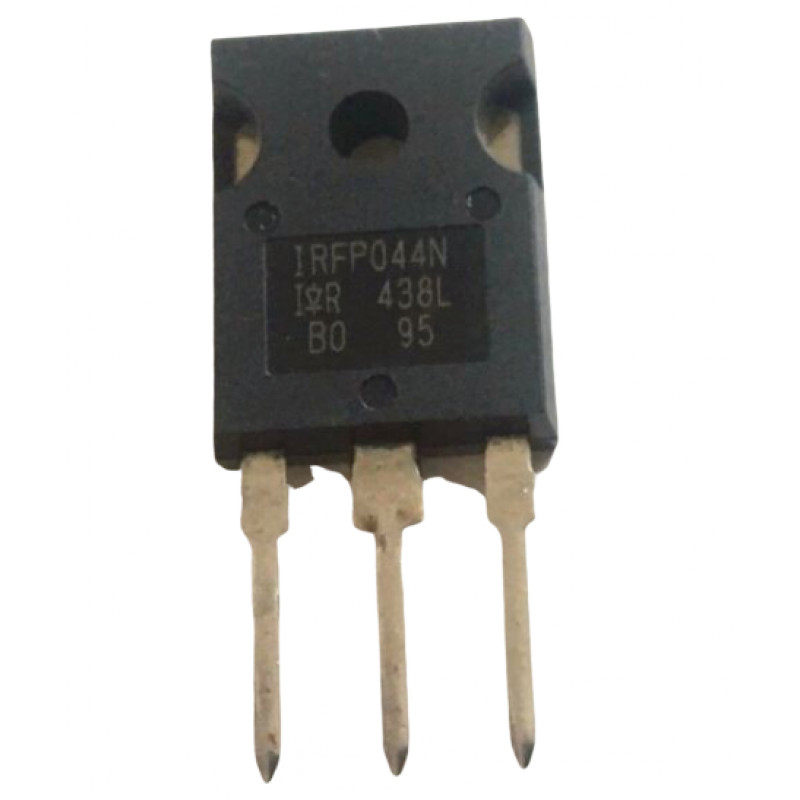

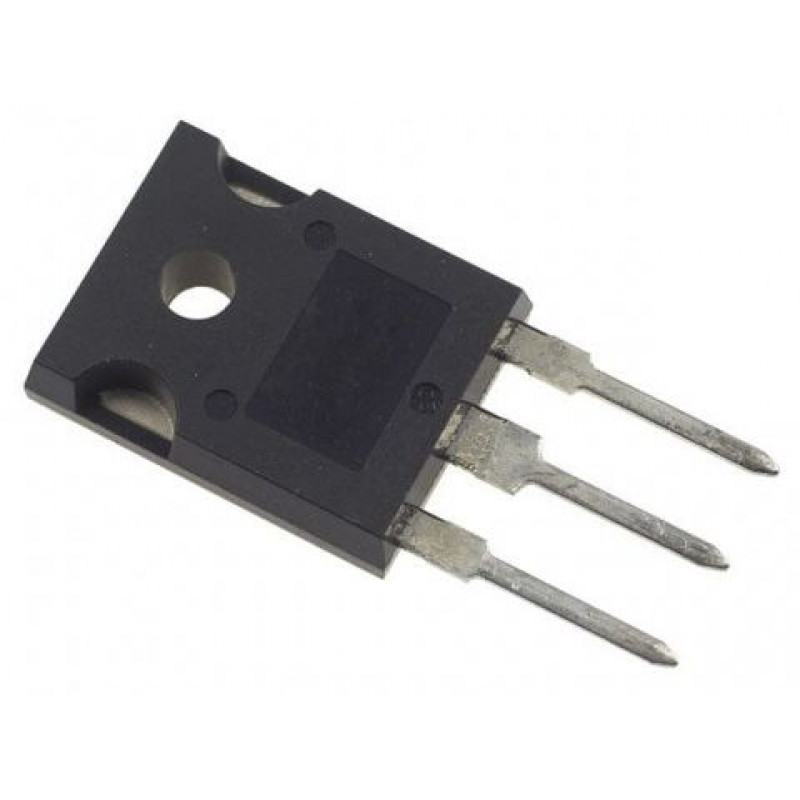

IRFP044N MOSFET - 55V 53A N-Channel HEXFET Power MOSFET TO-247 Package
- Product Code: EC-2229
- Availability: 23
-
Rs.165.00
- (Excluding 18% GST)
