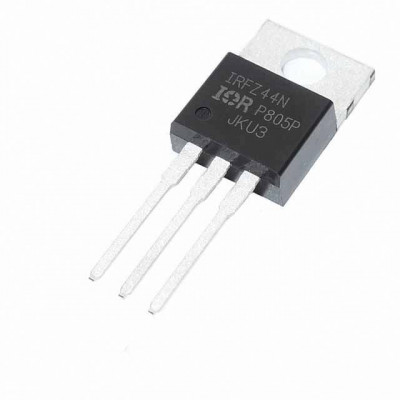

  • IRFZ44N MOSFET - 55V 49A N-Channel Power MOSFET TO-220 Package

IRFZ44N is specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.


• Advanced Process Technology

• Ultra Low On-Resistance

• 175°C Operating Temperature

• Fast Switching

• Repetitive Avalanche Allowed up to Tjmax

• Lead-Free, RoHS Compliant

Detailed Specifications:-

Number of Channels 1 Channel
Transistor Polarity N-Channel
Drain-Source Breakdown Voltage (Vds) 55V
Continuous Drain Current (Id) 49A
Drain-Source Resistance (Rds On) 0.0175Ohms
Gate-Source Voltage (Vgs) 20V
Gate Charge (Qg) 63 nC
Operating Temperature Range -55 - 175°C
Power Dissipation (Pd) 94W

Related Documents

 IRFZ44N MOSFET Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 23.01 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

IRFZ44N MOSFET - 55V 49A N-Channel Power MOSFET TO-220 Package

  • Product Code: EC-0304
  • Availability: 19363
  • Rs.19.50
  • (Excluding 18% GST)
