Key Specifications:-

  • Output Voltage          5V
  • Type                  DIN Rail Type
  • Approx. Wattage  15W
  • Features                  Standard,Voltage Adjustable
  • Series                  HDR (Ultra Slim)
  • Mechanical Form  Enclosed
  • Warranty                  3 Years Warranty
  • IP Level                  Non-Waterproof
  • Input Voltage          100-240V auto-select


Features:-

  • Plastic Case, Step Shape
  • 1, full range input
  • Compact size, 1SU~3SU width (DIN EN43880)
  • Isolation class II
  • DC output voltage adjustabl
  • No load power consumption <0.3W
  • Assemble on industrial rail TS-35 / 7.5 or 15
  • Suitable for building automation and control of household appliance


 Specifications:-

AC input voltage range85 VAC to 264 VAC, 120 VDC to 370 VDC
AC inrush current (max.) 0.88A/115VAC 0.48A/230VAC
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃) RH non-condensing
Overload protection Range110 ~ 160% rated output power
Overload protection TypeConstant current limiting with in 50% - 100%, rated output voltage, recovers automatically after fault condition is removed
Over voltage protection Range5.75 ~ 7.5V
Over voltage protection TypeProtection type : Shut down o/p voltage, repower on to recover
Withstand voltageI/P-O/P:3KVAC
Working temperature-30 ~ +70℃ (Refer to "Derating Curve")
Safety standardsUL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
EMC standardsEN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3
SETUP, RISE TIME
2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load
Dimension (LxWxH)35x90x54.5



Related Documents:-

 HDR-30 Datasheet

 HDR-30-5 Test Report

 CE Certificate (HDR-30)

 UL Certificate (HDR-30)

 CB Certificate (HDR-30)

 EMC Certificate(HDR-30)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

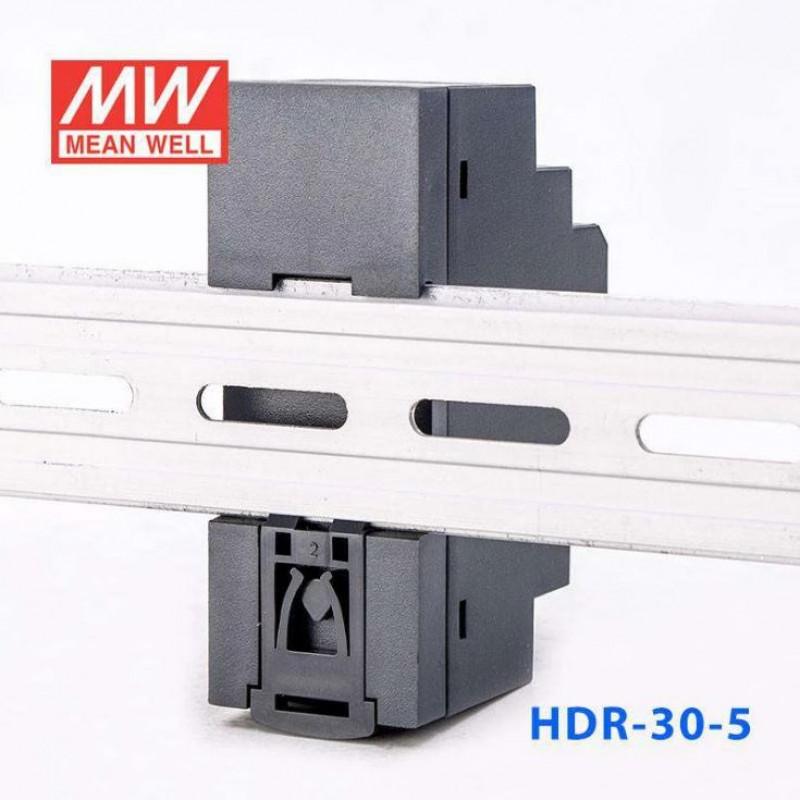

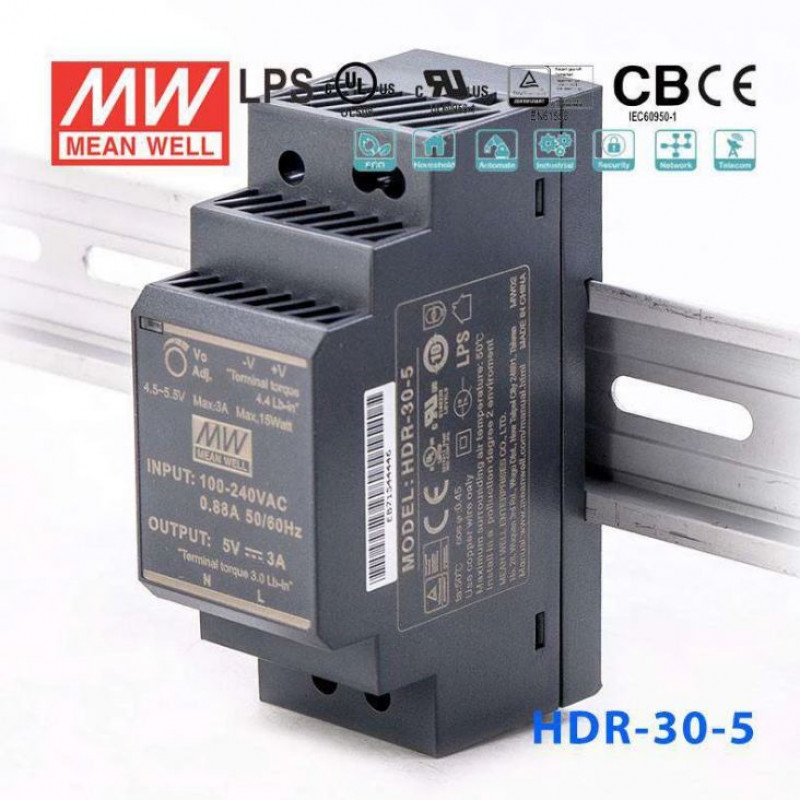

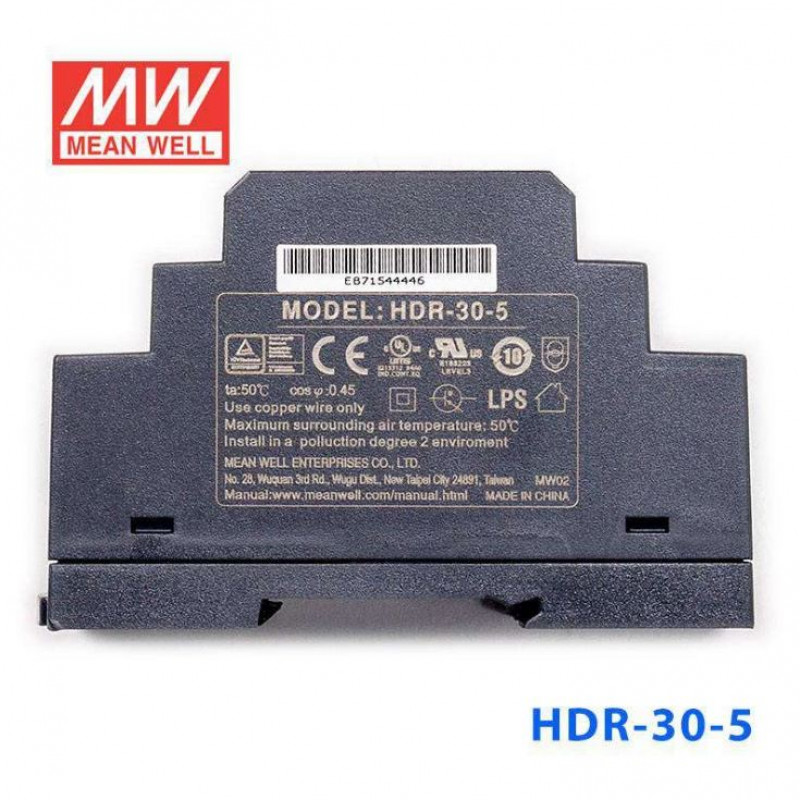

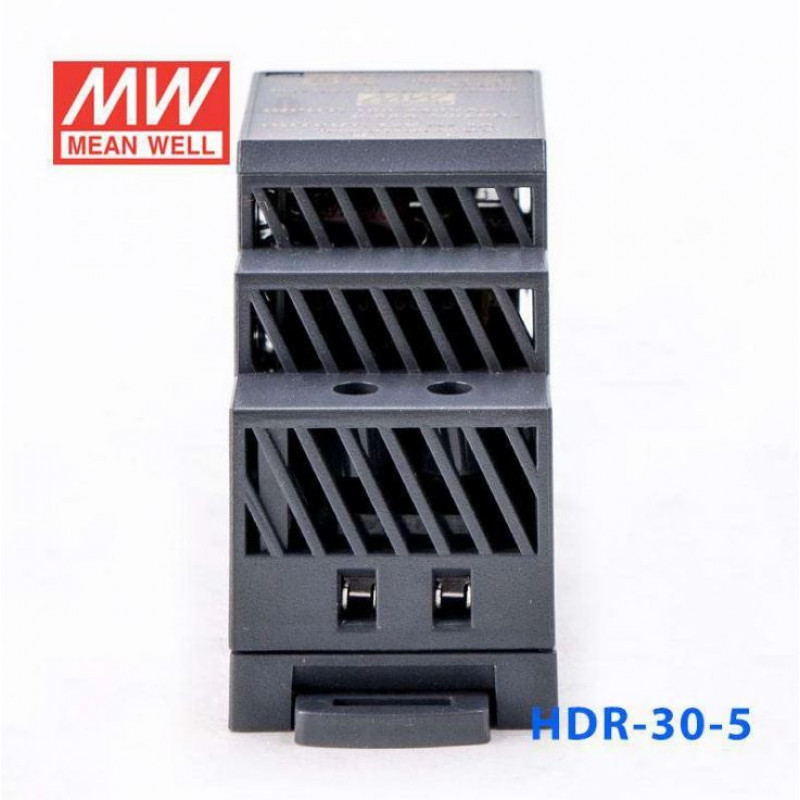

HDR-30-5 Mean well SMPS - 5V 3A 15W Din Rail Metal Power Supply

  • Product Code: EC-3619
  • Availability: 217
  • Rs.1295.00
  • (Excluding 18% GST)
