Key Specifications:-

  • Output Voltage         5V
  • Type                 DIN Rail Type
  • Approx. Wattage 60W
  • Features                 Standard,Voltage Adjustable
  • Series                 HDR (Ultra Slim)
  • Mechanical Form Enclosed
  • Warranty                 3 Years Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         100-240V auto-select


  • Plastic case, step shape
  • 1, full range input
  • Compact size, 1SU~3SU width (DIN EN43880)
  • Isolation class II
  • DC output voltage adjustable
  • No load power consumption <0.3W

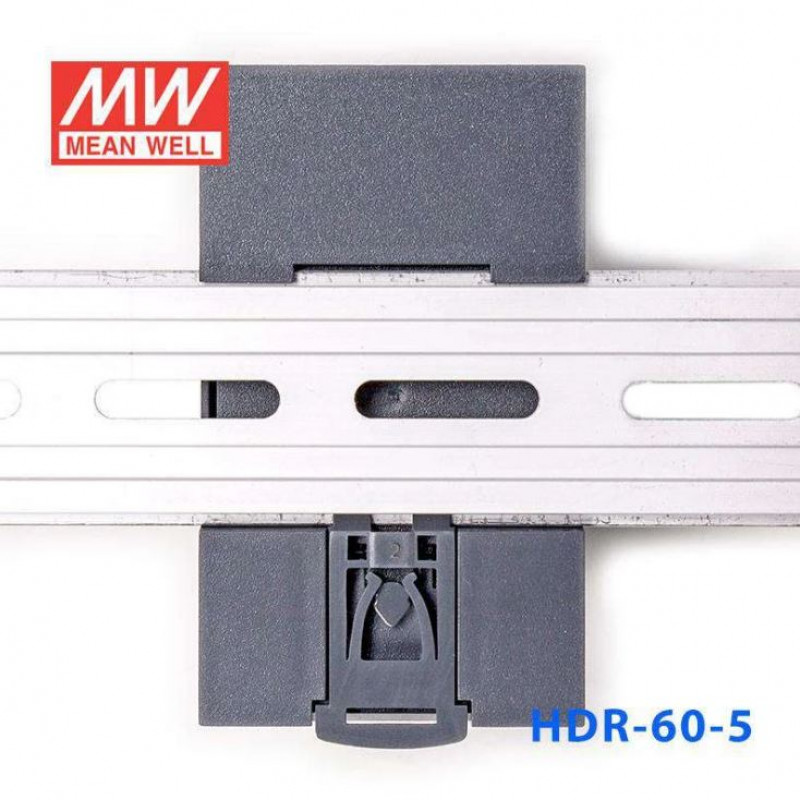

  • Assemble on industrial rail TS-35 / 7.5 or 15


AC input voltage range85 VAC to 264 VAC, 120 VDC to 370 VDC
AC inrush current (max.)COLD START 30A/115VAC 60A/230VAC
0.03%/ (0 ~ 50) RH non-condensing
Overload protection Range105 ~ 160% rated output power
Overload protection Type Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection Range5.75 ~ 6.75V
Over voltage protection Type: Shut down o/p voltage, re-power on to recover
Withstand voltageI/P-O/P:3KVAC
Working temperature30 ~ +70 (Refer to "Derating Curve")
Safety standardsUL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
EMC standardsEN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3
500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
Dimension (LxWxH)52.5x90x54.5

Related Documents:-

 HDR-60 Datasheet

 HDR-60-5 Test Report

 CE Certificate (HDR-60)

 UL Certificate (HDR-60)

 CB Certificate (HDR-60)

 EMC Certificate(HDR-60)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2358.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

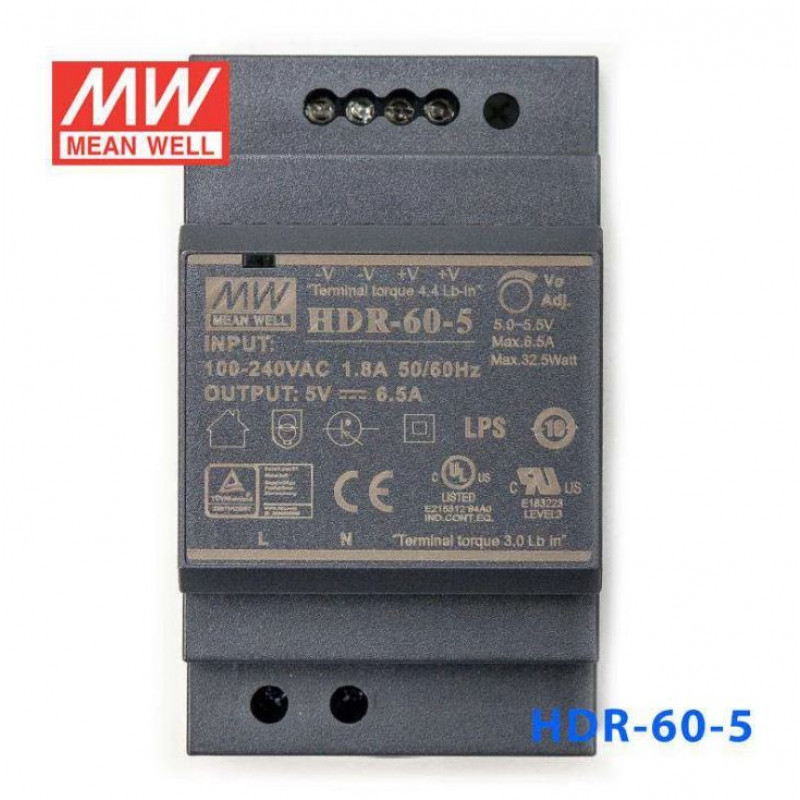

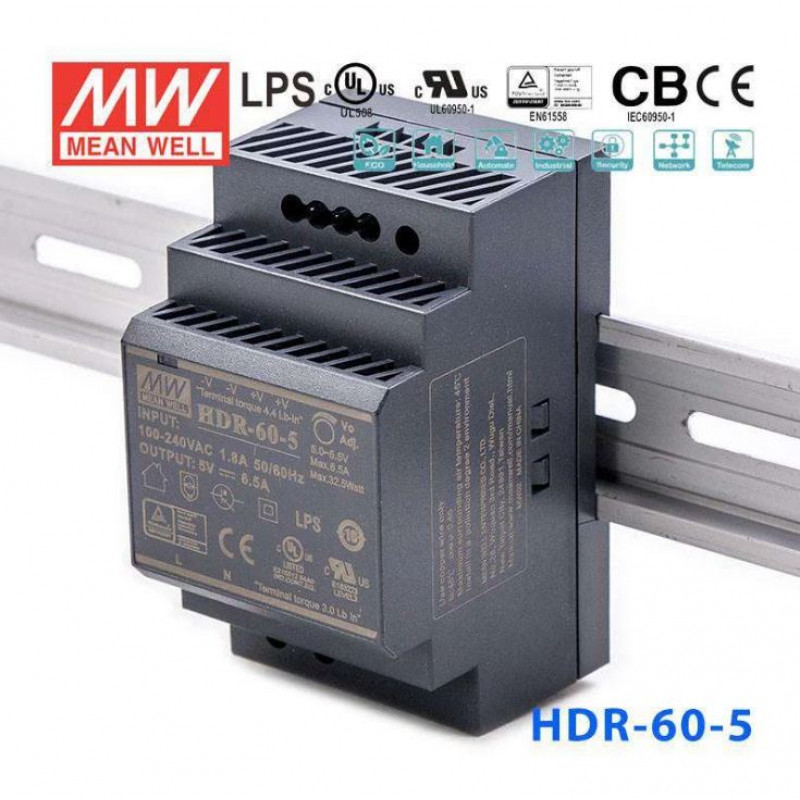

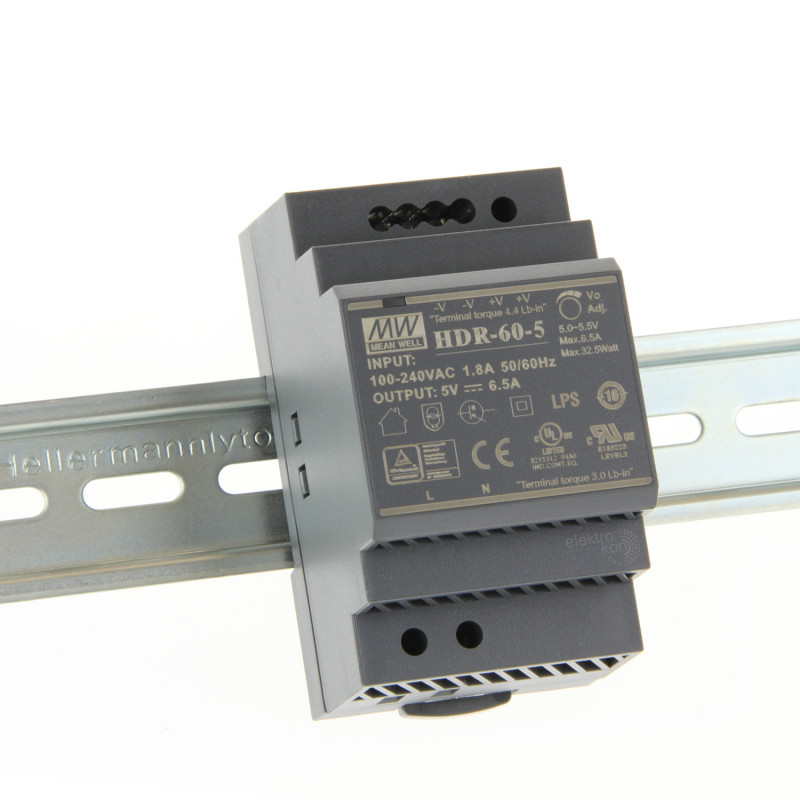

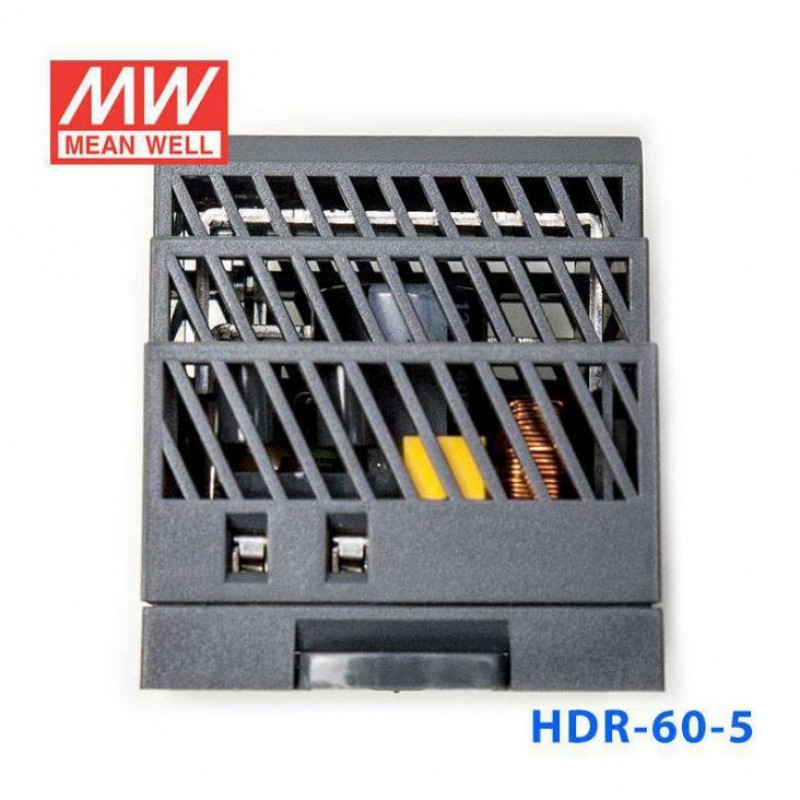

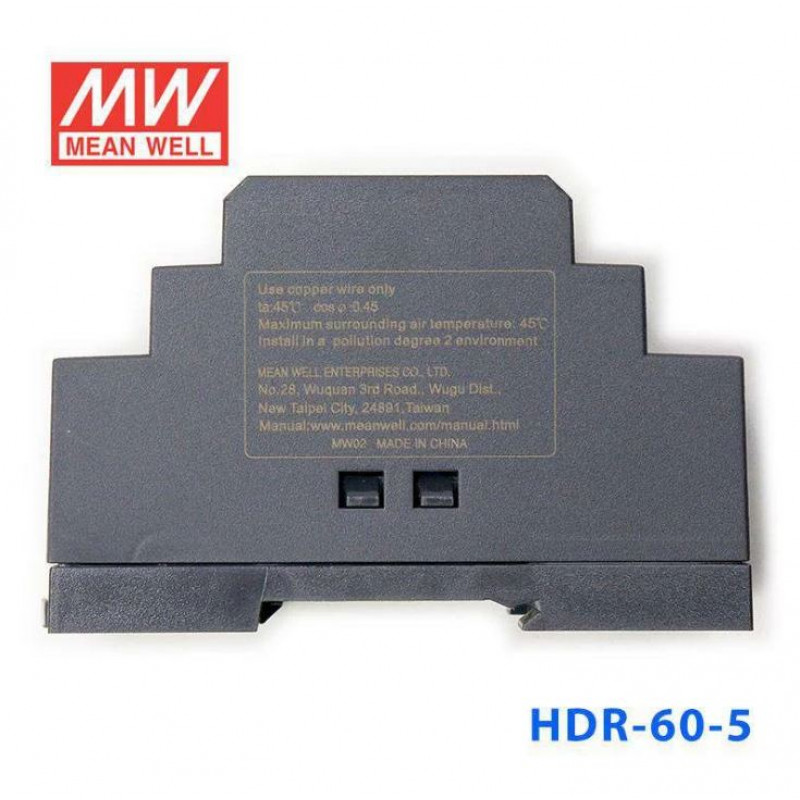

HDR-60-5 Mean well SMPS - 5V 6.5A 32.5W Din Rail Metal Power Supply

  • Product Code: EC-3623
  • Availability: 19
  • Rs.1999.00
  • (Excluding 18% GST)
