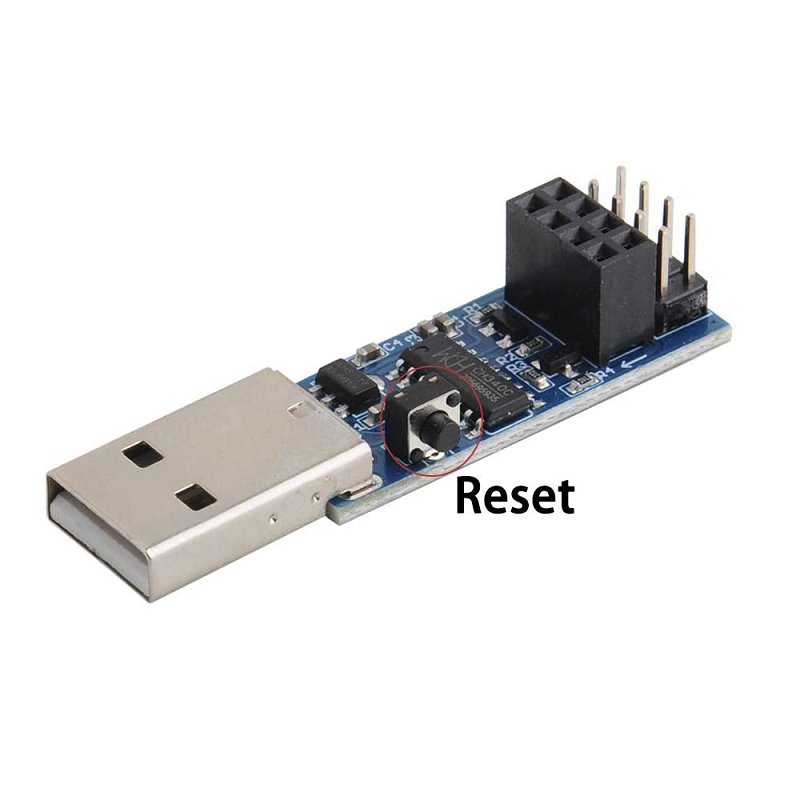

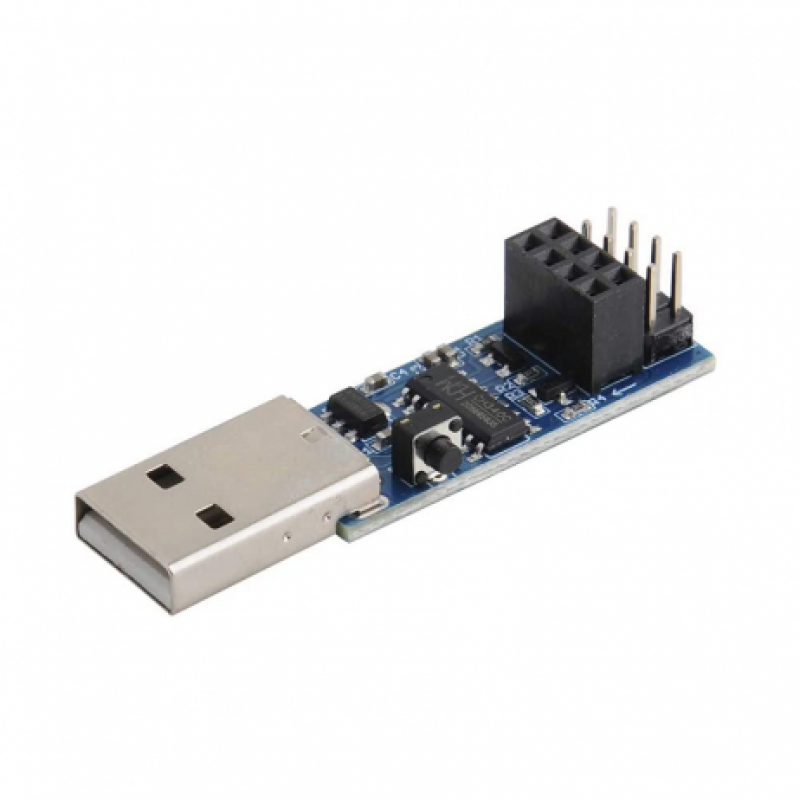

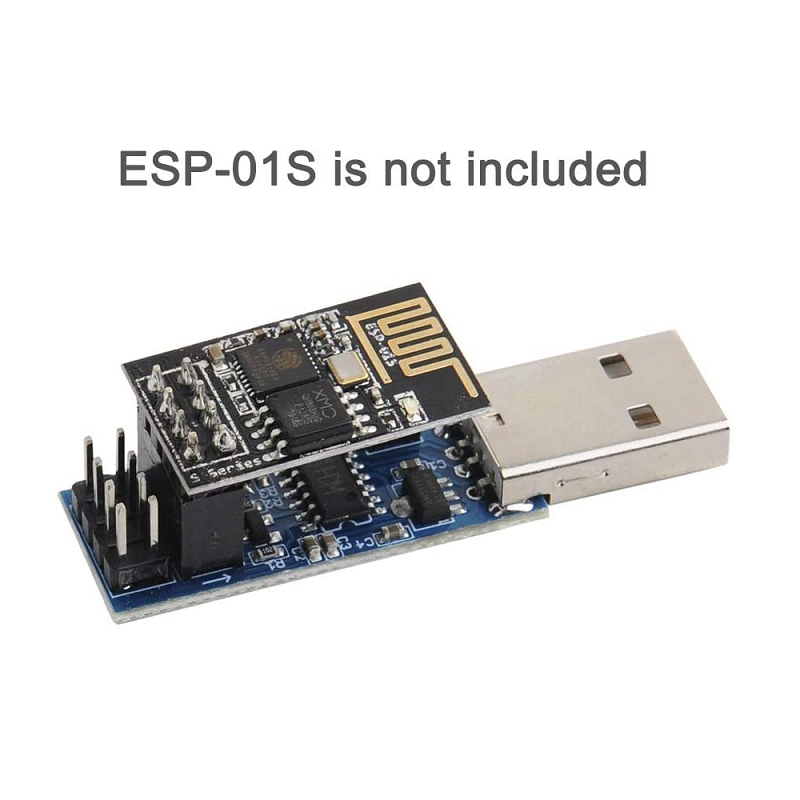

This is a downloader which adopts CH340G USB to Serial Chip and adds 8 self help download circuits, which is very convenient for users to download programs to ESP-01/01S wifi module, upgrade firmware, serial port AT command debugging, etc.
This module supports Arduino IDE, Anxin ESP8266 Flasher, and music One-Click download of software such as Xin Flash Download.
Features:
- No need to press any button
- The wifi module will automatically enter into download mode.
- Low cost and low price solution for rapid prototyping.
- Compact size, easy to embed in any product
Package Includes:
1 x CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S
Specifications :-
| Compatible With | ESP8266 ESP-01/01S |
| Operating Voltage | 5 VDC |
| USB to Serial Chip | CH340C |

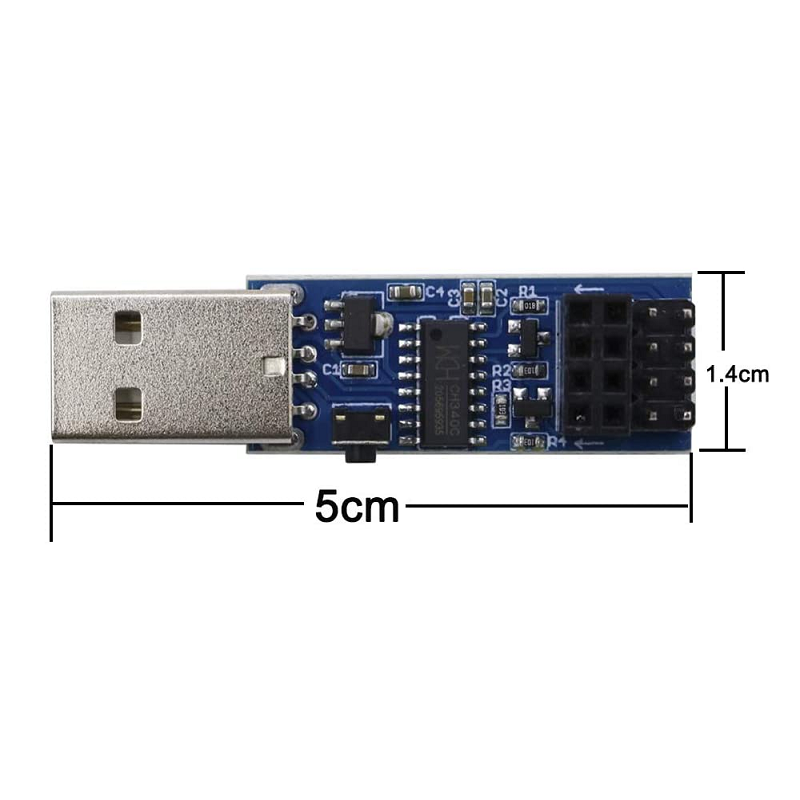

| Length (mm) | 50 |
| Width (mm) | 14 |
| Height (mm) | 12 |
| Weight (gm) | 6 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 194.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S
- Product Code: EC-6523
- Availability: 131
-
Rs.165.00
- (Excluding 18% GST)
