CH375 USB device mode is fully compatible with CH372, CH375 contains all the features of the CH372. Common CH375 USB host mode support USB full-speed device, the external microcontroller can through the CH375 in accordance with the USB protocol and USB device communication. CH375 firmware also built a dedicated protocol processing Mass-Storage mass storage devices, the external microcontroller can be directly used as the basic unit of reading and writing in sectors USB storage devices (including USB hard disk/USB flash drive/U disk).

CH375 with the 8-bit data bus and read, write, chip select control lines and interrupt output can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller. USB host mode, CH375 also provides serial communication via serial input, serial output, and interrupt output monolithic/DSP/MCU/MPU connected.


Specifications and Features :

  1. CH375B with the 8-bit data bus and read, write, chip select control lines and interrupt output can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller.
  2. USB host mode, CH375B provides serial communication via serial input, serial output, and interrupt output monolithic/DSP/MCU/MPU connected.
  3. 28 connector, easy with the MCU mount.
  4. Jumper selectable can work in parallel or serial mode.
  5. USB status indicator.
  6. On board 3.3 V LDO 1117, provides 800 mA current.
  7. Color: Blue


Package includes :

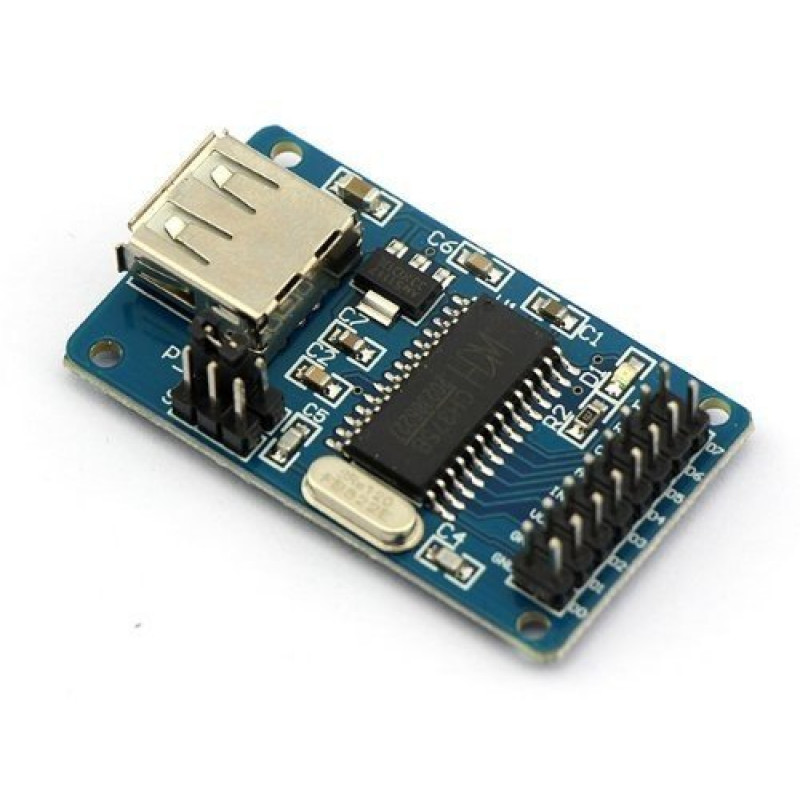

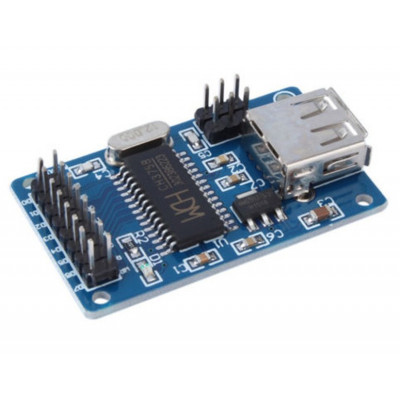

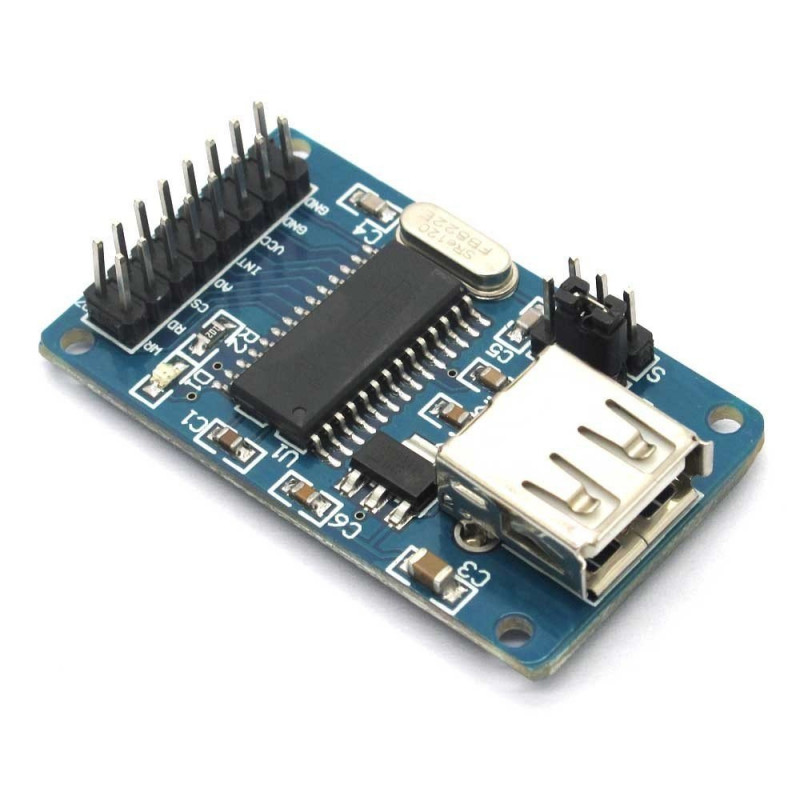

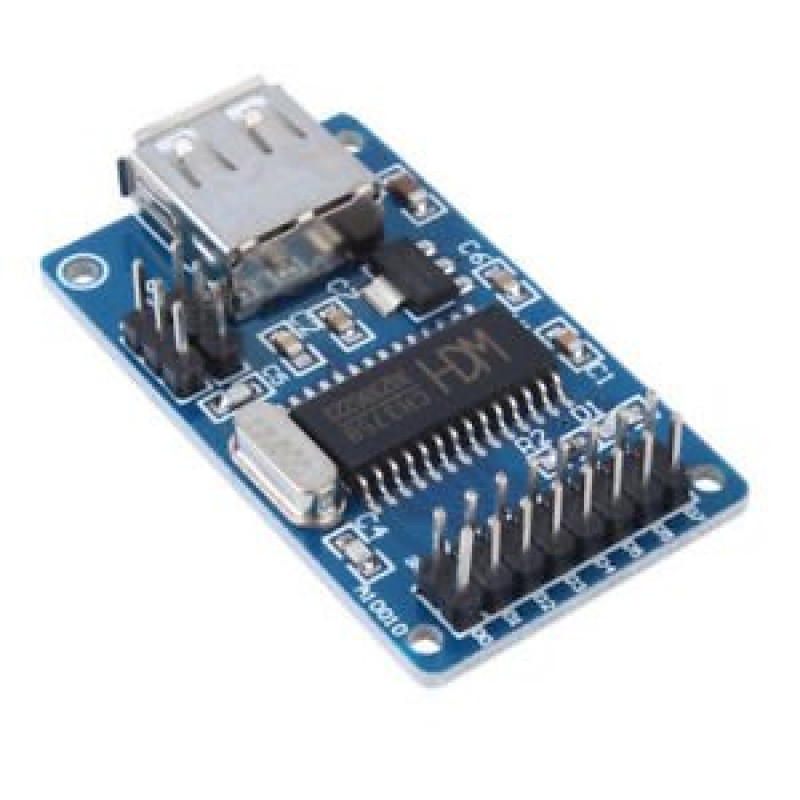

1 x CH375B USB Disk Read-write Module USB Flash Disk For Arduino



Specifications :-

IC Chip

CH375B

LDO

3.3V

Input Voltage Range(VDC)

5

Crystal

12 MHz

PCB Size ( L x W ) mm

48 x 28

Weight (gm)

6

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 501.5 (Inclusive of all Taxes)
