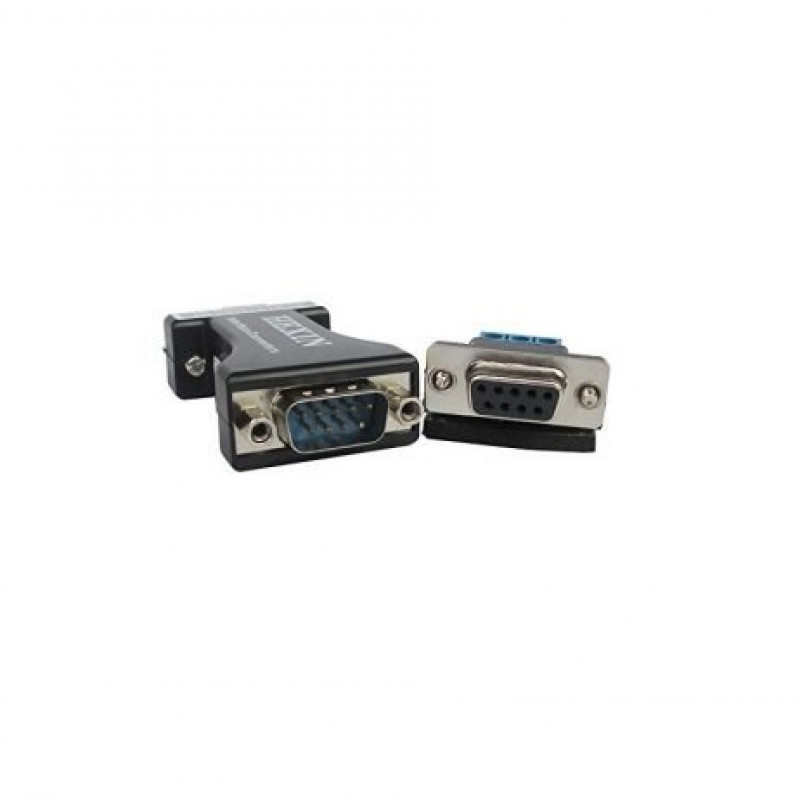

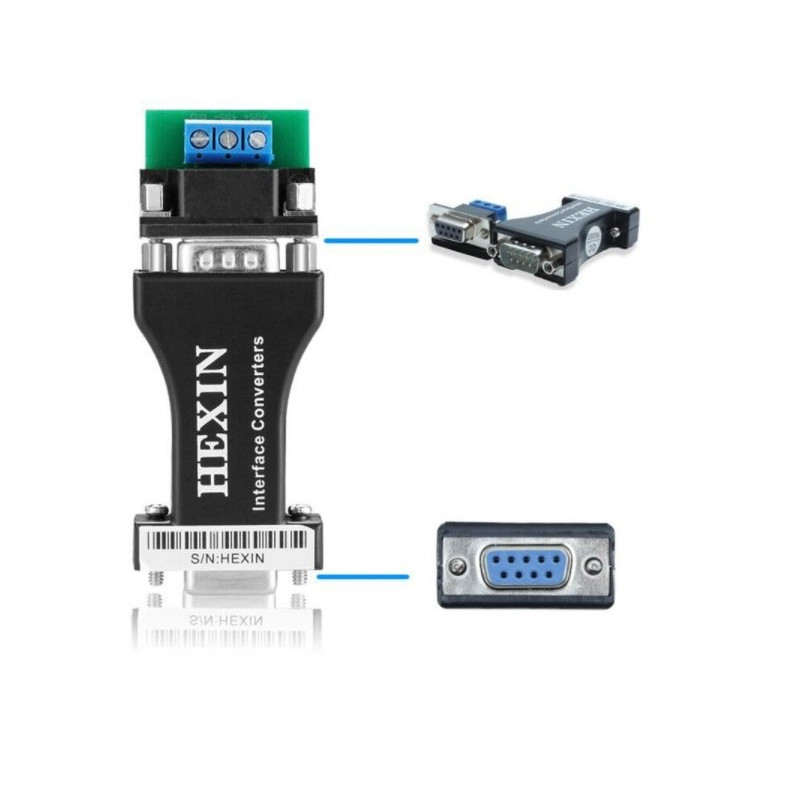

HEXIN RS232 to RS485 serial port Data interface adapter Converter . It has electronic Interface At the side of RS-232 is a DB9 female(hole-type) connector and at the side of RS-485 is a DB9 male (needle-type) connector with connection board. It has Transmission Speed of 300-115200 bps. Common wire, doule wire, UTP or Shielding Line are used as a transmission Media.
Features:
- Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard
- Working Modes: Asynchronous, half-duplex, differential transmission
- Work Environment: -10C to 85C, relative humidity 5% to 95%
- Transmission Distance: 1.2 mile (RS-485), 5 meters(RS-232)
- Transmission Speed: 300-115200 bps
- Transmission Media: Common wire, doule wire, UTP or Shielding Line
- Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard
Package Includes:
1 x RS-232 to RS-485 adapter
1x 3 poles connection board
1 x Users Guide in English.
Specifications :-
| Working Modes | Asynchronous, half-duplex, differential transmission |
| Work Environment | -10C to 85C |
| Relative humidity | 5% to 95% |
| Transmission Distance | 1.2 mile (RS-485), 5 meters(RS-232) |
| Transmission Speed | 300-115200 bps |
| Transmission Media | Common wire, double wire, UTP or Shielding Line |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 572.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HEXIN RS232 to RS485 serial port Data interface adapter Converter
- Product Code: EC-6539
- Availability: 112
-
Rs.338.00
- (Excluding 18% GST)
