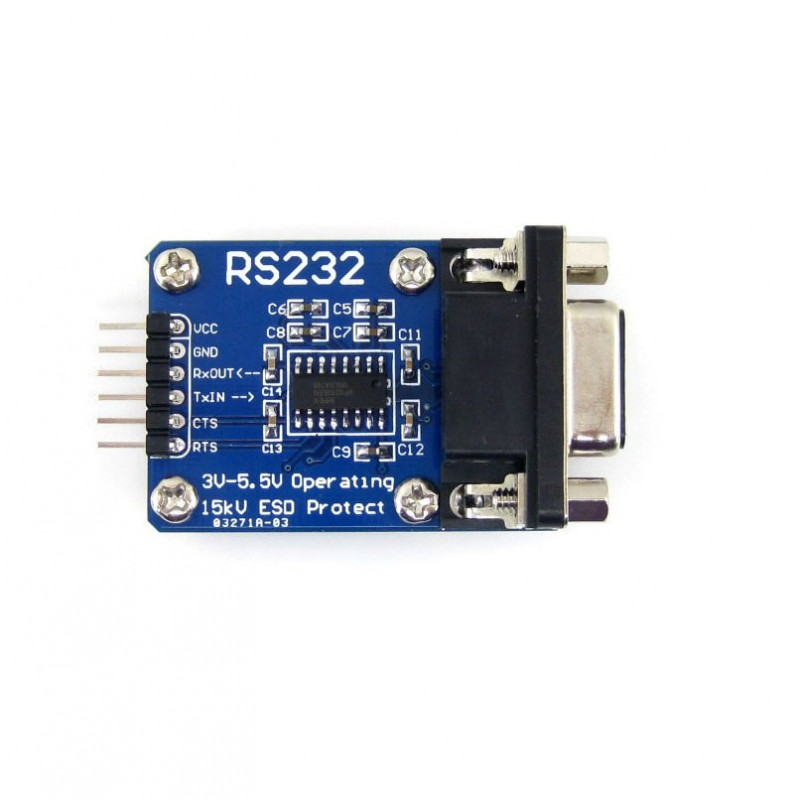

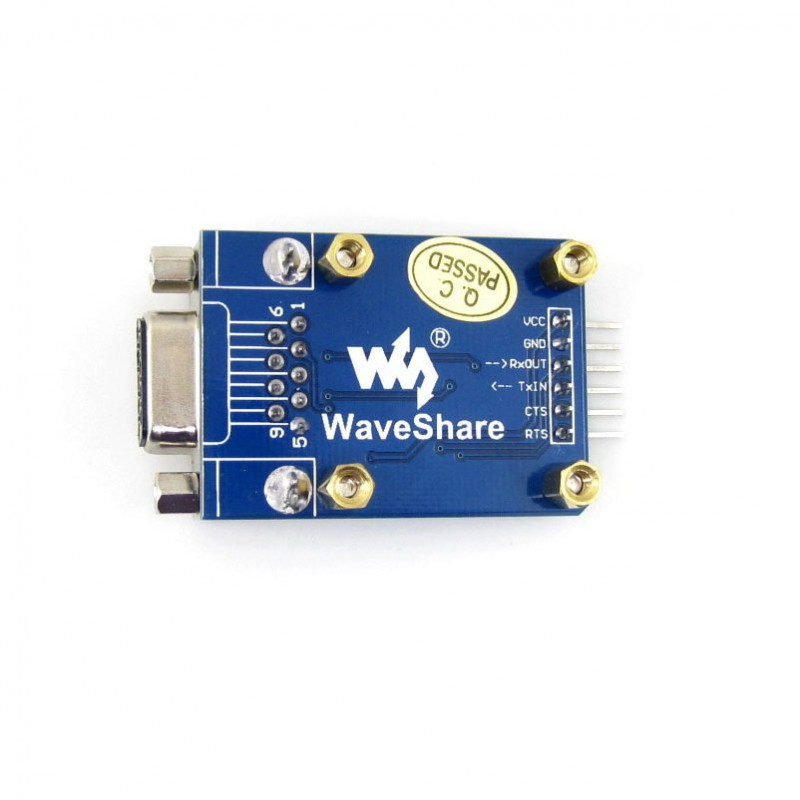

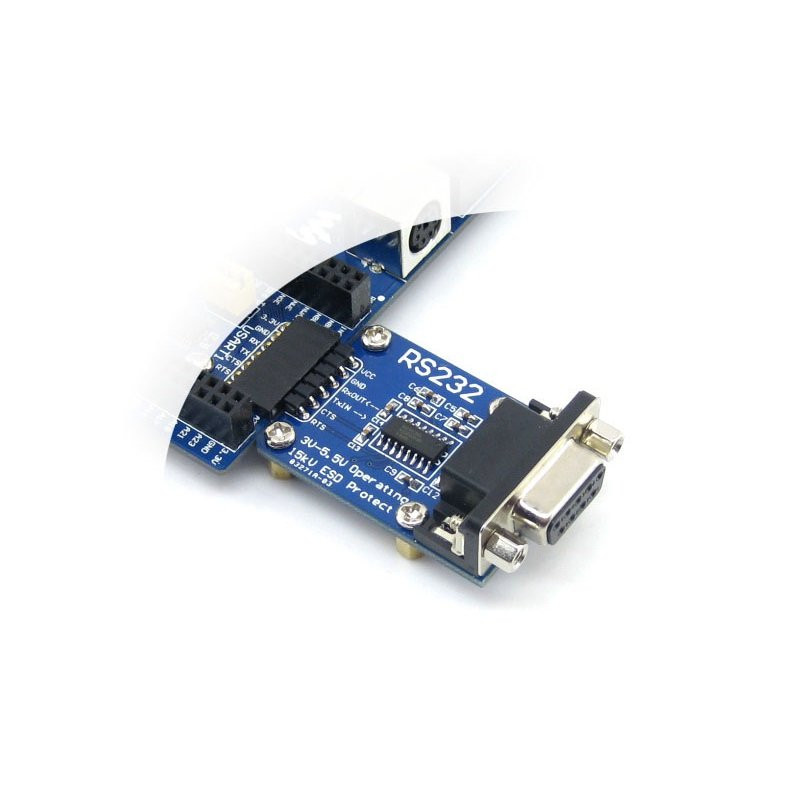

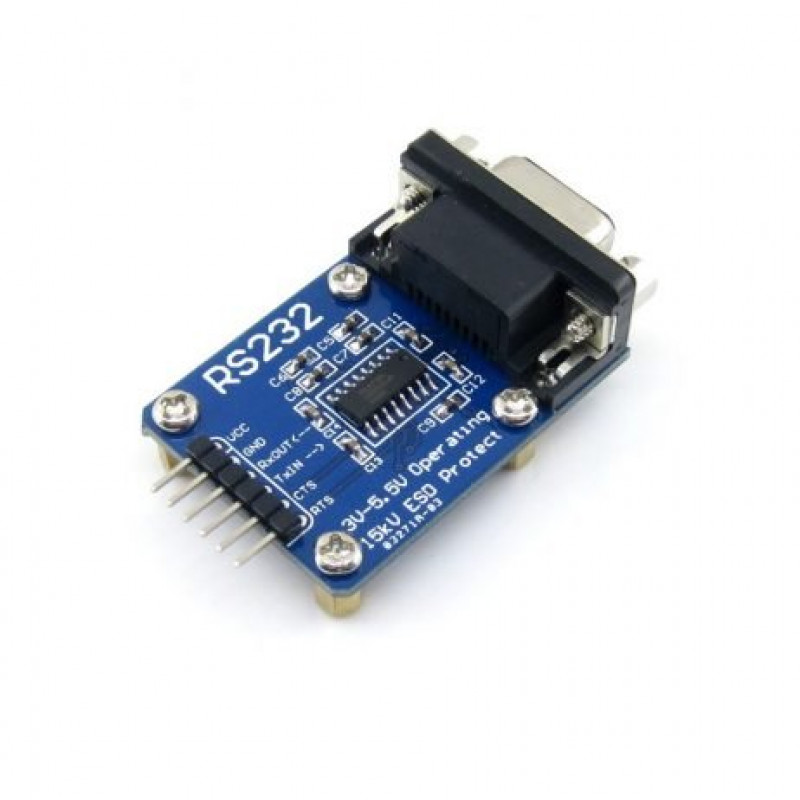

The RS232 Board is used for establishing RS232 communication with devices powered from 3V 5.5V. It contains SP3232 (RS-232 Transceiver) and DB9 connector used for connecting PC and MCU. The RS232 Board features ESD protection and supports hardware flow control.

The SP3222E/3232E series is an RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3222E/3232E series has a high-efficiency, charge-pump power supply that requires only 0.1F capacitors in 3.3V operation. This charge pump allows the SP3222E/3232E series to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V.


Features:

  1. SP3232(RS232)
  2. DB9 connector
  3. UART port

Package Includes:

1 x RS232 to TTL SP3232 UART Transceiver Communication Serial Module

1 x 6-pin custom connector jumper wire



Specifications :-

IC Chip

SP3232E

Operating Voltage

DC 3.0~5.5 V

Length (mm)

45

Width (mm)

25

Height (mm)

2

Weight (gm)

18

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 506.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

RS232 to TTL SP3232 UART Transceiver Communication Serial Module

  • Product Code: EC-6550
  • Availability: 66
  • Rs.245.00
  • (Excluding 18% GST)
