RS422 interface, two-way communication. B Y Z A ultra far transmission 1000 meters. The module has ESD 15KV protection. Onboard to increase the limit of 10 ohms current limiting current protection. Module with TVS diode. Anti lightning, peak voltage. The module has 120-ohm termination resistors, which can effectively reduce the interference of long-range communication. Have the power indicator light and the data receiving and sending indicator light. Panoramic view of state data. Module TTL side using 5V DC power supply TXD RXD compatible with 5V logic signal.

The module uses the original imported MAX490 chips, stability, and communication speed is far more than domestic products, up to 2.5MBPS.


Features:

  1. RS422 interface, two-way communication. B Y Z A ultra far transmission 1000 meters
  2. The module has ESD 15KV protection.
  3. Onboard to increase the limit of 10 ohms current limiting current protection.
  4. Module with TVS diode. Anti lightning, peak voltage.
  5. The module has 120-ohm termination resistors, which can effectively reduce the interference of long-range communication.
  6. Have the power indicator light and the data receiving and sending indicator light. Panoramic view of state data.
  7. Module TTL side using 5V DC power supply TXD RXD compatible with 5V logic signal.
  8. The module uses the original imported MAX490 chips, stability and communication speed is far more than domestic products, up to 2.5MBPS.

Package Includes:

1 x RS422 to TTL Power Supply Converter Board


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 241.9 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

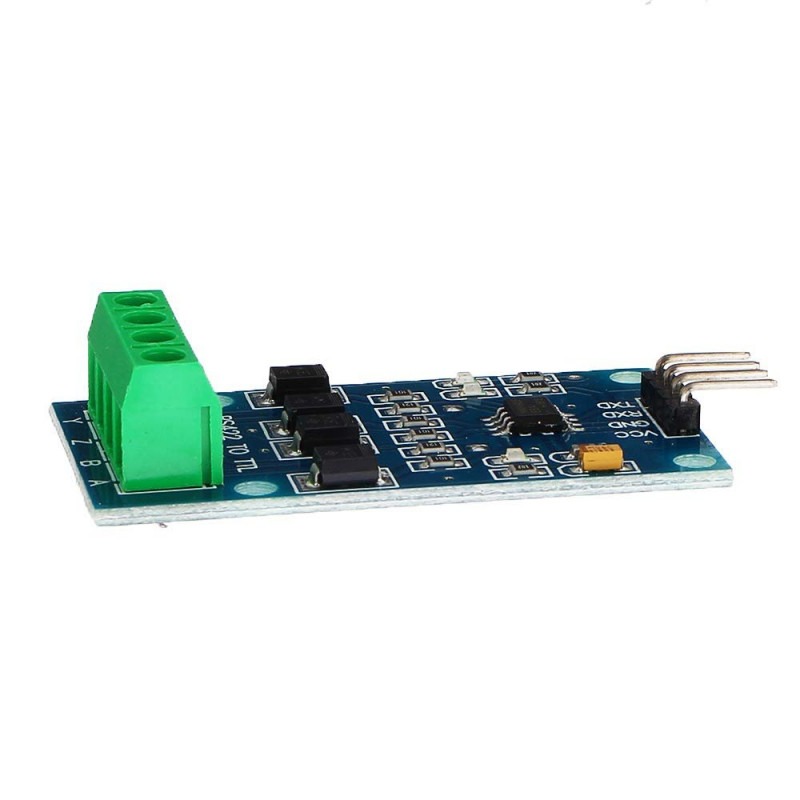

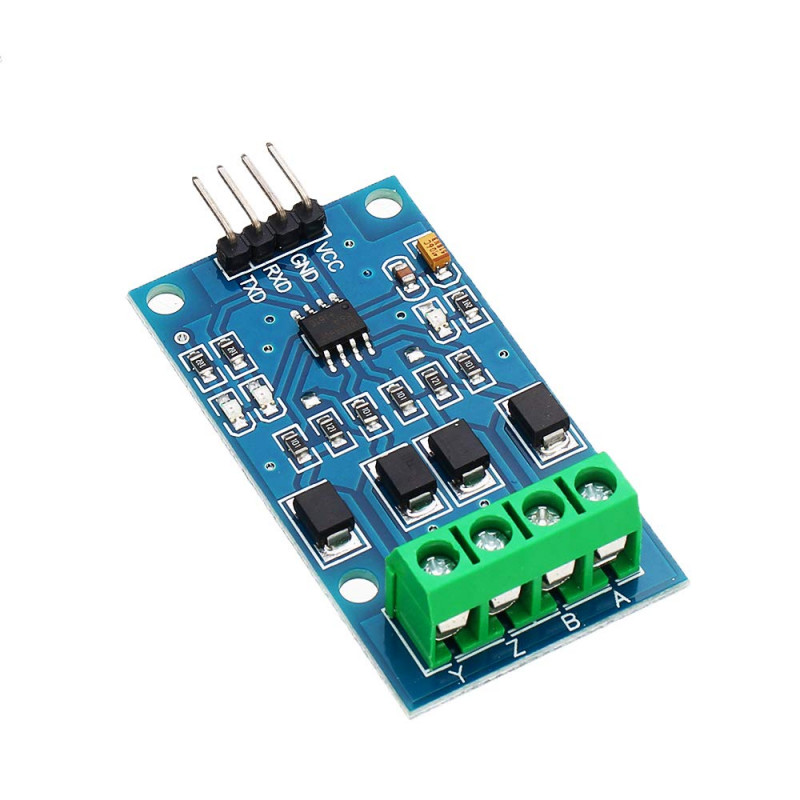

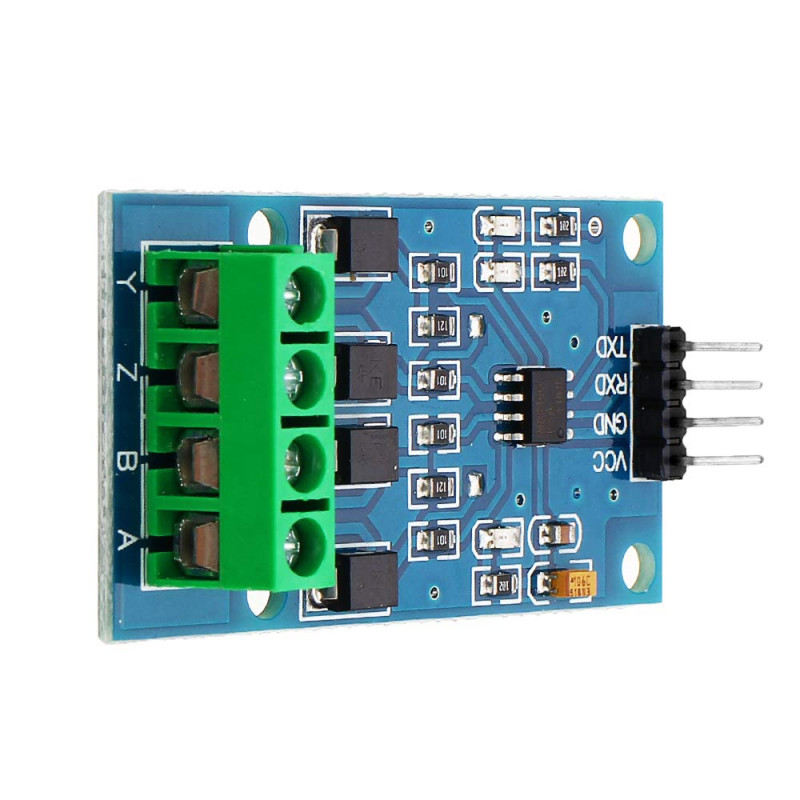

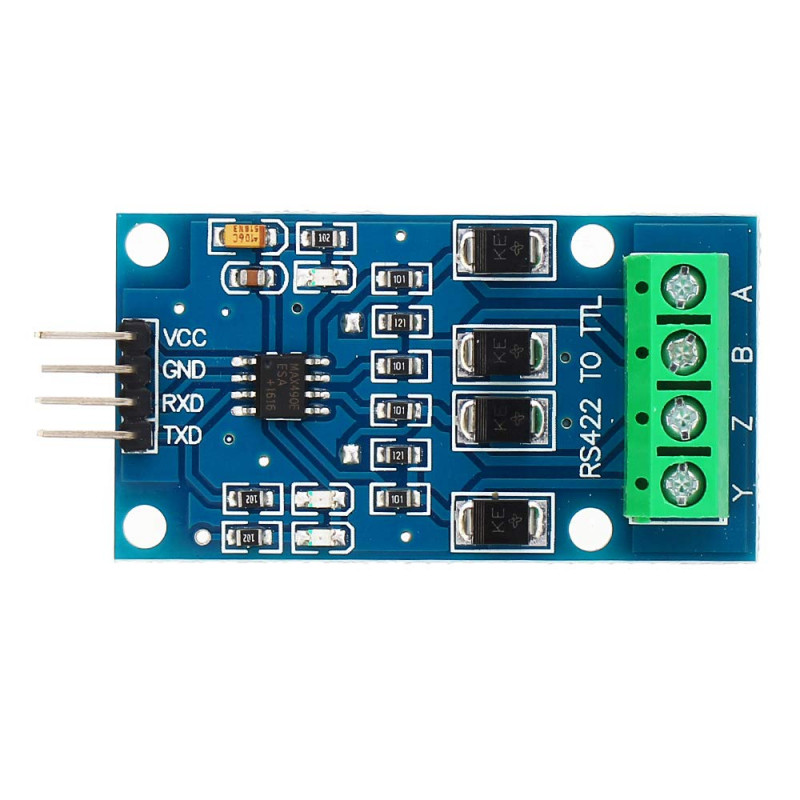

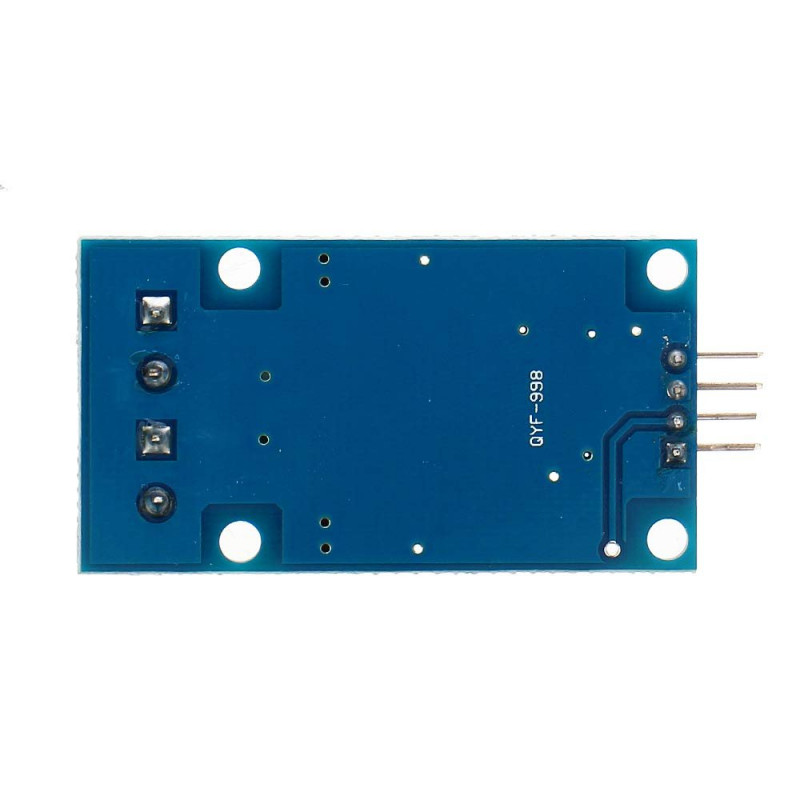

RS422 to TTL Power Supply Converter Board

  • Product Code: EC-6551
  • Availability: 436
  • Rs.175.00
  • (Excluding 18% GST)
