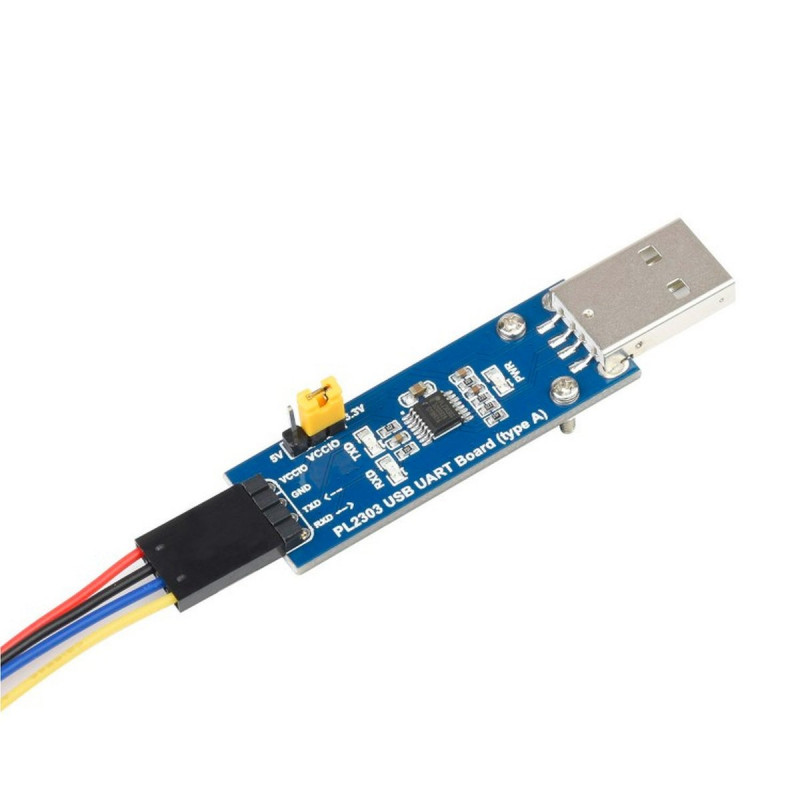

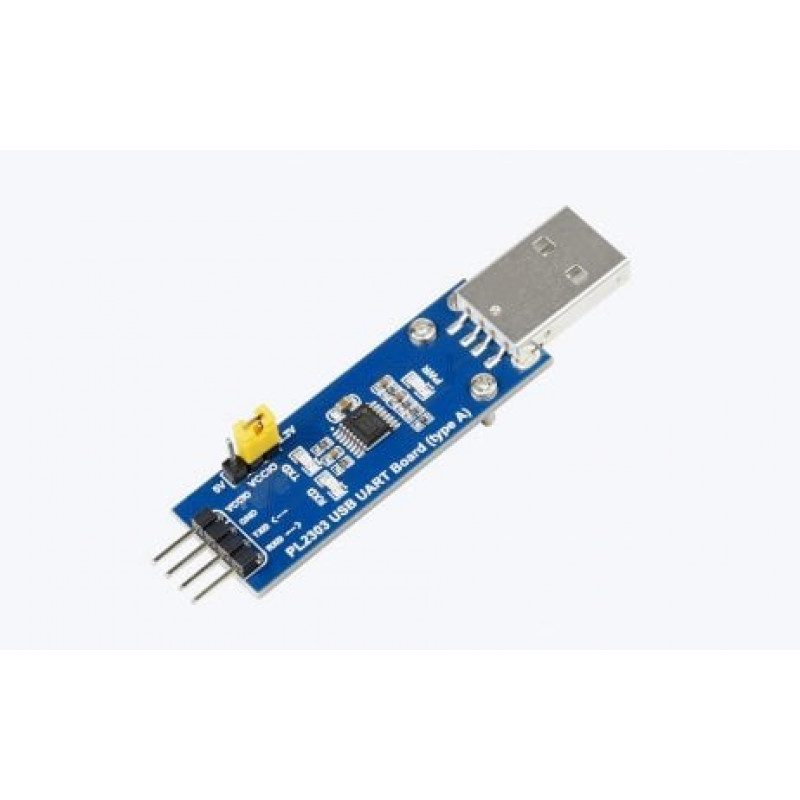

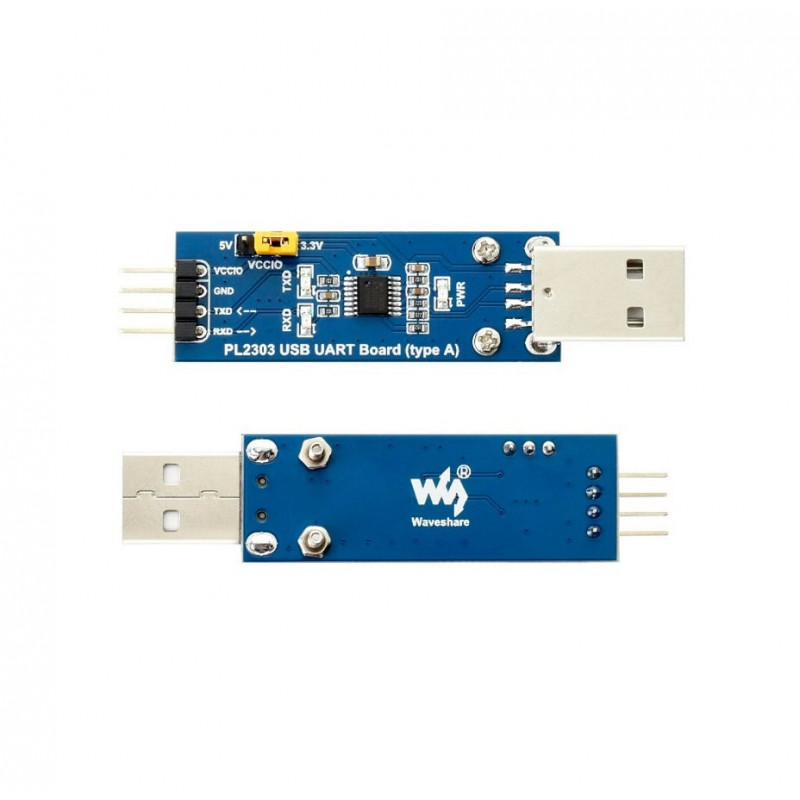

This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port.
Pinout:
- VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
Features:-
- Adopts PL2303GS new version device
- Supports windows XP/7/8/10/11/…
- 3x VCCIO power mode via jumper setting:
- VCCIO – 5V: 5V output
- VCCIO – 3.3V: 3.3V output
- open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
- 3x LED indicators: TXD, RXD, PWR
Specifications:-
- Operating Voltage(V) : 3.3 to 5
- No. of Pins : 4
- Supports OS : Win XP/7/8/10/11 and abobe
Package Includes:-
- 1 x PL2303 USB UART Board (type A) V2
- 1 x 4-pin custom connector jumper wire x 1
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 453.12 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector
- Product Code: EC-17577
- Availability: 9
-
Rs.246.00
- (Excluding 18% GST)
