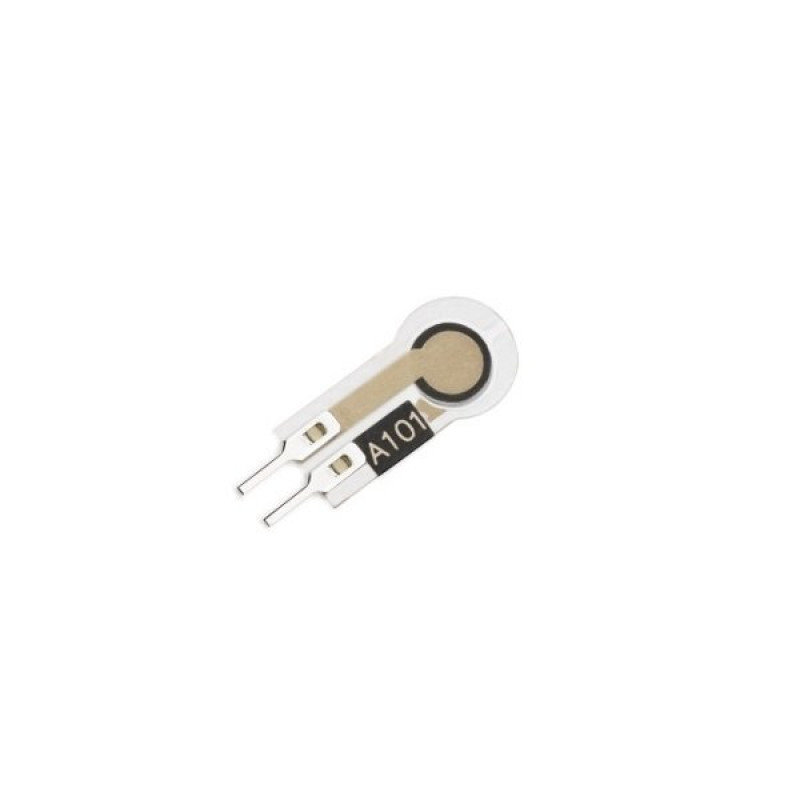

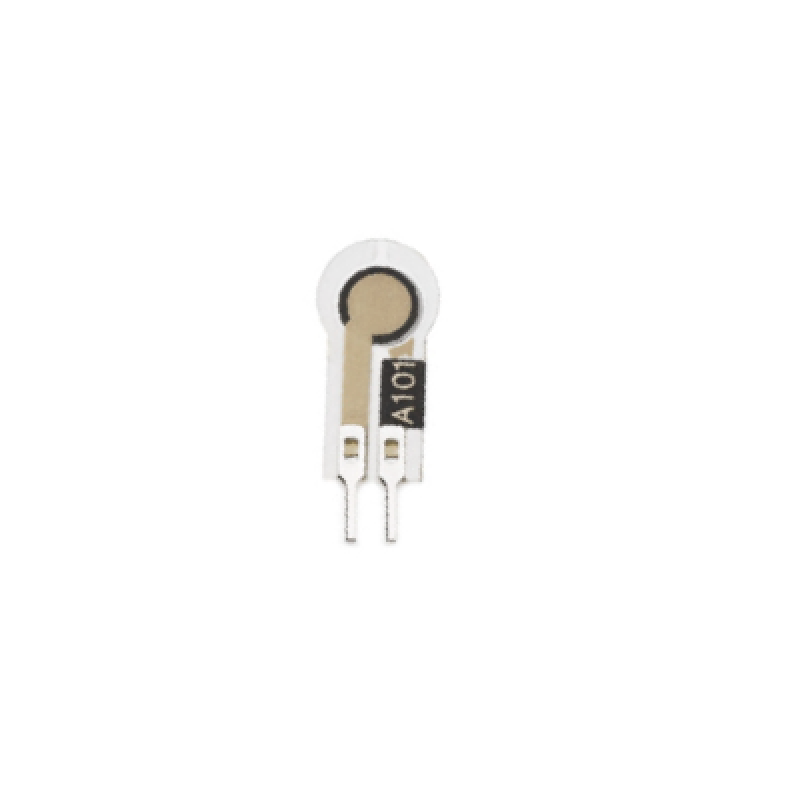

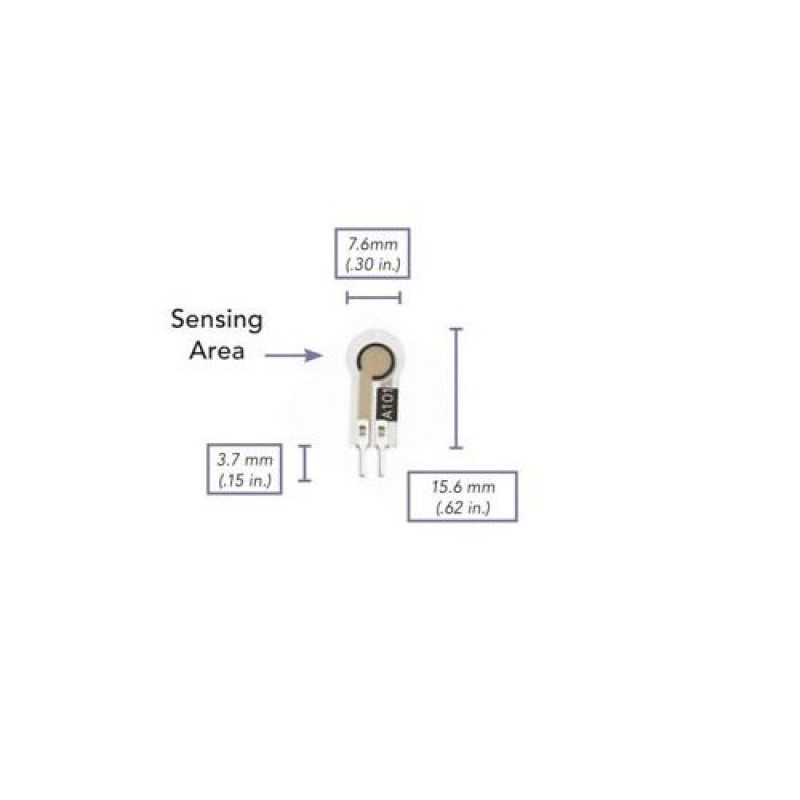

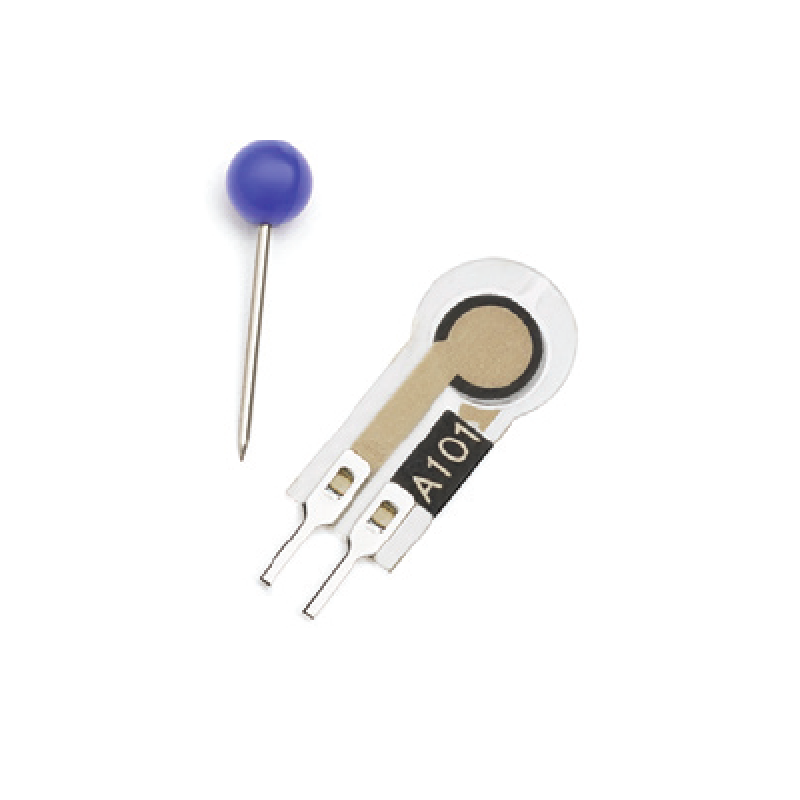

The A101 is our smallest sensor optimized for high volume manufacturing and ideal for embedding into products. The 2-pin sensors are currently our smallest standard sensor.

The sensors can measure up to 10 lbs. The dynamic range of this mini force sensor can be modified by changing the drive voltage and adjusting the resistance of the feedback resistor


Applications:
  1. Testing and Measurement Equipment
  2. Embedded Electronics
  3. OEM Development Kit
  4. Consumer Electronics
  5. Multimeter

How to Adjust the Force Range:

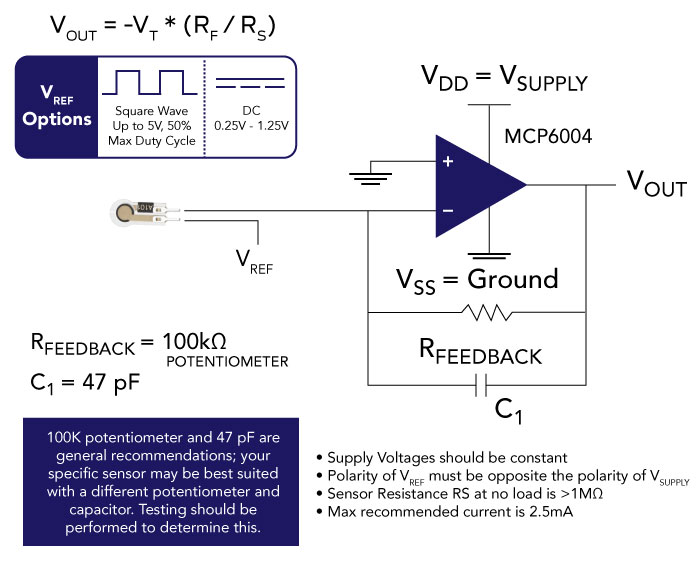

In order to measure higher forces, apply a lower drive voltage (-0.5 V, -0.25 V, etc.) and reduce the resistance of the feedback resistor (1k min.) To measure lower forces, apply a higher drive voltage and increase the resistance of the feedback resistor.



Sensor resistance measured 20 seconds after applied load

Sensor was not attached to any drive circuitry


Typical Performance:

Linearity (Error):< 3% of Full Scale (Line drawn from 0 to 50% load)

Repeatability:< 2.5%(Conditioned Sensor, 80% of Full Force Applied)

Hysteresis:< 4.5 % of Full Scale (Conditioned Sensor, 80% of Full Force Applied)

Drift:<5% / logarithmic time (Constant Load of 25 lb (111 N))

Response Time:< 5 sec (Time required for the sensor to respond to an input force; Impact load recorded on Oscilloscope)

Operating Temperature:-40C 60C (-40F 140F)*

* Force reading change per degree of temperature change = 0.36%/C (0.2%/F)


Package Includes:

1 x FlexiForce A101 Force Sensor


Specifications :-

Force Range

0-44N(0 4.5 Kg)

Length ( cm )

15.6 mm

Width (mm)

7.6

Thickness (mm)

0.203

Connector

2-pin Male Square Pin

Sensing Area (mm)

3.8

Pin Spacing (mm)

2.54

Surface Layer

Polyester

Operating Voltage (VDC)

0.25 ~ 1.25

Max Current (A)

0.2

Drift

< 5% per logarithmic time scale

Hysteresis

< 4.5 % of full scale

Linearity (Error)

< 3% of full scale

Operating Temperature Range (C)

-40 to 60

Repeatability

< 2.5%

Response Time ( S)

5

RoHS Compliant

Yes


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 612.42 (Inclusive of all Taxes)
