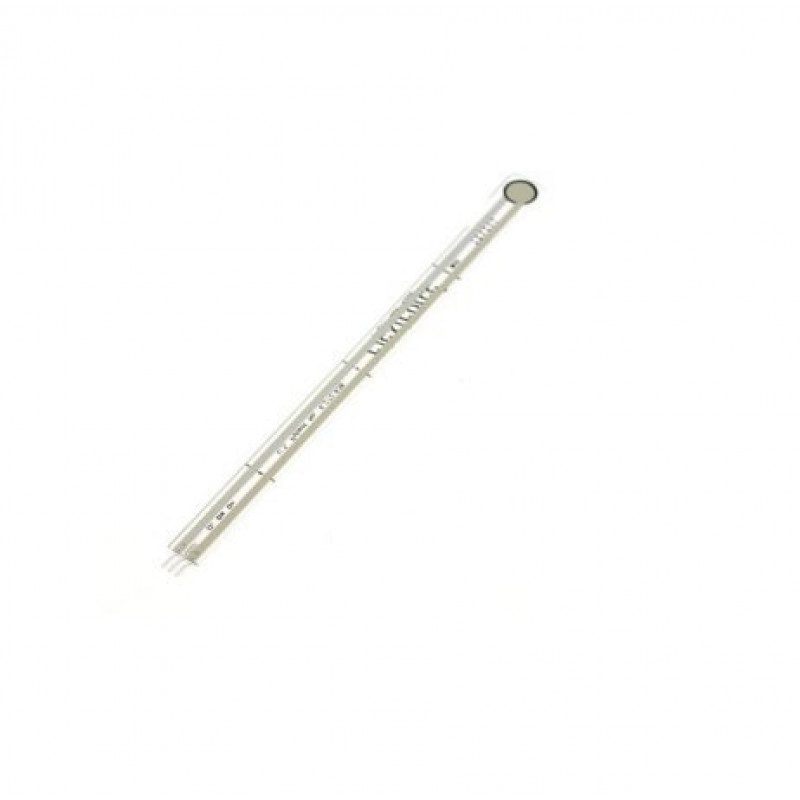

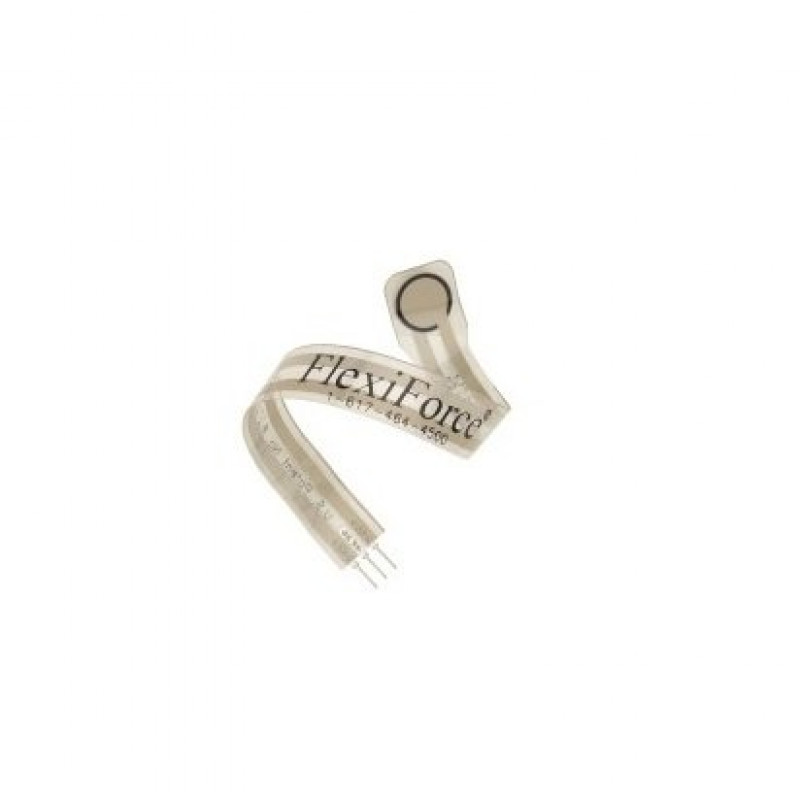

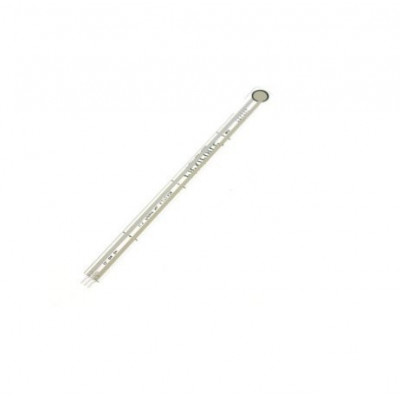

This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensors resistance. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor.

The sensor has a force range of 0 100 lb. The force ranges stated are approximations. In order to measure forces above 100 lbs (up to 1000 lbs), apply a lower drive voltage, and reduce the resistance of the feedback resistor.

FlexiForce sensors are compared to other force sensors more linear, have less drift, have better rehabilitation, have wider range, and are less sensing area dependent.

Applications

1. Testing and Measurement Equipment
2. Embedded Electronics
3. OEM Development Kit
4. Consumer Electronics
5. Multimeter

Typical Performance

Linearity (Error):< 3% of Full Scale (Line drawn from 0 to 50% load)

Repeatability:< 2.5% (Conditioned Sensor, 80% of Full Force Applied)

Hysteresis:< 4.5 % of Full Scale (Conditioned Sensor, 80% of Full Force Applied)

Drift:<5% / logarithmic time (Constant Load of 25 lb (111 N))

Response Time:< 5 sec (Time required for the sensor to respond to an input force; Impact load recorded on Oscilloscope)

Operating Temperature: -40C 60C (-40F 140F)

Features:

1. Thin and flexible
2. Easy to use
3. Convenient and affordable

Package Includes:

1 x FlexiForce A201-100 Force Sensor

Specifications :-

Thickness	0.203 mm
Length	191 mm
Width	14 mm
Sensing Area diameter	9.53 mm
Connector	3-pin Male Square Pin (center pin is inactive)
Substrate	Polyester
Pin Spacing	2.54 mm
Operating Temperature	-40C 60C
