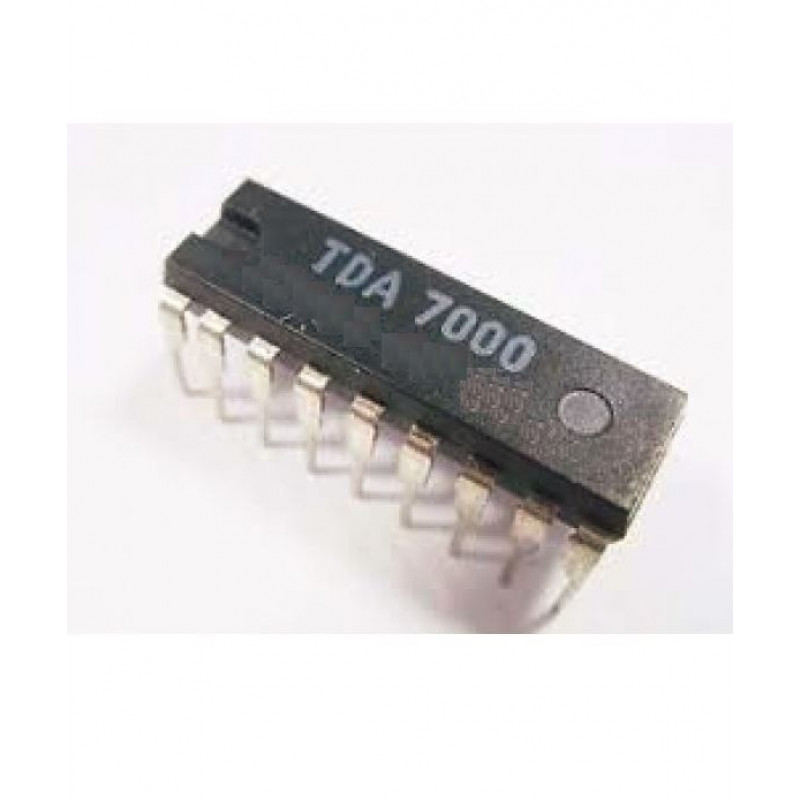

  • TDA7000 IC - FM Radio Receiver IC

The TDA7000 is a monolithic integrated circuit for mono FM portable radios, where a minimum on peripheral components is important (small dimensions and low costs). The IC has an FLL (Frequency-Locked-Loop) system with an intermediate frequency of 70 kHz. The i.f. selectivity is obtained by active RC filters. The only function which needs alignment is the resonant circuit for the oscillator, thus selecting the reception frequency. Spurious reception is avoided by means of a mute circuit, which also eliminates too noisy input signals. Special precautions are taken to meet the radiation requirements.

Features:-

• R.F. input stage

• Mixer

• Local oscillator

• I.F. amplifier/limiter

• Phase demodulator

• Mute detector

• Mute switch

Specifications:-

Parameter  Specification
Supply Voltage 12V
Oscillator voltage VP−0,5 to VP + 0,5 V
Operating Temperature Range 0°C to +60°C
Storage temperature range −55 to +150 °C


Related Document:-

 TDA7000 IC Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

TDA7000 IC - FM Radio Receiver IC

  • Product Code: EC-1740
  • Availability: 280
  • Rs.450.00

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 1 0% 450.0000
    2 - 4 1% Rs.445.00
    5 - 9 2% Rs.440.00
    10 - 24 3% Rs.435.00
    25 - 49 4% Rs.430.00
    50 - 99 7% Rs.420.00
    100+ 11% Rs.400.00
