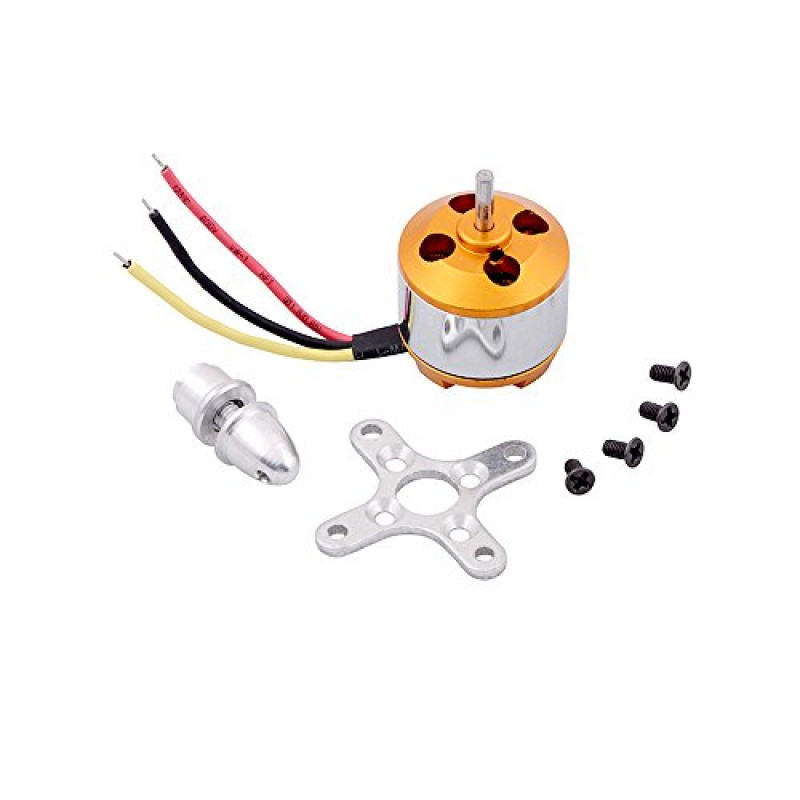

A2212 is a brushless outrunner DC motor specifically made to power Quadcopters and Multirotors. It is a 2200kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.
Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.
- KV: 2200 kV
- No load Current : 10 V : 0.5 A.
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: 27.5 x 30mm
- Shaft Diameter: 934;3.17mm
- Shaft diameter : 3.175mm.
- Minimum ESC Specification: 18A (30A Suggested)
- Thrust @ 3S with 1045 propeller: 1200 gms approx
- Thrust @ 3S with 0945 propeller: 750 gms approx
- Thrust @ 3S with 0845 propeller: 650 gms approx
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 401.2 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
A2212 - 2200KV BLDC Brushless Motor
- Product Code: EC-1425
- Availability: 495
- (Excluding 18% GST)
You save Rs.553.00!
