It is 450mm quad frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra durable polyamide nylon. This version of the F450 features integrated PCB connections for direct soldering of your ESCs.This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. F450 also comes with stronger molded arms, so no more arm breakage at the motor mount on a hard landing.
Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.
Features of F450 Quadcopter Frame:-
- Built from quality glass fiber and polyamide nylon.
- Integrated PCB connections for direct soldering of your ESCs
- Pre-threaded brass sleeves for all of the frame bolts.
- Colored arms for orientation to keep you flying in the right direction.
- Large mounting tabs on main frame bottom plate for easy camera mounting.
- Easy assembly.
Specifications of F450 Quadcopter Frame:-
- Width: 450mm
- Height: 55mm
- Weight: 270g (w/out electronics)
- Motor Mount Bolt Holes: 16/19mm
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 855.5 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.

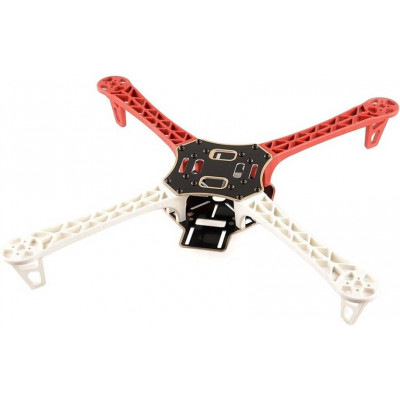

F450 Quadcopter Frame 4-Axis - Integrated PCB Wiring
- Product Code: EC-1422
- Availability: 201
- (Excluding 18% GST)
