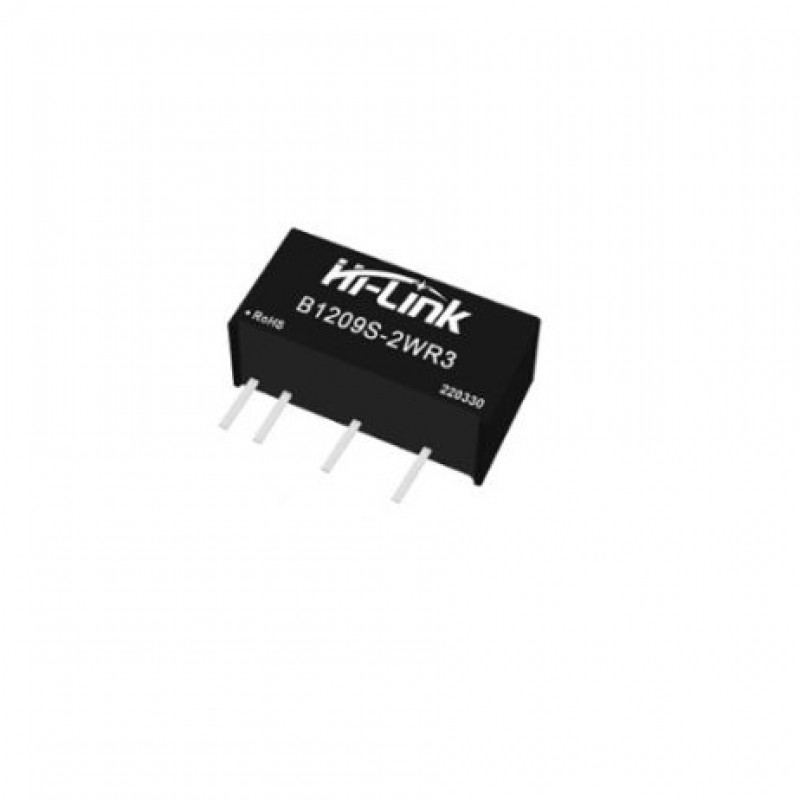

Hlk-b1209s-2wr3 12V to 9V 2W 222MA DC to DC Power Module Converter has a constant voltage input, isolated non-stabilized voltage single output 2W, Isolation voltage 1500VDC, Low no-load power consumption 0.025W(Typ.), Transfer efficiency up to 90%, Output short-circuit protection: continuous short circuit protection, automatic recovery, The voltage of the input power supply is relatively stable. Voltage variation range10%Vin), Operating temperature range-40C~+85C, Small SIP package, International standard pin direct installation of PCB board, High reliability, and long life design, continuous working time MTBF3.5 million hours

Features:

1. Easy to use
2. Easy to connect
3. Good quality product

Specifications:

1. Input Voltage: 12V
2. Output Voltage: 9V
3. Characteristic: Constant voltage input, isolated non stabilized voltage single output,2W
4. Isolation voltage: 1500VDC
5. Low no-load power consumption: 0.025W(Typ.)
6. Transfer efficiency up: 90%
7. Output short-circuit protection: continuous short circuit protection, automatic recovery
8. The voltage of the input power supply is relatively stable.Voltage variation range10%Vin
9. Operating temperature range-40C~+85C
10. Small SIP package
11. International standard pindirect installation of PCB board.
12. High reliability and long life design,continuous working time MTBF3.5 million hours (3500000Hrs)

Package Includes:

1 x 12V to 9V 2W 222mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1209S-2WR3
