The 211769-3 is a 9-way Free-hanging Receptacle with threaded coupling mate. This series 1 reverse-sex circular plastic connector (CPC) is an economical environmentally sealed connector designed for industrial applications and comes with black nylon housing. This design allows easy assembly. The housing and the seal are attached. A newly designed wire entry seal protects the rear of the connector and a peripheral seal protects the connector interface and accepts socket contact.
Applications:
Industrial
Features:
- Easy to use
- Easy to Install
- Good quality Product
Specifications:
- Product Range: CPC Series 1
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 9 Contacts
- Circular Contact Type: Crimp Socket Contacts Not Supplied
- Coupling Style: Threaded
- Connector Body Material: Thermoplastic Body
Package Includes:
1 x 211769-3-SOCKET, IN-LINE, SIZE 17, 9WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

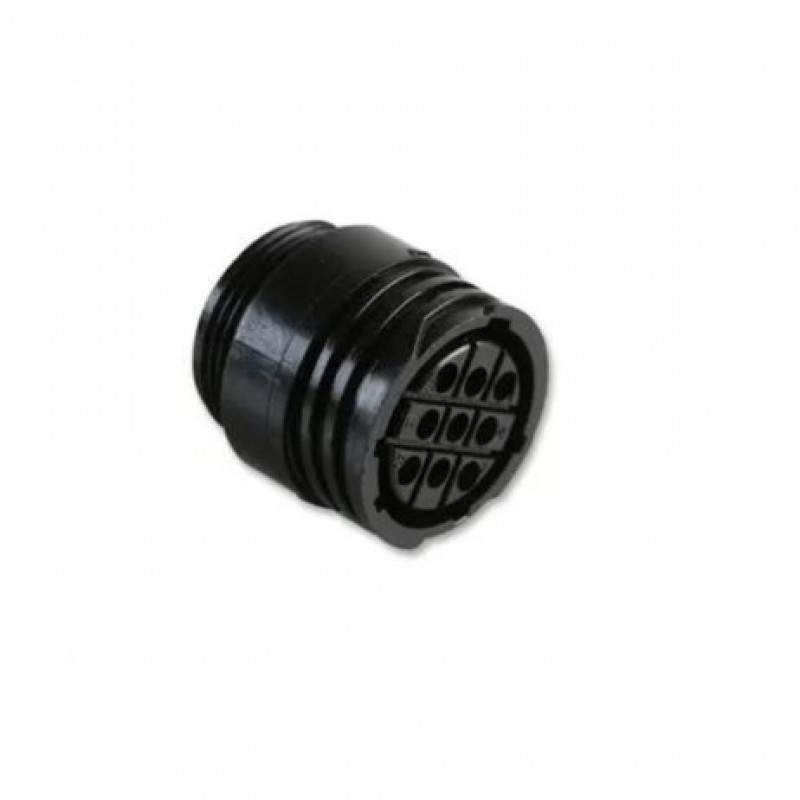

211769-3-Socket, In-Line, Size 17, 9 Way
- Product Code: EC-21502
- Availability: 3
-
Rs.741.00
- (Excluding 18% GST)
