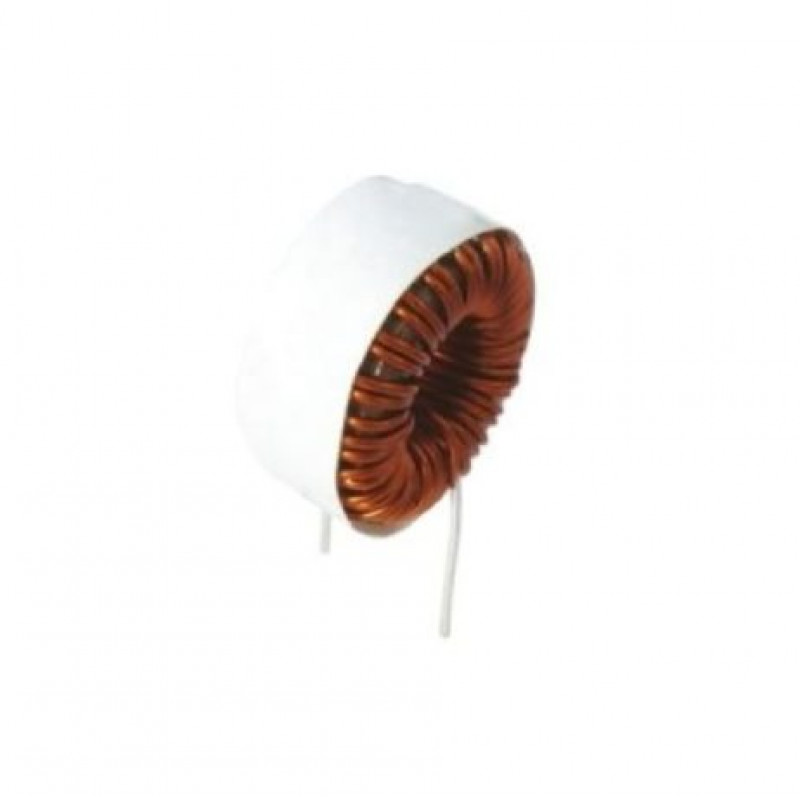

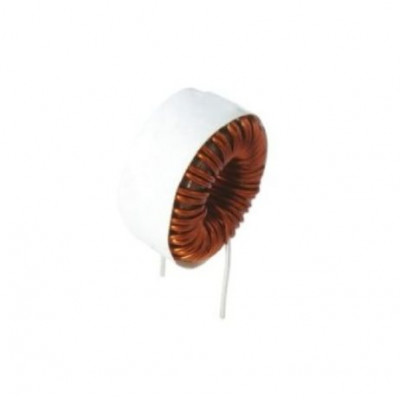

2319-V-RC High Current Radial DIP Inductor is a passive electronic device widely used in electronic circuits. It is an insulated coil that is a wire wound on a ring-shaped form that is made of different materials, such as powdered iron, ferrite, or another material.
A toroidal inductor is mostly used where large inductance is required. Toroidal inductors have more inductance per turn and can carry more current than solenoids with a core of similar material and size.
Applications:
- Input/output of DC/DC converters
- Industrial electronics
- Power supplies for:
- Portable communications equipment
- Camcorders
- LCD TVs
Specifications:
- Series: 300
- Part Number: 2319-V-RC
- Inductance: 390 H
- Mounting Type: Radial
- Maximum DC Resistance: 72 m
- Maximum DC Current: 5 A
- Tolerance: 15%
- Lead Diameter: 1.0668 mm
- Lead Pitch: 14.224 mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Dimensions: 32.512 (Dia.) x 16.51 mm
Packages Includes:
1 x 2319-V-RC High Current Radial, Leaded Inductor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2319-V-RC High Current Radial, Leaded Inductor
- Product Code: EC-24072
- Availability: 5
-
Rs.893.00
- (Excluding 18% GST)
