The 381 series wire mount IDC Socket accepts multiple wire diameters of 1.1 to 2.54mm and conductor sizes of 18 to 22AWG. The T-tap termination enables mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point. The hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect. It can terminate with a common pair of pliers.

Features:

1. Easy, labour saving and reliable IDC termination
2. Easy field termination with no special wire preparation No stripping, tinning or special tooling
3. Latching mechanism maintains a reliable interconnection in demanding field applications
4. 5A Maximum current carrying capability per contact

Specifications:

1. IDC Connector Type: IDC Plug
2. Contact Gender: Male
3. Pitch Spacing: 2.54mm
4. No. of Rows: 1 Row
5. No. of Contacts: 4Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Copper Alloy
8. Contact Plating: Gold Plated Contacts
9. Product Range: 381 Series

Package Includes:

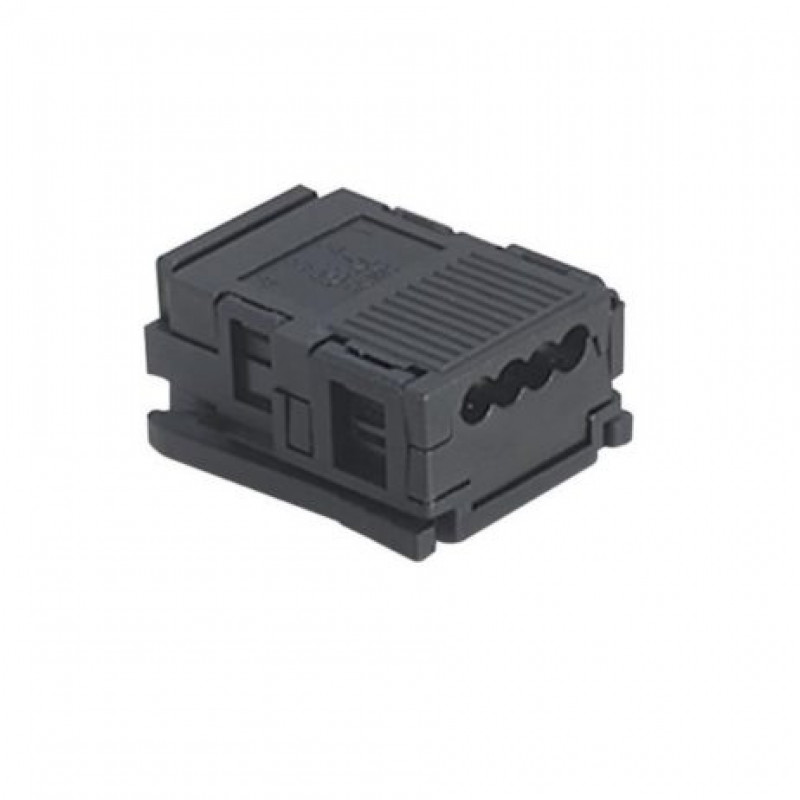

1 x 38104-0018-000 FL-CONN, HERMAPHRODITIC, 4POS, 1R
