The 50-12A-30 is a 12-way 2-row Card Edge Connector with glass-filled polyester insulator and gold over nickel-plated spring brass contacts. This CARDCON series connector features solder eyelet, single readout and double readout on 0.2-inch row centres. Available with unique tails for PC board retention, holds the connector firmly on the board during wave soldering operations. Ideal for applications involving vibration or board irregularities.
Note: For more details refer to datasheet.
Features:
- UL94V-0 Flammability rating
- -65 to +105C Operating temperature range
- 1800VAC Withstand voltage
- 5A Current rating
Packages Includes:
1 x 50-12A-30-CARD EDGE CONN, DUAL SIDE, 12P
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

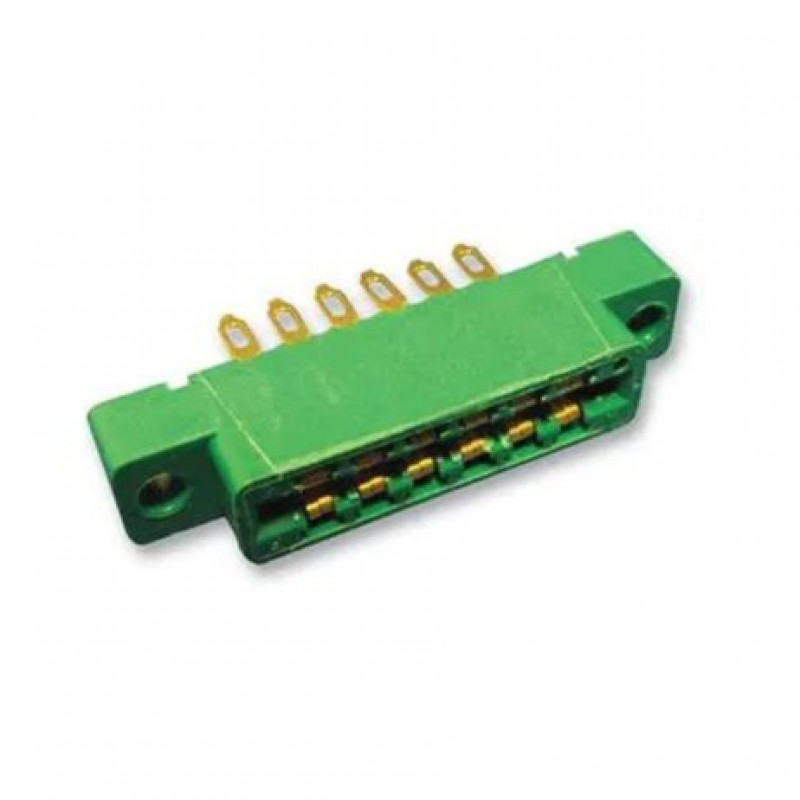

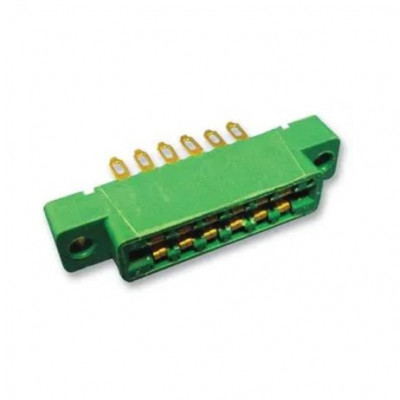

50-12A-30-Card Edge Conn, Dual Side, 12P
- Product Code: EC-21574
- Availability: 1
-
Rs.469.00
- (Excluding 18% GST)
