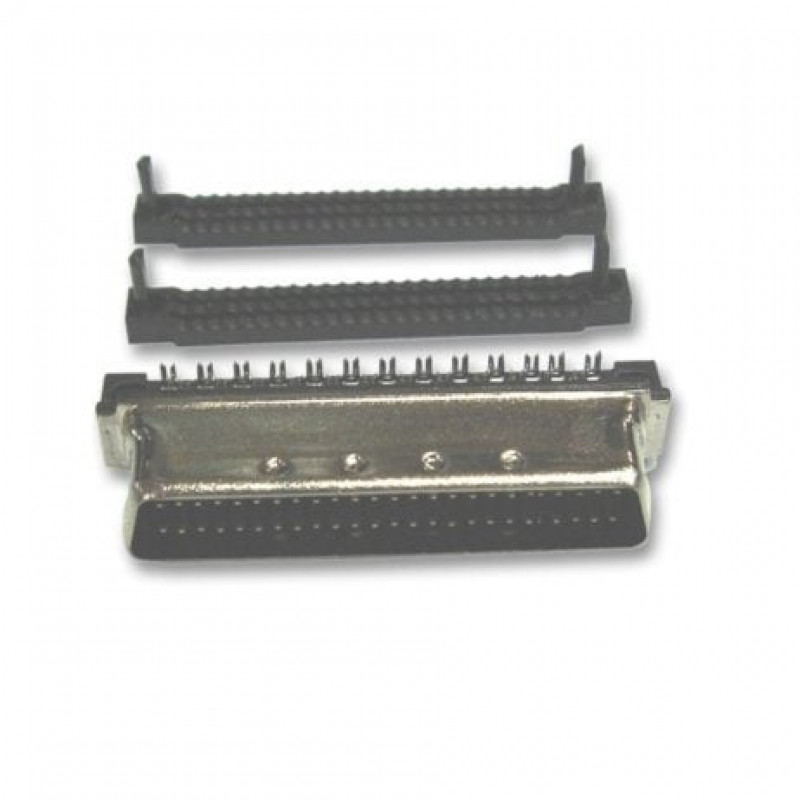

he 5749621-5 is a 50-way 2-row IDC D-sub Plug with gold over nickel-plated phosphor bronze contacts and tin-nickel alloy plated steel shell. This series III connector comes with latch blocks, and black thermoplastic housing and accepts 30 to 28 AWG round jacketed cable. The shielded AMPLIMITE .050 series headers with action pin contacts offer a high-density D-type interface and a solderless board-mount interconnection.
Applications:
- Industrial
Features:
- Easy to use
- Easy to Install
- Good quality Product
Specifications:
- No. of Contacts: 50 Contacts
- Gender: Plug (View Associated Connectors)
- Connector Type: SCSI
- Contact Termination Type: IDC / IDT
- Product Range: Amplimite III
- Connector Mounting: Cable Mount
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
Package Includes:
1 x 5749621-5-PLUG, IDC, SCSI2, 50WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
50Way Plug 5749621-5, IDC, SCSI2
- Product Code: EC-21518
- Availability: 2
-
Rs.949.00
- (Excluding 18% GST)
