The 74HC244D is an octal buffer/line driver with 3 state outputs in 20 pin SOIC package. The device can be used as two 4-bit buffers or one 8-bit buffer. The 74HC244D features two outputs enabling each to control four of 3 state outputs. A HIGH on output enable causes outputs to assume a high impedance OFF state. Inputs include clamp diodes that enable the use of current limiting resistors to interface with inputs to voltages in excess of VCC.
Features:
- CMOS levels input
- Octal bus interface
- Non inverting 3 state outputs
- Complies with JEDEC standard JESD 7A
- Supply voltage ranges from 2V to 6V
- Ambient temperature ranges from -40C to 125C
- Features ESD protection
Package Includes:
1 x 74HC244D,653 NEXPERIA Buffer/Line Driver, Octal, 74HC244, 3-State, 2V to 6V, SOIC-20
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

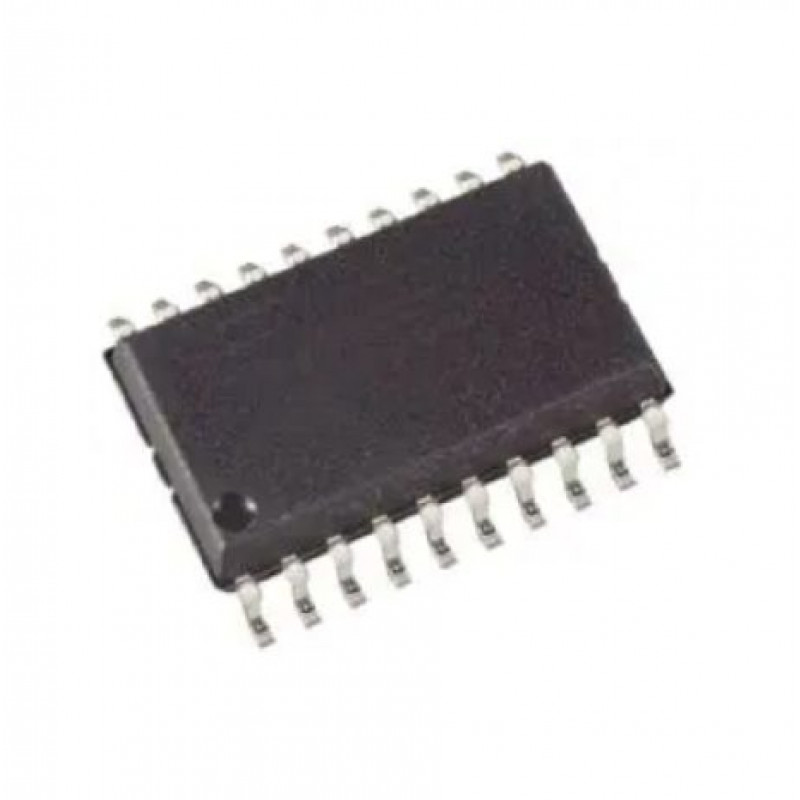

74HC244D,653 NEXPERIA Buffer/Line Driver, Octal, 74HC244, 3-State, 2V to 6V, SOIC-20
- Product Code: EC-18915
- Availability: 559
-
Rs.77.00
- (Excluding 18% GST)
