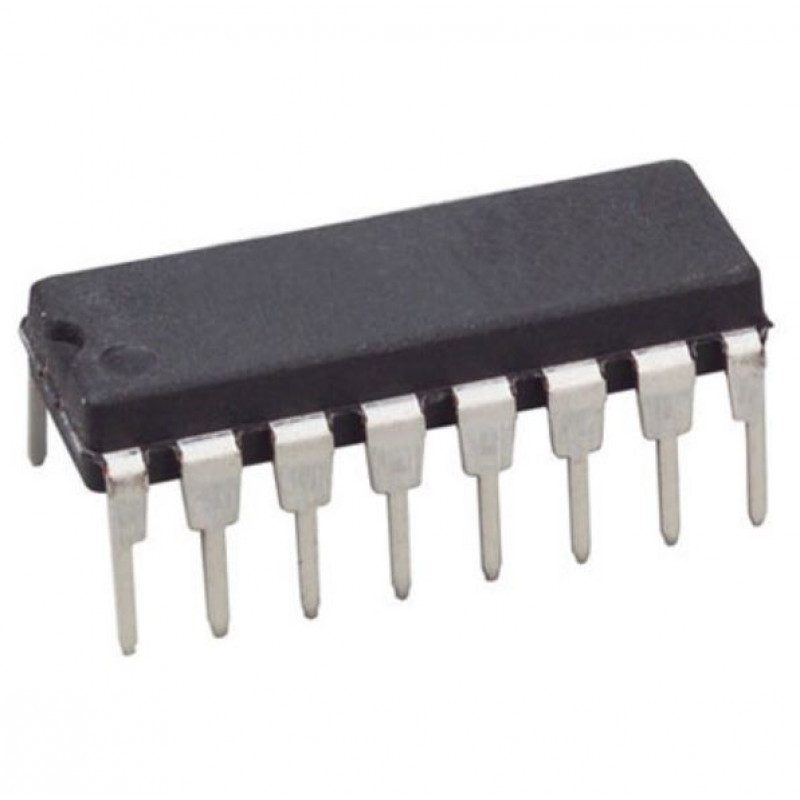

74HC4053 Triple 2-channel Multiplexer/Demultiplexer IC DIP-16 Package

The 74HC4053; 74HCT4053 is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no. 7A.The 74HC4053; 74HCT4053 is triple 2-channel analog multiplexer/demultiplexer with a common enable input (E). Each multiplexer/demultiplexer has two independent inputs/outputs (nY0 and nY1), a common input/output (nZ) and three digital select inputs (Sn). With E LOW, one of the two switches is selected (low-impedance ON-state) by S1 to S3. With E HIGH, all switches are in the high-impedance OFF-state, independent of S1 to S3. VCC and GND are the supply voltage pins for the digital control inputs (S0 to S2, and E). The VCC to GND ranges are 2.0 V to 10.0 V for 74HC4053 and 4.5 V to 5.5 V for 74HCT4053. The analog inputs/outputs (nY0 to nY1, and nZ) can swing between VCC as a positive limit and VEE as a negative limit. VCC  VEE may not exceed 10.0 V. For operation as digitalmultiplexer/demultiplexer, VEE is connected to GND (typically ground)

Features:-

• Wide analog input voltage range from 5 V to +5 V
• Low ON resistance:
• 80 (typical) at VCC  VEE = 4.5 V
• 70  (typical) at VCC  VEE = 6.0 V
• 60  (typical) at VCC  VEE = 9.0 V
• Logic level translation: to enable 5 V logic to communicate with 5 V analog signals
• Typical ‘break before make’ built-in
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• CDM JESD22-C101E exceeds 1000 V
• Multiple package options

Package Includes:-

1 x 74HC4053 Triple 2-channel Multiplexer/Demultiplexer IC DIP-16 Package
