This 74LS06 monolithic hex inverter buffers/drivers feature high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and are also characterized for use as inverter buffers for driving TTL inputs. The ′LS06 has a rated output voltage of 30 V and the ′LS16 has a rated output voltage of 15 V. The maximum sink current for the 74LS06 is 40 mA. The circuits is compatible with most TTL families. Inputs are diode-clamped to minimize transmission-effects, which simplifies design. Typical power dissipation is 175 mW and average propagation delay time is 8 ns. The 74LS06 is characterized for operation from 0°C to 70°C.
Features:-
• Converts TTL Voltage Levels to MOS Levels
• High Sink-Current Capability
• Input Clamping Diodes Simplify System Design
• Open-Collector Driver for Indicator Lamps and Relays
• Package Options Include “Small Outline” Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC | 7 V |
| Input Voltage (VI) | 5.5 V |
| Output Voltage (VO) | 30 V |
| Operating free-air temperature range | 0°C to70°C |
| Storage temperature range | –65°C to 150°C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 25.96 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

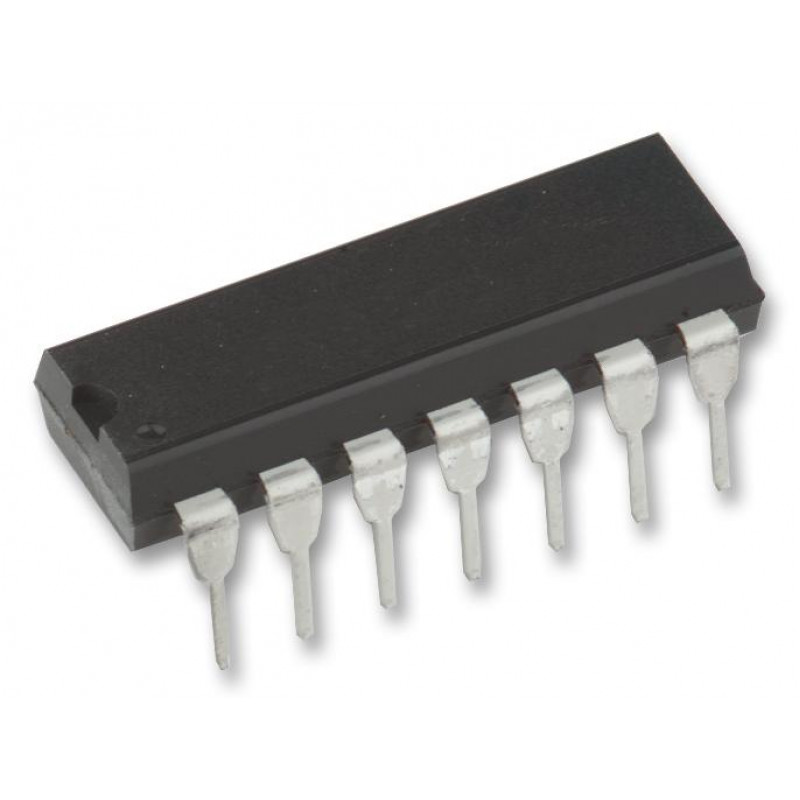

74LS06 Hex Inverter Buffer IC (7406 IC) DIP-14 Package
- Product Code: EC-0381
- Availability: 2897
-
Rs.22.00
- (Excluding 18% GST)
