The 74LS14 contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
Features:-
• Six Independent INVERT Gates
• Standard Pin Configuration
• Fast Switching Times
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

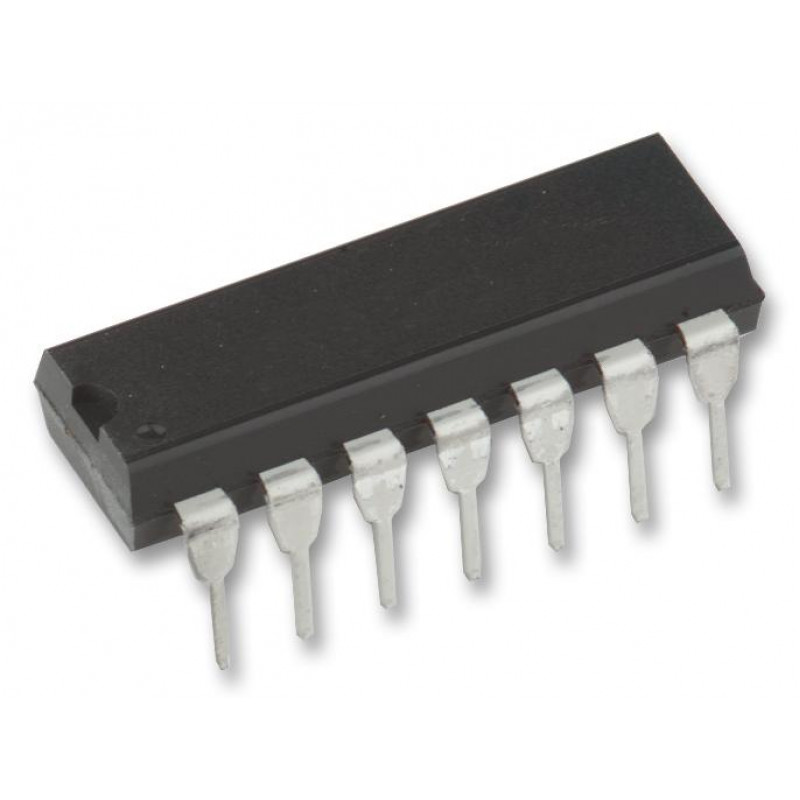

74LS14 Hex Schmitt Trigger Inverter IC (7414 IC) DIP-14 Package
- Product Code: EC-0407
- Availability: 1801
-
Rs.15.00
- (Excluding 18% GST)
