The 74LS170 is a high-speed, low-power 4 x 4 Register File organized as four words by four bits. Separate read and write inputs, both address and enable, allow simultaneous read and write operation. Open-collector outputs make it possible to connect up to 128 outputs in a wired-AND configuration to increase the word capacity up to 512 words. Any number of these devices can be operated in parallel to generate an n-bit length. The 74LS670 provides a similar function to this device but it features 3-state outputs

Applications :-

Random access register files are suitable for scratch-pad memories. This function is useful for communication between different controllers or processors or as a temporary fast storage.

Features :-

• Simultaneous Read/Write Operation
• Expandable to 512 Words of n-Bits
• Typical Access Time of 20 ns
• Low Leakage Open-Collector Outputs for Expansion
• Typical Power Dissipation of 125mW

Specifications :-

• Technology Family: LS
• Rating: Catalog
• Supply voltage: 5.25V
• Frequency at nominal voltage: 35 MHz
• Typical propagation delay: 21ns
• Simultaneous Read/Write Operation
• Expandable to 512 Words of n-Bits
• Typical Access Time of 20 ns
• Low Leakage Open-Collector Outputs for Expansion
• Typical Power Dissipation of 125mW
• ESD protection
• Operating temperature: 0ºC to 70ºC

Package Includes :-

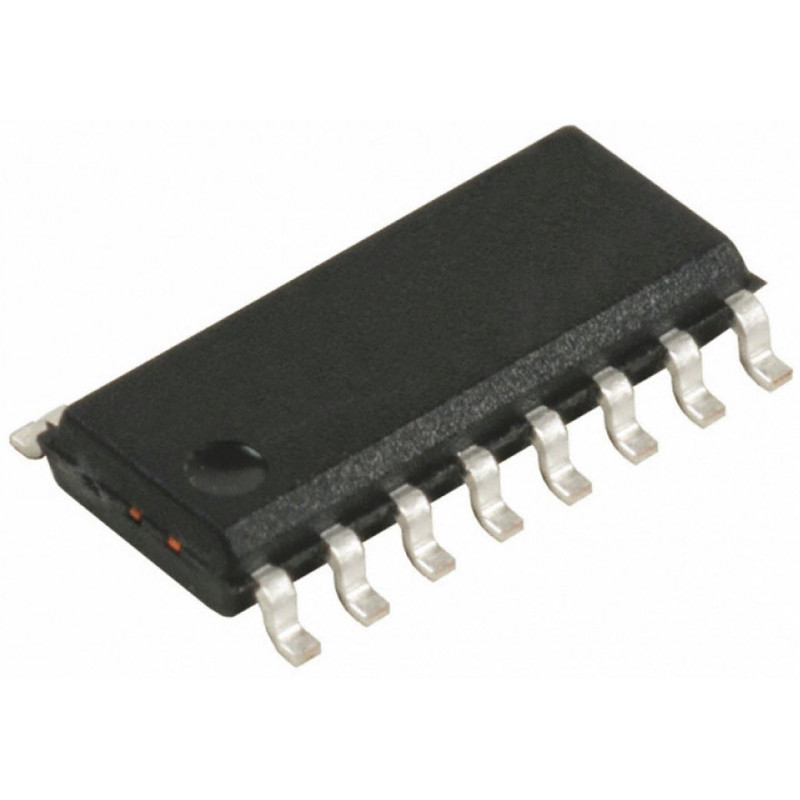

1 X 74LS170 IC - (SMD Package) Low-power 4x4 Register IC (74170 IC)
