This four data line transceiver is designed for a synchro-nous two-way communications between data buses. It can be used to drive terminated lines down to 133Ω
Features :-
- Two-way a synchronous communication between data buses
- PNP inputs reduce DC loading on bus line
- Hysteresis at data inputs improves noise margin
Specifications :-
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- HIGH Level Output Current : -15mA
- LOW Level Output Current : 24
- Free Air Operating Temperature : 70°C
Package Includes :-

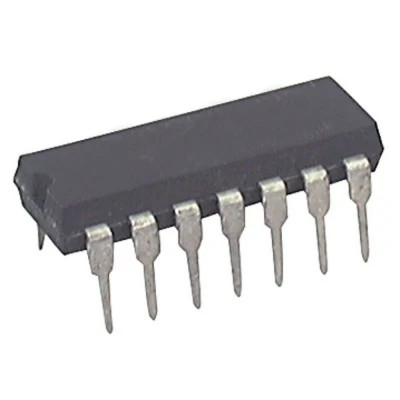

1 X 74LS243 3-State Quad Bus Transceiver IC (74243) DIP-14 Package
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 37.76 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
74LS243 3-State Quad Bus Transceiver IC (74243) DIP-14 Package
- Product Code: EC-11099
- Availability: 2458
-
Rs.32.00
- (Excluding 18% GST)
