Each of these Schottky-clamped data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR gates. Separate output control inputs are provided for each of the two four-line sections. The 3-STATE outputs can interface directly with data lines of bus-organized systems. With all but one of the common outputs disabled (at a high impedance state), the low impedance of the single enabled output will drive the bus line to a HIGH or LOW logic level.

Features :-

• 3-STATE version of 74LS153 with same pinout
• Schottky-diode-clamped transistors
• Permit multiplexing from N-lines to one line
• Performs parallel-to-serial conversion
• Strobe/output control
• High fanout totem-pole outputs
• Typical power dissipation 35mW

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• HIGH Level Output Current : -2.6mA
• LOW Level Output Current : 24
• Free Air Operating Temperature : 70°C

Package Includes :-

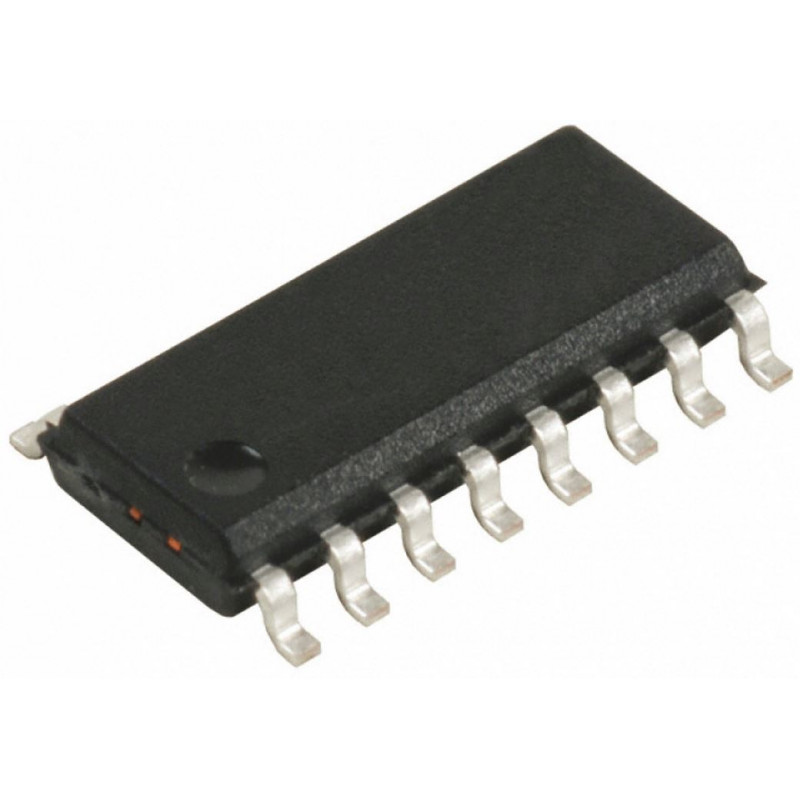

1 X 74LS253 IC - (SMD Package) 3-State Dual 4-Input Multiplexer IC (74253 IC)
