These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetrical G (active-low control) inputs. These devices feature high fan-out, improved fan-in, and can be used to drive terminated lines down to 133 ohms.
Features :-
- Hex Buffers with Improved Performance
- 3-State Outputs Drive Bus Lines
- Choice of True or Inverting Outputs
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
Specifications :-
- Supply Voltage : 4.75 - 5.25V
- HIGH Level Input Voltage : 2.0V
- LOW Level Input Voltage : 0.8V
- HIGH Level Output Current : -5.2mA
- LOW Level Output Current : 32mA
- Free Air Operating Temperature : 70°C
Package Includes :-
1 X 74LS368 3-State Hex Bus Drivers IC (74368) DIP-16 Package
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 37.76 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

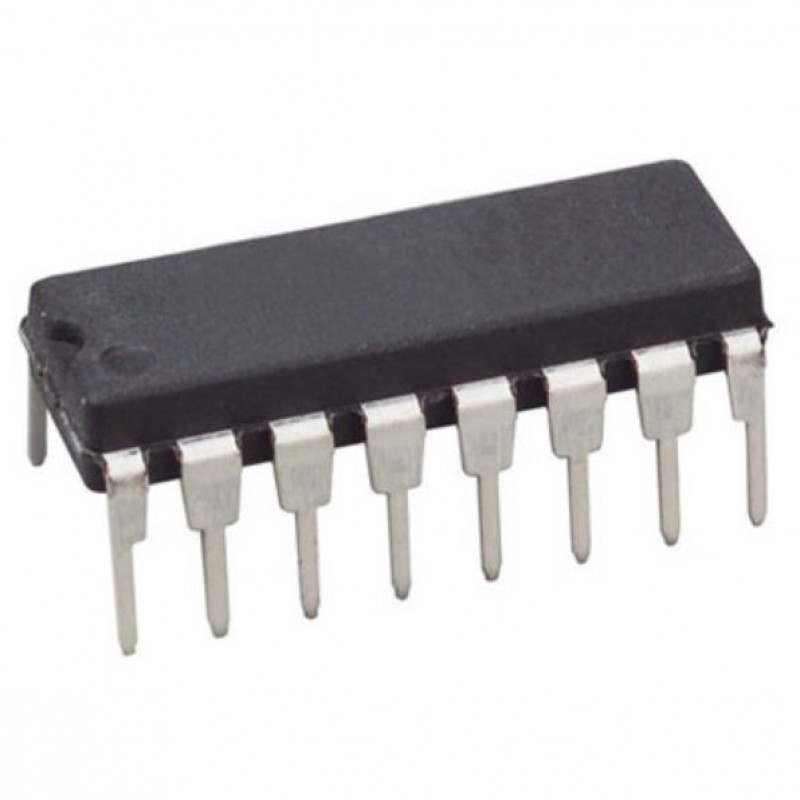

74LS368 3-State Hex Bus Drivers IC (74368) DIP-16 Package
- Product Code: EC-11117
- Availability: 2173
-
Rs.32.00
- (Excluding 18% GST)
