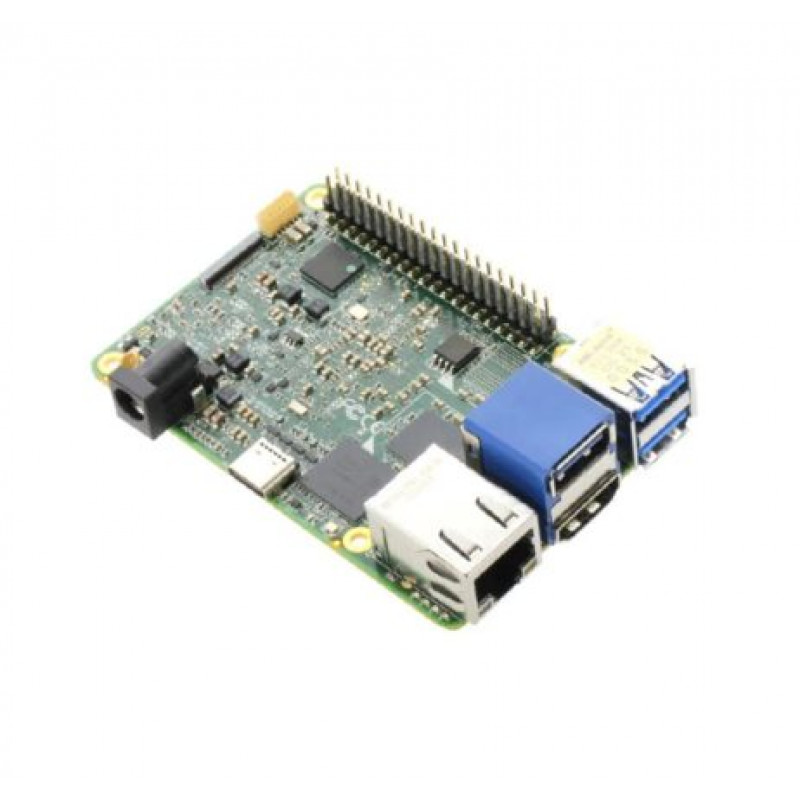

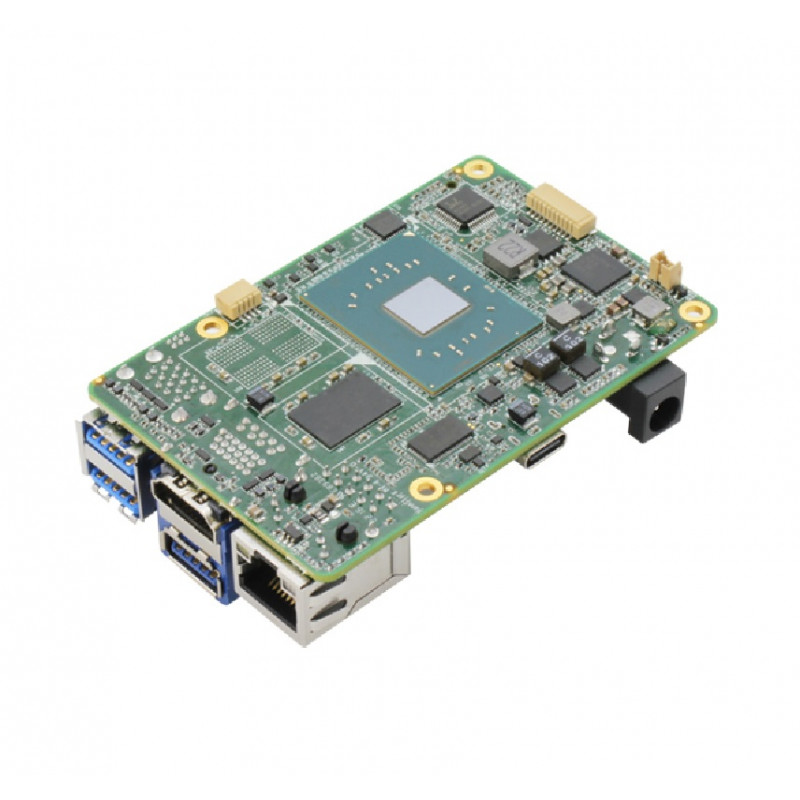

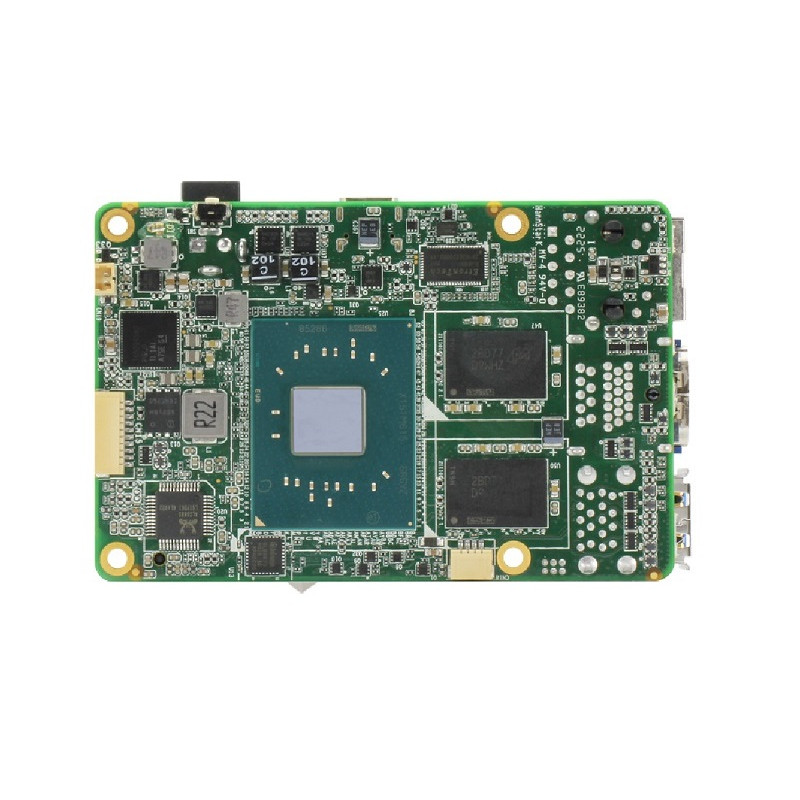

AAEON blends the classic with the modern with the introduction of the UP 4000, the successor to the trailblazingUP Board. Maintaining the classic form factor of its predecessor, the UP 4000 gives users upgrades in processing power, I/O density, and expansion options; all while remaining compatible with existing UP Board-powered systems.

Of particular note is the 30% increase in CPU speeds available with the UP 4000s Intel Pentium N4200/ Celeron N3350/ Atom E3950 Processor SoC (formerly Apollo Lake). Further to this, there is also a twofold improvement in 3D graphic performance with the Intel Gen 9 HD processor graphics package. These upgrades give users up to 1.7 times the single thread performance compared to the previous generation, along with 1.5 times the graphics burst performance.

While the UP 4000 represents a great advancement in maker board technology, the board will follow the original UP Boards ethos of bridging the gap by providing fantastic value for money. Despite its low price, the UP 4000 boasts a number of new features, such as a 6-pin wafer to support audio function, TPM 2.0 for enhanced security, and a HDMI 1.4 port. The introduction of mic-in and line-out utility being supported directly via the board, a DP1.2-supporting USB Type-C connector also enables dual visual displays up to 4K at 60Hz.

Further balancing the legacy of the first-generation UP Board with the more sophisticated needs of its customers, AAEON has equipped the UP 4000 with a denser I/O containing a wealth of expansion options, all on the same 3.37 x 2.22 (85.6mm x 56.5mm) form factor.

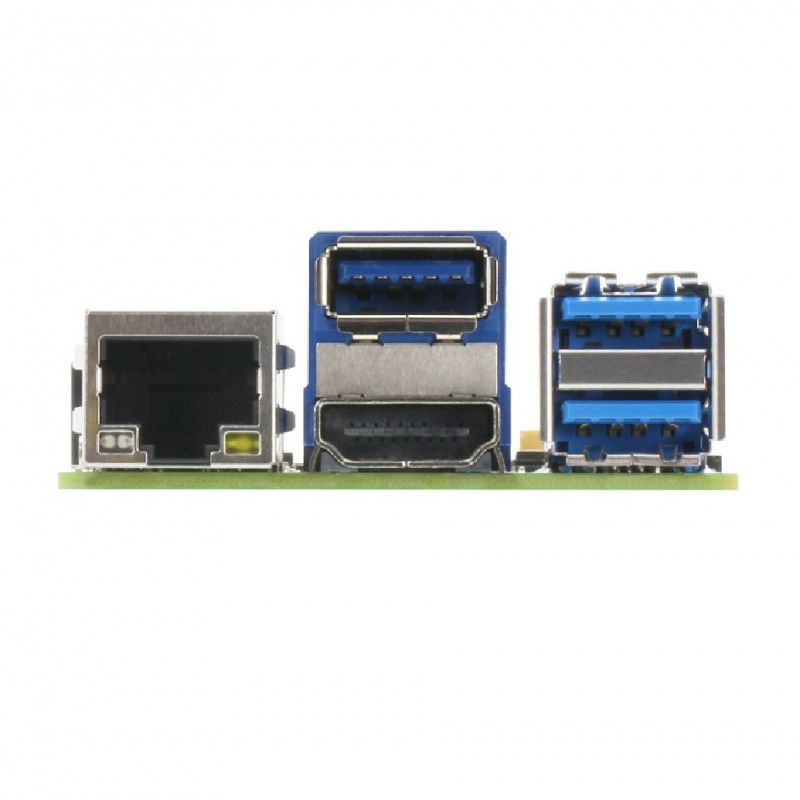

The compact board features three USB 3.2 Gen 1 ports, two USB 2.0 via 10-pin wafers, and a USB Type-C slot, with an optional carrier board, giving customers the option of supporting Wi-Fi, 5G, or AI modules via two M.2 Key ports.

Features:

1. Onboard LPDDR4 Memory up to 8GB
2. Onboard eMMC Storage up to 64GB
3. Dual displays up to 4K at 60Hz
4. Support M.2 2230 E-Key / M.2 2280 M-Key / M.2 3052 B-Key ( via carrier board)
5. 40 pin GPIO x 1
6. 6-pin wafer for Audio x 1
7. TPM 2.0

Package Includes:

1 x AAEON UP4000 board Single Board Computers Intel PentiumN4200, 8GB RAM, 64GB eMMC, Rev A1.0
