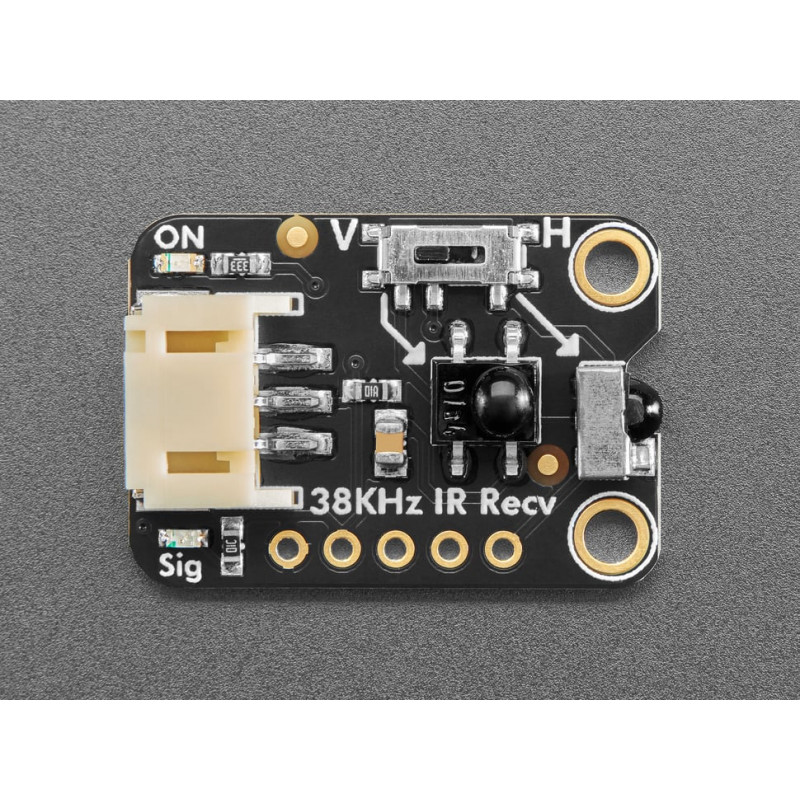

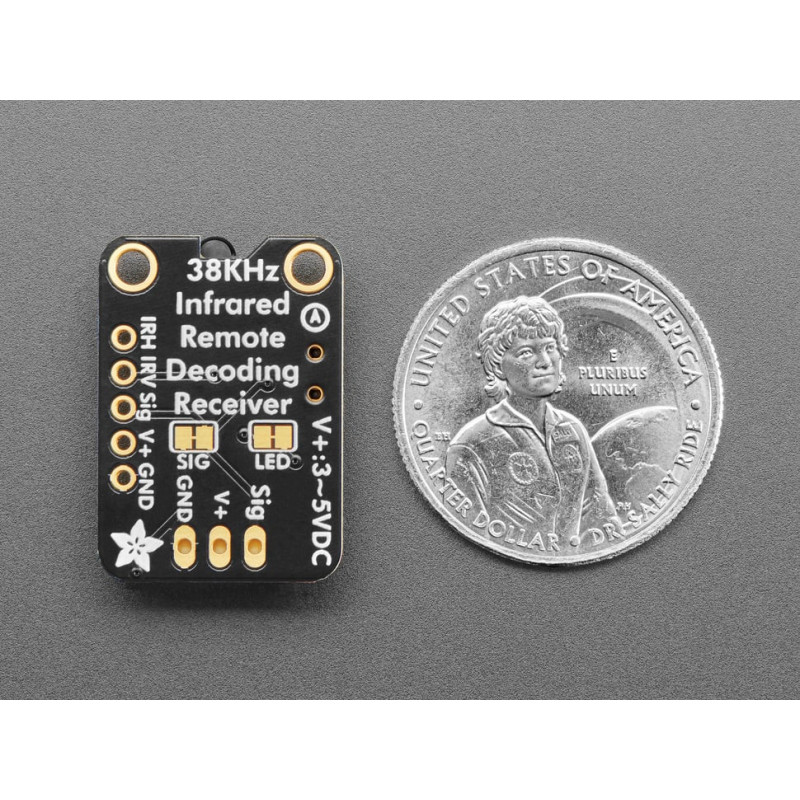

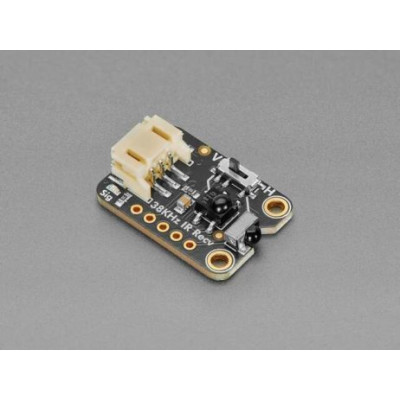

The Adafruit Infrared IR Remote Receiver is a versatile breakout board designed to receive high-powered IR signals from remote controls. Featuring two selectable IR receiver chips, this board offers flexibility and sensitivity for a wide range of IR remote receiving projects.

Features:

1. Dual IR Receiver Chips: Equipped with two selectable IR receiver chips, positioned at the end and in the middle of the board, allowing users to choose the optimal position for signal reception.
2. Slide Switch: Includes a slide switch to select which IR receiver chip to read signals from, enabling easy switching between receivers without interference.
3. Independent Signal Outputs: Breakout pads allow for independent reading of each IR receiver chip, eliminating signal interference and ensuring coherent output.
4. Easy Usage: Simply power the board with 3~5VDC, point a 38KHz remote control at the sensors, and press buttons to generate demodulated IR envelopes, which are piped out through the Signal pin for decoding by a microcontroller.
5. LED Indicators: Features a green power good LED and a red signal LED, with the red LED blinking to indicate when IR remote signals are being read by the onboard sensors.
6. Mounting Holes and Cable Compatibility: Equipped with mounting holes for easy enclosure and device mounting, and compatible with a 2mm pitch STEMMA JST PH cable for easy wiring without soldering.
   Note:

Specifically designed for receiving 38KHz IR remote control signals; not suitable for proximity/distance sensing or other frequency signals.
Requires a microcontroller with pulse-input reading capabilities for signal decoding.
Fully assembled and tested PCB, no soldering required; compatible with a 2mm pitch, 3-pin STEMMA JST PH cable for easy wiring.

Specifications:

1. Communication Interface: Pulse-input reading capabilities required on the microcontroller
2. Power Supply: 3~5VDC
3. Receiver Frequency: 38KHz
4. LED Indicators: Green power good LED and red signal LED
5. Compatibility: Compatible with microcontrollers supporting common IR receiver connectivity and decoding

Package Includes:

1 x Adafruit Infrared IR Remote Receiver STEMMA JST PH 2mm
