Tip-Ring-Ring-Sleeve style audio cables are often used for situations where you want stereo audio and then an extra contact for microphone input. For example, headsets for cell phones. Also called TRRS jacks for short, theyre also handy if you happen to want to use common audio cables for low-speed data transmission with power, ground, and two data lines.

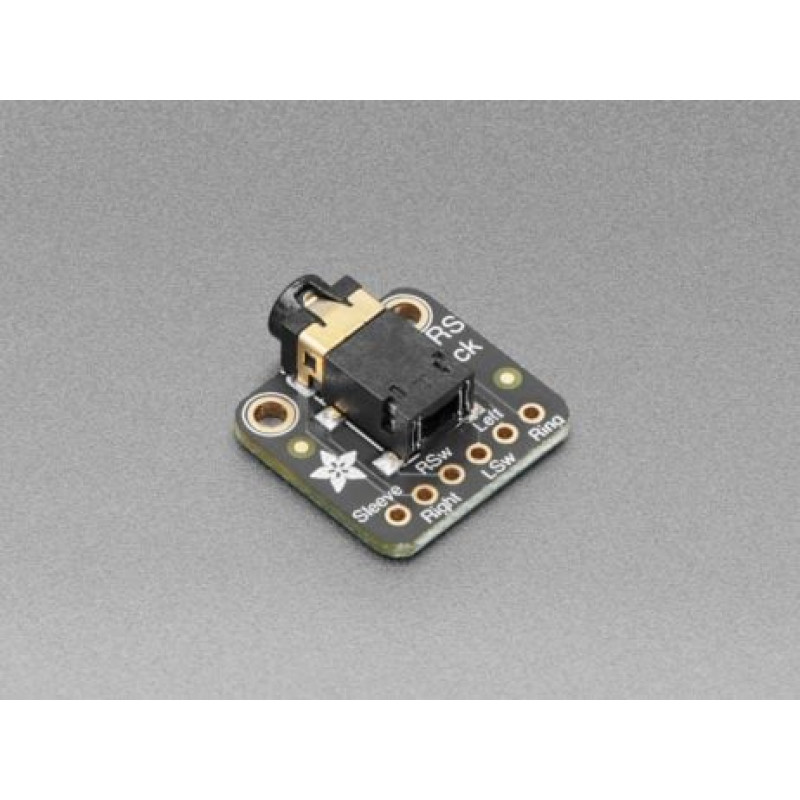

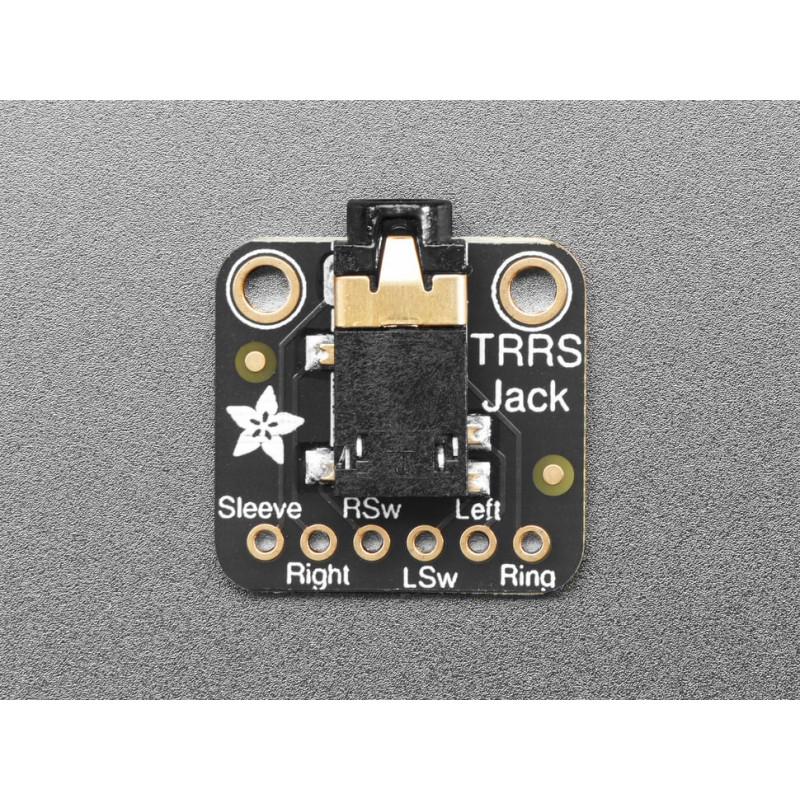

This breakout board is simple but has everything you need to interface with TRRS cables: not only do you get the four contacts but also two switched outputs:

1. When the jack isnot inserted, the left switch is connected to the left contact and the right switch to the right contact.
2. When the jackis inserted, the left and right switch pins float. You can use these switches to auto-switch from a built-in speaker to headphone when plugged in, or to detect when headphone is not inserted to power down or mute.

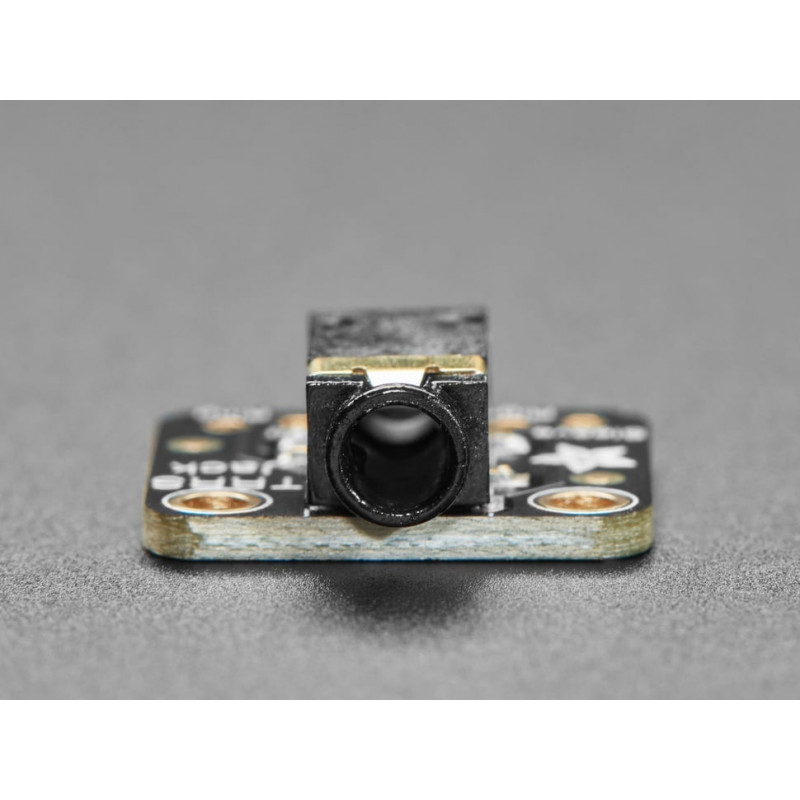

We like this jack in particular because it has two through-hole contacts near the opening for a good mechanical connection. Comes fully assembled on a breakout board with mounting holes and lil bit of header in case you want to use it with a breadboard.

Features:

1. TRRS (Tip, Ring, Ring, Sleeve) jack breakout board
2. Designed for audio applications
3. Converts TRRS signals to separate audio and microphone signals
4. Includes 3.5mm audio jack for easy connectivity
5. Features solder pads for connecting external components
6. Compact size for integration into projects

Package Includes:

1 x Adafruit TRRS Jack Breakout Board
