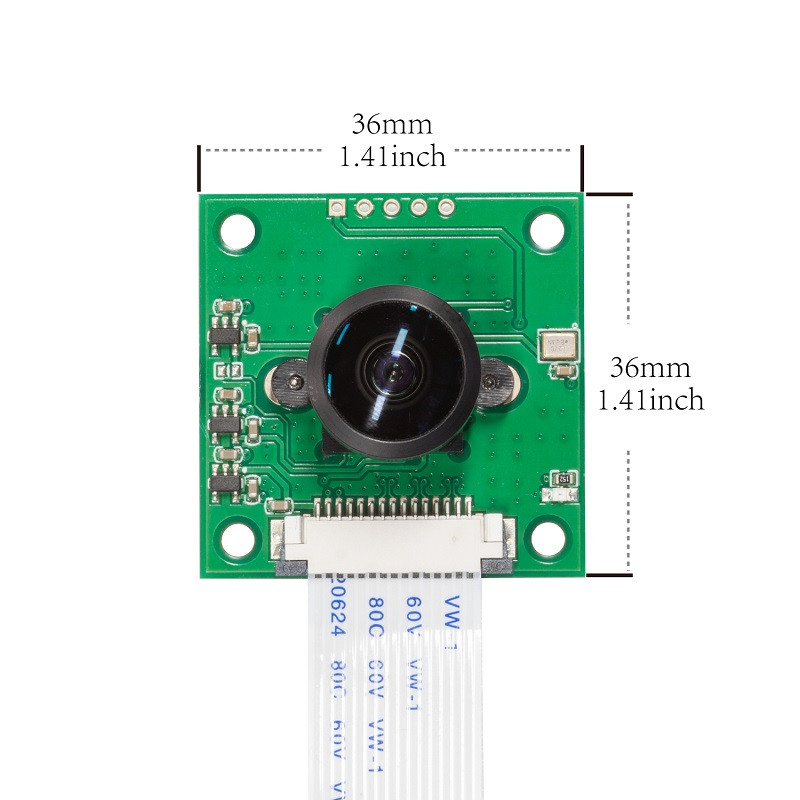

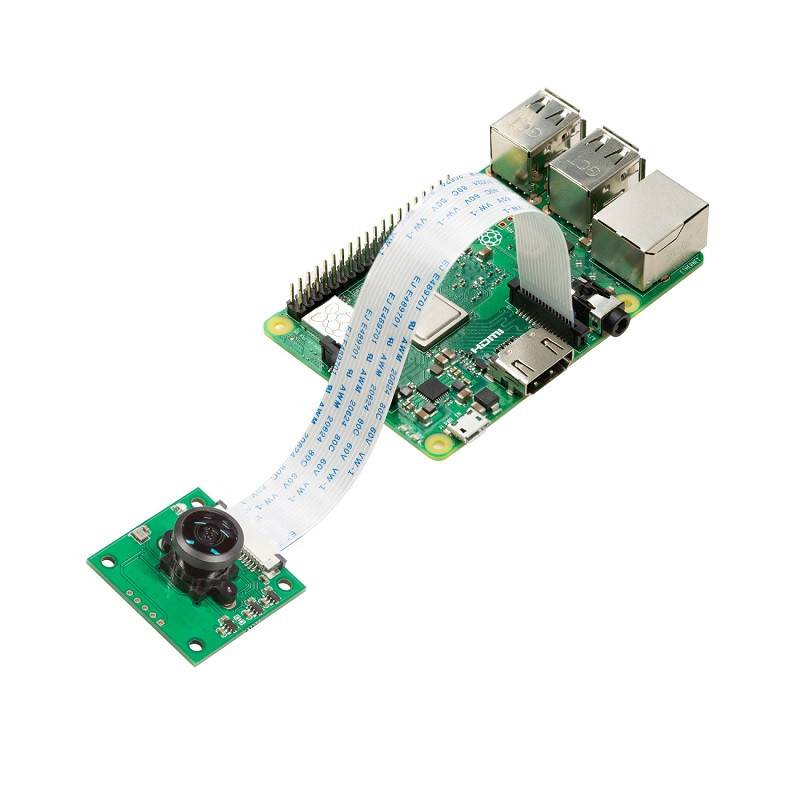

The board itself is tiny, at around 36mm x 36mm highlight of our module is that the Lens is replaceable compared to official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The Arducam Ultra Wide Angle Camera has a fisheye M12 lens with 220 horizontal field of view which allows you to apply it in various special scenes. The camera is supported by the latest version of Raspberry Pi OS, which supports using libcamera apps to capture images.
Applications:
- Cellular phones,PDAs,Toys
- Other battery-powered products
- PC multimedia
- Wildlife photograph
- Home security system
- Digital still cameras,etc.
Features:
- Ultra Wide Angle: A fisheye camera with 220 HFOV for Raspberry Pi. (The lens isLN010)
- Lens Options: Replaceable M12 lens for your various requirement
- Native to Raspberry Pi: No need to install additional driver
- System Compatibility: Support the lastest Raspberry Pi OS and libcamera apps
- Support for LED and Flash Strobe Mode
- On-chip phase lock loop(PLL)
- Support for Video and Snapshot operation
- Support for Output format: 8/10 raw RGB data
- Image quality control: lens correction defective pixel canceling
Package Includes:
1 x OV5647 Camera Board with M12 M32076M20 Fisheye Lens
1 x 15cm 15pin FPC cable
Attachments :
DownloadDownload| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam Ultra Wide Angle Fisheye 5MP OV5647 Camera for Raspberry Pi
- Product Code: EC-20191
- Availability: 3
-
Rs.2771.00
- (Excluding 18% GST)
