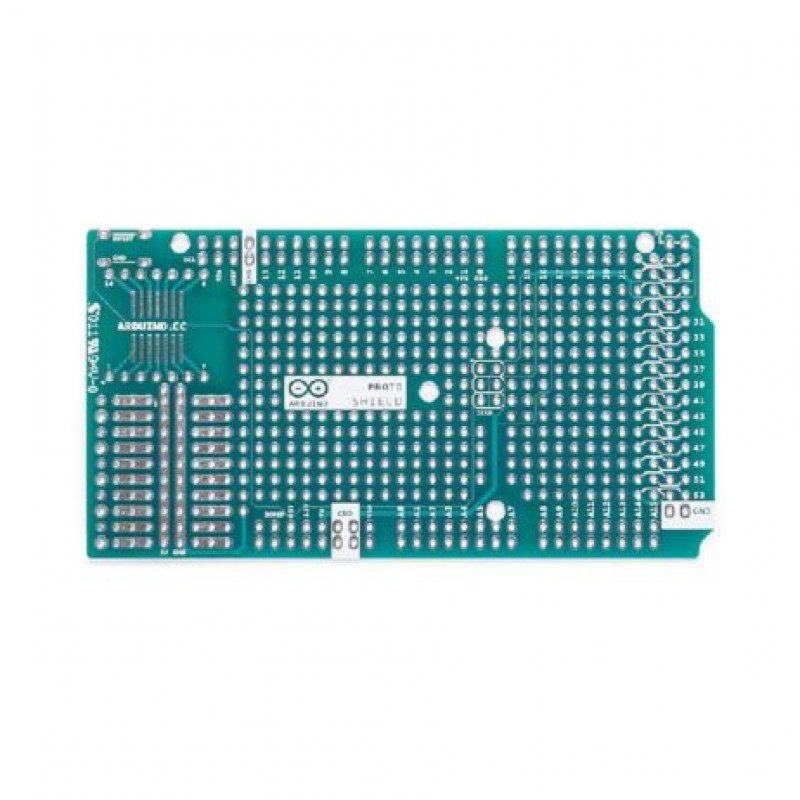

The Arduino Mega Proto Shield Rev3 is a versatile prototyping board designed to expand the capabilities of the Arduino Mega. This shield provides a convenient platform for building custom circuits and projects, featuring a grid of prototyping area with solderable pads. It is equipped with multiple I/O pins that connect directly to the Mega, allowing for easy integration of various components such as sensors, LEDs, and displays. The shield also includes additional features like a power supply circuit, allowing users to power their projects directly from the Arduino. Its robust design and compatibility make it an ideal choice for hobbyists, makers, and developers looking to create and test new ideas efficiently.

Features:

1. Prototyping Area: Solderable pads for easy circuit creation and testing.
2. Direct Compatibility: Designed specifically for Arduino Mega boards.
3. Multiple I/O Pins: Access to various digital and analog pins for connecting components.
4. Power Supply Circuit: Allows for direct powering of external components from the Arduino.
5. Stackable Design: Can be stacked with other shields for expanded functionality.
6. LED Indicators: Onboard LEDs for power and status monitoring.
7. Compact Layout: Optimized design to fit seamlessly on the Mega board.
8. Robust Construction: Durable materials for long-lasting use in projects.

Specification:

1. 1.0 Arduino pinout
2. 1 Reset button
3. 1 ICSP connector
4. 14 pins SMD footprint (50 mils pitch)
5. 32 double row through Hole pads, standard Arduino breakout layout
6. Proto aerea with multiple THT pads, 100 mils pitch

Package Includes:

1 x Arduino Mega Proto Shield Rev3 A000080
