Axl PDB is designed for precision power supply needs of an electronic system requiring 48V input while providing stable and regulated 12V and 5V outputs. It has a four XT90 connectors for 15-48V power transfer from battery to ESC/Motor up to 200A. It also has an integrated current sensors for measuring the current up to 200A and voltage up to 60V.
Features:
- Capable of handle high current (up to 200A).
- Anti spark soft switching for inductive loads.
- Input voltage up to 15-48V (12S).
- 4x XT90 connectors 50A each for ESC with Motor.
- Analoge battery voltage and current sensors output for Flight controllers and Robotic applications.
- DC DC convertor from 15-48 V input (up to 12S battery) to 5V 5A output.
- DC DC convertor from 15-48 V input (up to 12S battery) to 12V 5A output.
- 5V and 12V power output terminals (standard 2.54mm/0.1 connectors).
- Power output for the flight controller (example Pixhawk, Orange cube).
Package Include:
1 x Axldrone Power Distribution Board 200A
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

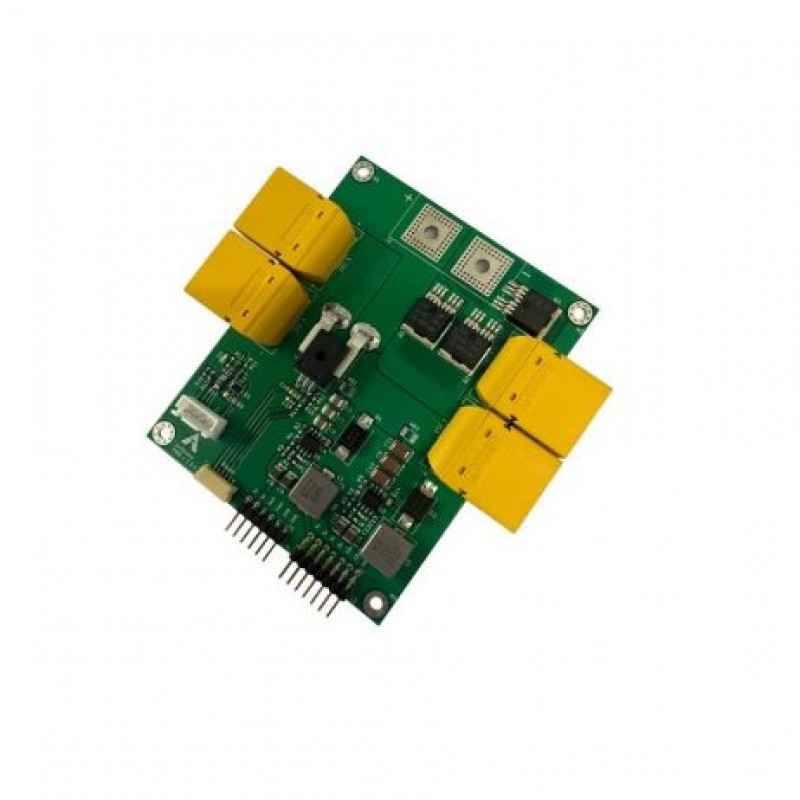

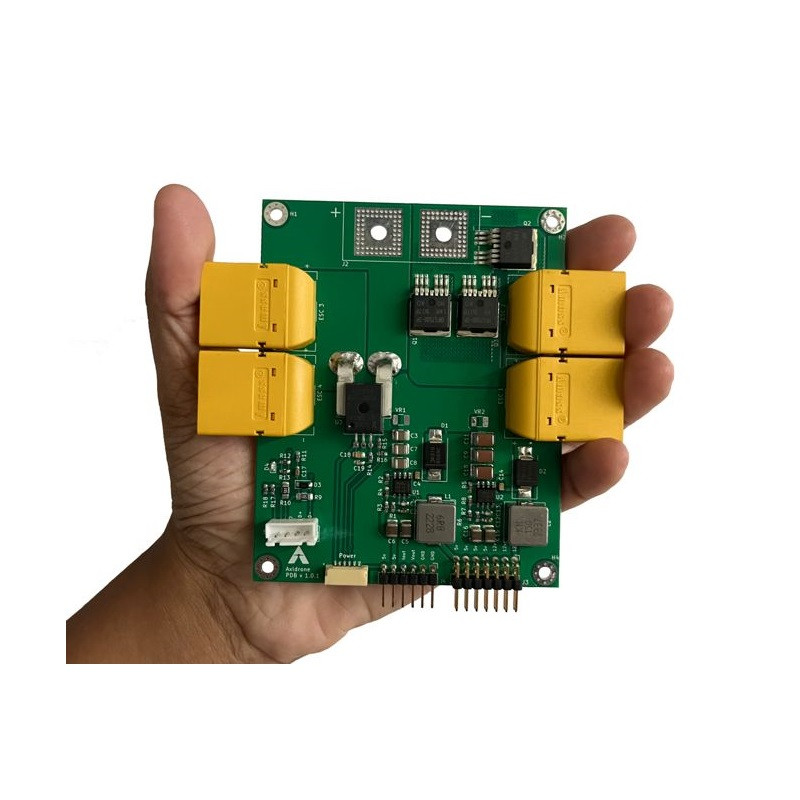

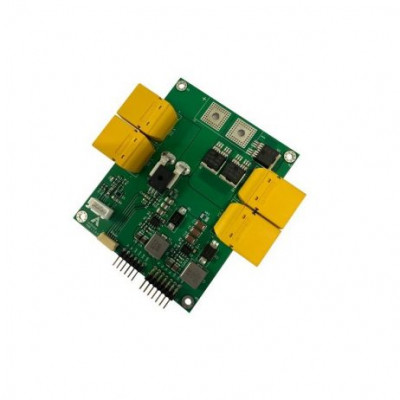

Axldrone Power Distribution Board 200A
- Product Code: EC-25967
- Availability: 1
-
Rs.20239.00
- (Excluding 18% GST)
