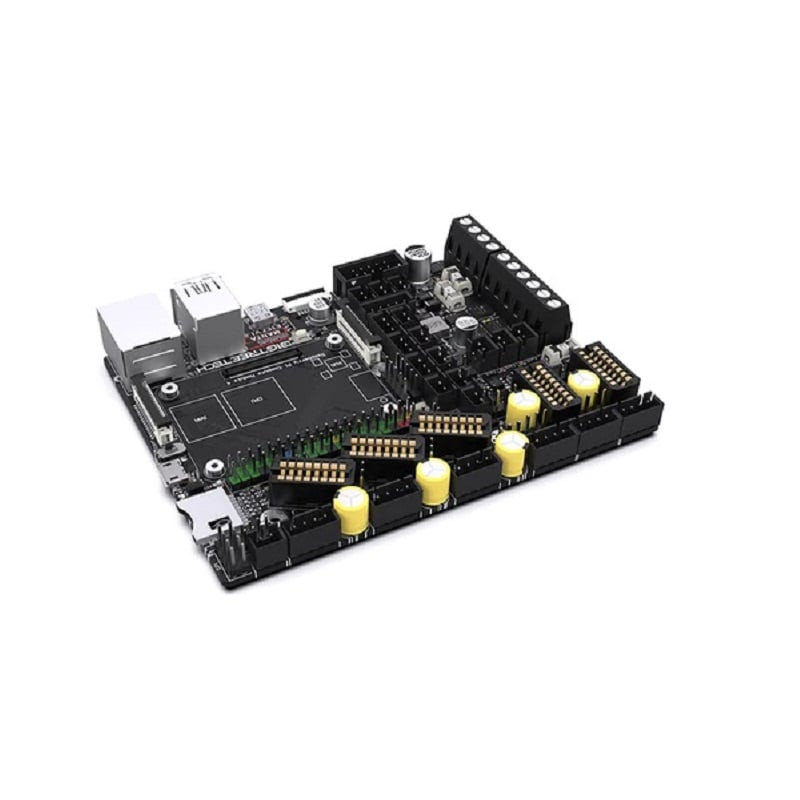

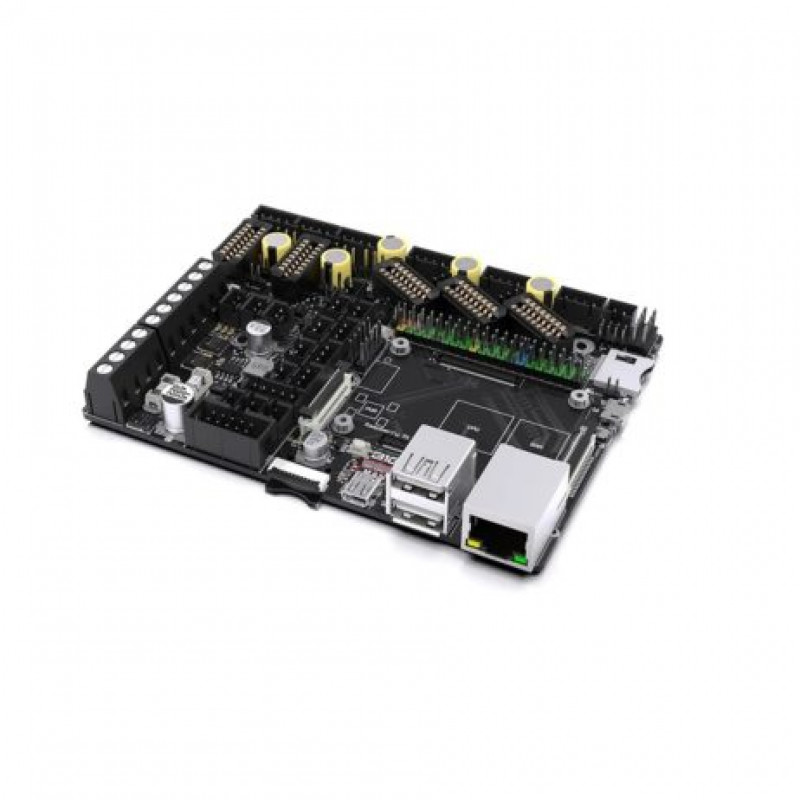

This is a BIGTREETECH Manta E3EZ V1.0 for Ender 3. The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates Manta technology (B2B connectors for the CB1 or CM4 modules) and EZ technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper.

BIGTREETECH Manta E3EZ V1.0 for Ender 3 main board adopts BTT EZ safe anti-misplug design. Matching with BTT EZ drivers, our BIGTREETECH Manta E3EZ V1.0 for Ender 3 board will keep you away from hidden dangers like catching fire or motherboard ruin caused by driver mis-plug. Start a faster and safer printing with BIGTREETECH E3 EZ!.Its also compatible with ender 3 original display/TFT35 SPI /HDMI 5/HDMI 7/TFT35 E3 V3.0.1/TFT35 3.0.1display as well as EZ2209.

Note: The accessories in the set may vary as per quantity availability.

Features:

1. High-efficiency MOSFET for less heat generation.

2. Replaceable fuse for easy maintenance.

3. Onboard SPI interface for connecting acceleration sensor to enable Klippers inputshaping.

4. The temperature sensor interface adopts a high-precision pull-up resistor.

5. Each motor driver module can select the corresponding motor voltage by jumpercaps.

6. The motor power supply supports up to 56V, and for the larger voltage when usingEZ5160, an isolation chip is used to protect the main control from burn

Package Includes:

1 x BIGTREETECH Manta E3EZ V1.0 for Ender 3

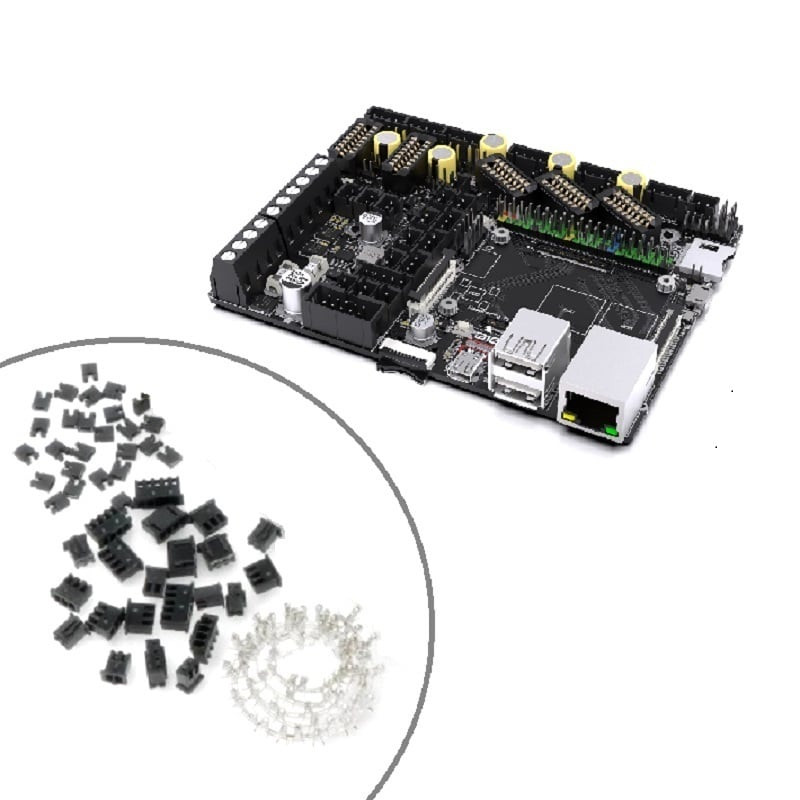

1 x Accessories set (as shown in the image)
