The Ecomate C016 series Circular Connector for use with plant construction and machine building. In design and conception, the program meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions, and a more robust design are only a few of the features of the series. The connector is used for measuring and controlling applications as well as for power supply technology. The series is comprised of a large selection of housings and shapes and offers models with screw, solder, and crimp termination. It is suitable for the 6 to 12.5mm cable.

Features:

1. Housing components made from premium moulding material
2. Cable housing straight or angled
3. Clamping ring or internal strain relief
4. Quick and easy assembly
5. Screwed cable gland with clamping ring
6. Strain relief and mounted gasket all in one component
7. Robust thread for the screwed cable gland
8. Ergonomically designed product range for safe handling
9. Pre-loaded ground contact
10. Fastening for the protective caps on the housing of the receptacles
11. Protection class IP65/67 in mated condition in accordance with DIN EN 60526

Specifications:

1. Product Range: Ecomate C016 Series
2. Circular Connector Shell Style: Cable Mount Plug
3. No. of Contacts: 7 Contacts
4. Connector Body Material: Nylon 6.6 (Polyamide 6.6) Body
5. Contact Plating: Silver

Package Includes:

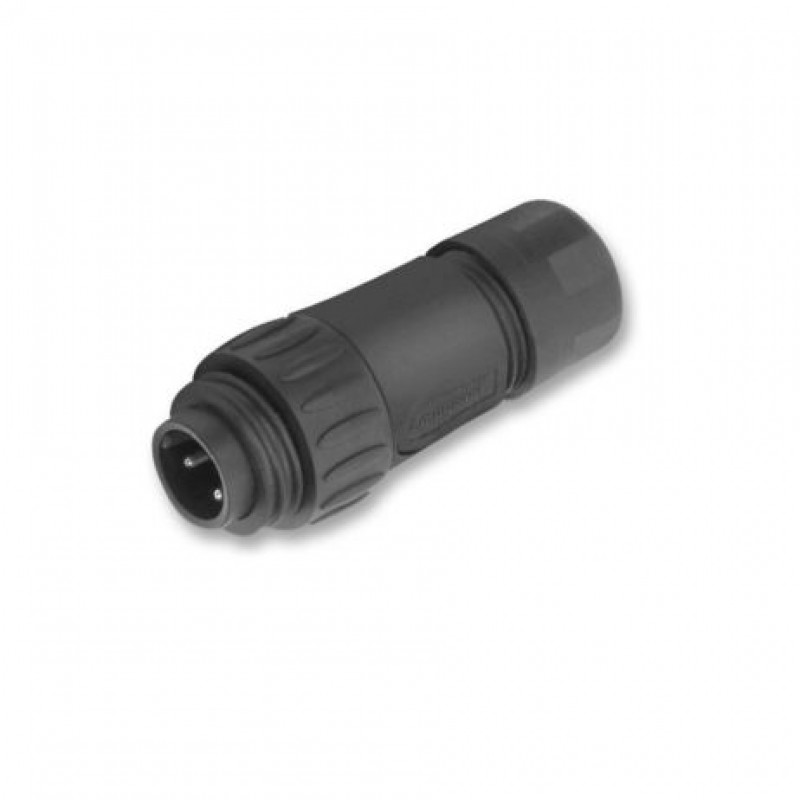

1 x C016 10H006 000 12-PLUG, FREE, ECOMATE, 6+PE
