CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).
Specifications:
- Logic Function: Inverter
- No. of Elements: Hex
- No. of Inputs: 1Inputs
- No. of Pins: 14Pins
- Logic Case Style: DIP
- Product Range: 40106
- Logic IC Family: 4000B
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Schmitt Trigger Input: With Schmitt Trigger Input
- Output Current: 6.8mA
- Operating Temperature Min: -55C
- Operating Temperature Max: 125C
Package Includes:
1 x CD40106BE-TEXAS INSTRUMENTS-CD40106BE-Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, DIP, 40106
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

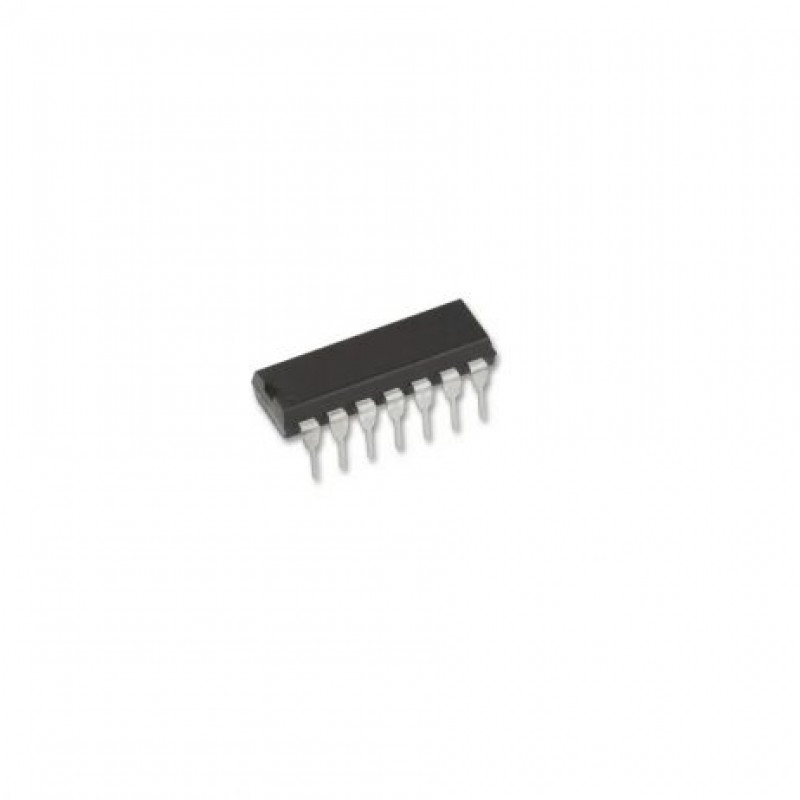

CD40106BE-TEXAS INSTRUMENTS-CD40106BE-Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, DIP, 40106
- Product Code: EC-26966
- Availability: 424
-
Rs.26.00
- (Excluding 18% GST)
