The CD4043 is quad cross-couple 3-STATE CMOS NOR latches These latch has a separate Q output and individual SET and RESET inputs. There is a common 3-STATE ENABLE input for all four latches. A logic “1” on the ENABLE input connects the latch states to the Q outputs. A logic “0” on the ENABLE input disconnects the latch states from the Q outputs resulting in an open circuit condition on the Q output. The 3-STATE feature allows common bussing of the outputs.
Features:-
- Four Independent Cross-Couple 3-state CMOS NOR Latches
- Separate Set and Reset Inputs for each Latch
- 3-state Output
- Operating Temperature to 85°C
- Low Power CMOS
Specifications:-
| Parameter | Specification |
| Part number | CD4040B |
| Supply Voltage (VDD) | −0.5V to +18V |
| Input Voltage (VIN) | −0.5V to VDD +0.5V |
| Storage Temperature Range (TS) | −65°C to +150°C |
| Power Dissipation (PD) Dual-In-Line | 700 mW |
| Lead Temperature (TL) | 260°C |
(For more detailed specification refer Data Sheet)
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 25.96 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

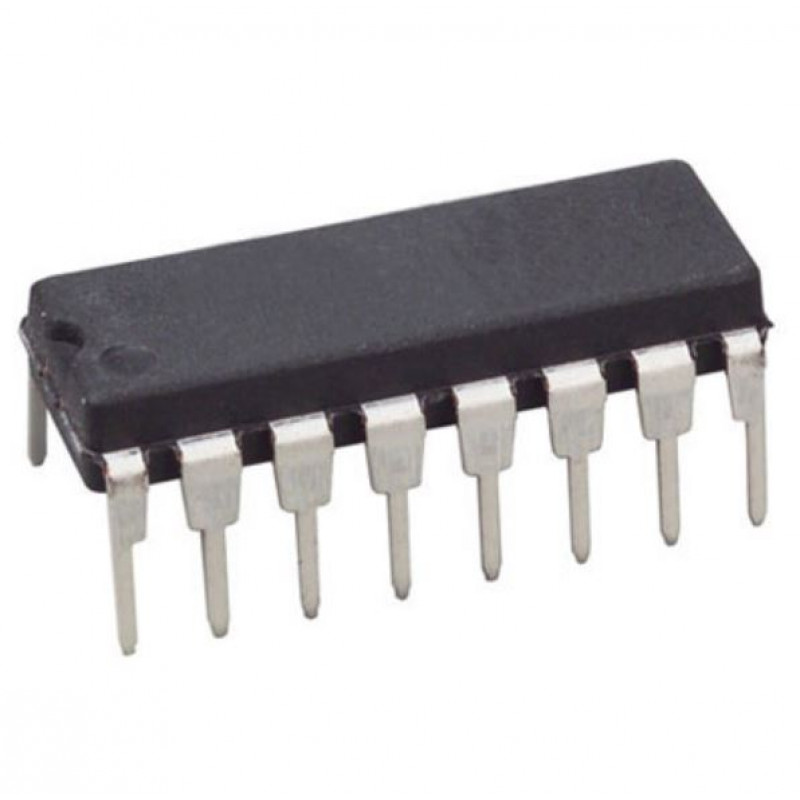

CD4043 Quad NOR R-S Latch Tri-state IC DIP-16 Package
- Product Code: EC-1820
- Availability: 1080
-
Rs.27.00
- (Excluding 18% GST)
