CD4093BE consists of four Schmitt trigger circuits. Each circuit functions as a two input NAND gate with Schmitt trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH).
Specifications:
Operating Temperature Min: -55C
No. of Pins: 14Pins
Operating Temperature Max: 125C
Supply Voltage Min: 3V
Supply Voltage Max: 18V
Logic Function: NAND Gate
Logic Case Style: DIP
No. of Inputs: 2Inputs
No. of Elements: Quad
Schmitt Trigger Input: With Schmitt Trigger Input
Logic IC Family: CD4000
Package Includes:
1 x CD4093BE-TEXAS INSTRUMENTS-CD4093BE-Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, DIP, 4093
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

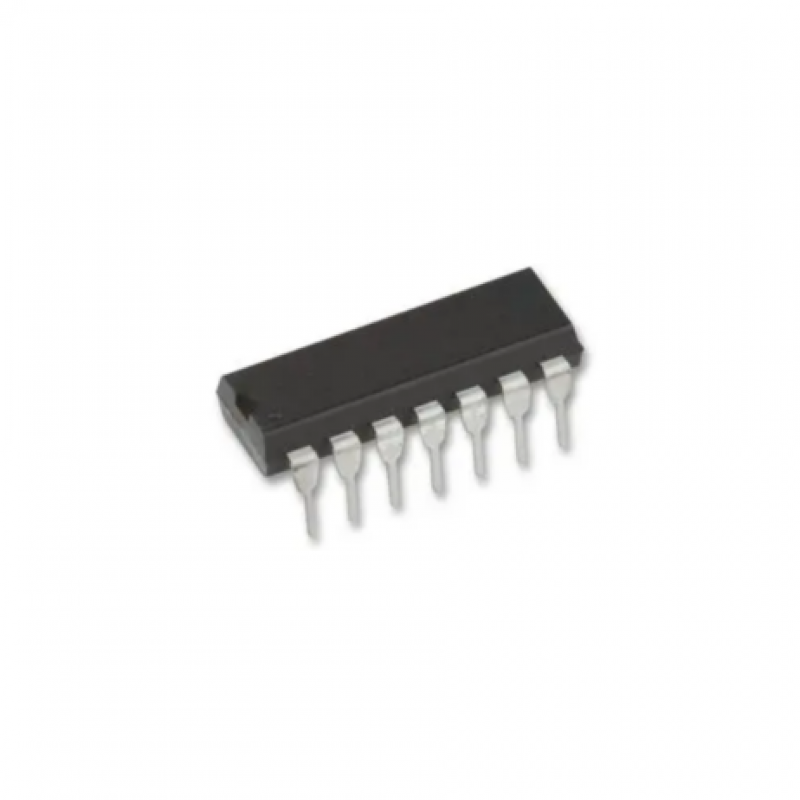

CD4093BE-TEXAS INSTRUMENTS-CD4093BE-Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, DIP, 4093
- Product Code: EC-26861
- Availability: Out Of Stock
-
Rs.28.00
- (Excluding 18% GST)
