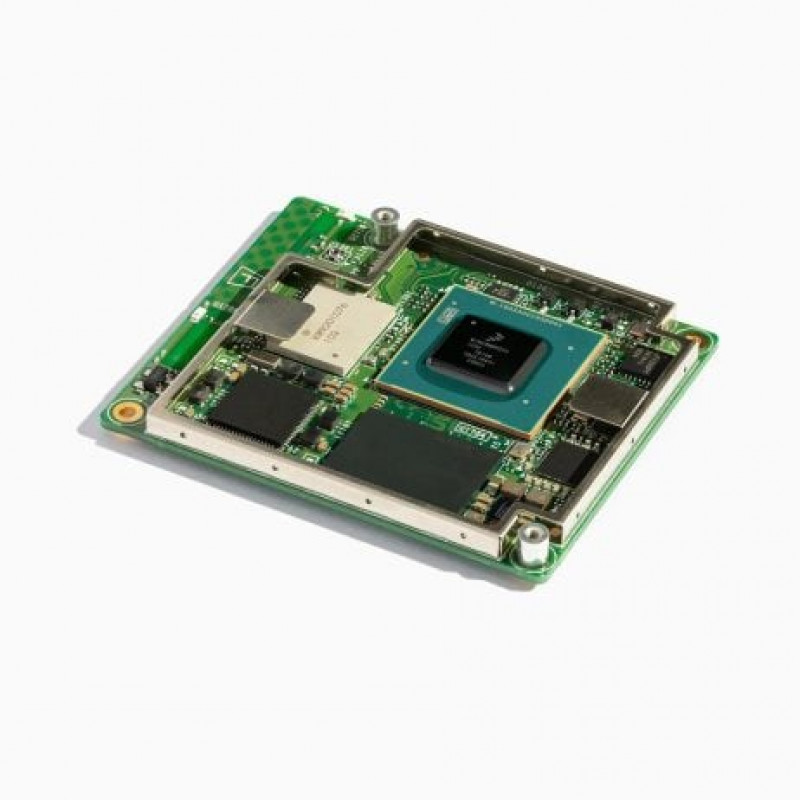

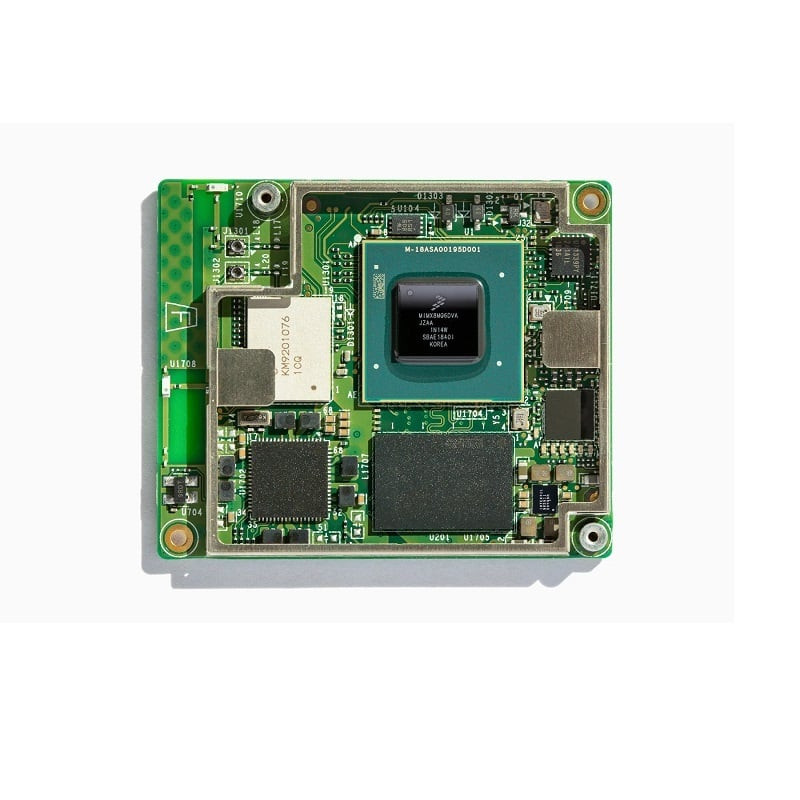

The Coral System-on-Module (SoM) is a fully integrated system that helps you build embedded devices that demand fast machine learning (ML) inferencing. It contains NXPs iMX 8M system-on-chip (SoC), eMMC memory, LPDDR4 RAM, Wi-Fi, and Bluetooth, but its unique power comes from Googles Edge TPU coprocessor for high-speed machine learning inferencing.
Note: For more technical Details Go through Datasheet in the attachment section
Features:
- Performs high-speed ML inferencing
- Integrates with your custom hardware
- Supports TensorFlow Lite
Specifications
- CPU: NXP i.MX 8M SoC (quad Cortex-A53, Cortex-M4F)
- GPU: Integrated GC7000 Lite Graphics
- ML: accelerator Google Edge TPU coprocessor:
- 4 TOPS (int8); 2 TOPS per watt
- RAM: 1 GB LPDDR4 (option for 2 GB or 4 GB coming soon)
- Flash memory: 8 GB eMMC
- Wireless: Wi-Fi 22 MIMO (802.11b/g/n/ac 2.4/5GHz) and Bluetooth 4.2
- Dimensions: 48mm x 40mm x 5mm
Package Includes:
1 x Coral System-on-Module (SoM)CORAL TPU SOM MODULE (1G)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Coral System-on-Module (SoM)CORAL TPU SOM MODULE (1G)
- Product Code: EC-25667
- Availability: 1
-
Rs.10823.00
- (Excluding 18% GST)
