Pluggable terminal blocks are a type of electrical connector that allows for easy and convenient wiring connections. This particular terminal block has a rated current of 8A and a rated voltage of 160V (III/2), with a pitch of 3.81mm.
The terminal block is color-coded green for easy identification and features a contact surface that is tin-plated for enhanced conductivity and durability. These terminal blocks are commonly used in a variety of electrical applications, such as in industrial control systems, power supplies, and lighting fixtures, among others. With their pluggable design, they offer a flexible and reliable solution for wiring and connecting electrical components.
Specifications:
- Rated current: 8A
- Rated voltage: 160V (III/2)
- Pitch: 3.81mm
- Color: green
- Contact surface: tin-plated
- Housing: polyamide (PA66)
- Operating temperature range: -40C to +105C
- Flammability rating: UL94V-0
- Wire size range: 28-16 AWG (0.08-1.5mm)
- Wire stripping length: 5-6mm
Package Includes:
1 x Degson 5 Pin 3.81 mm Pitch Pluggable Terminal Block Plug
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

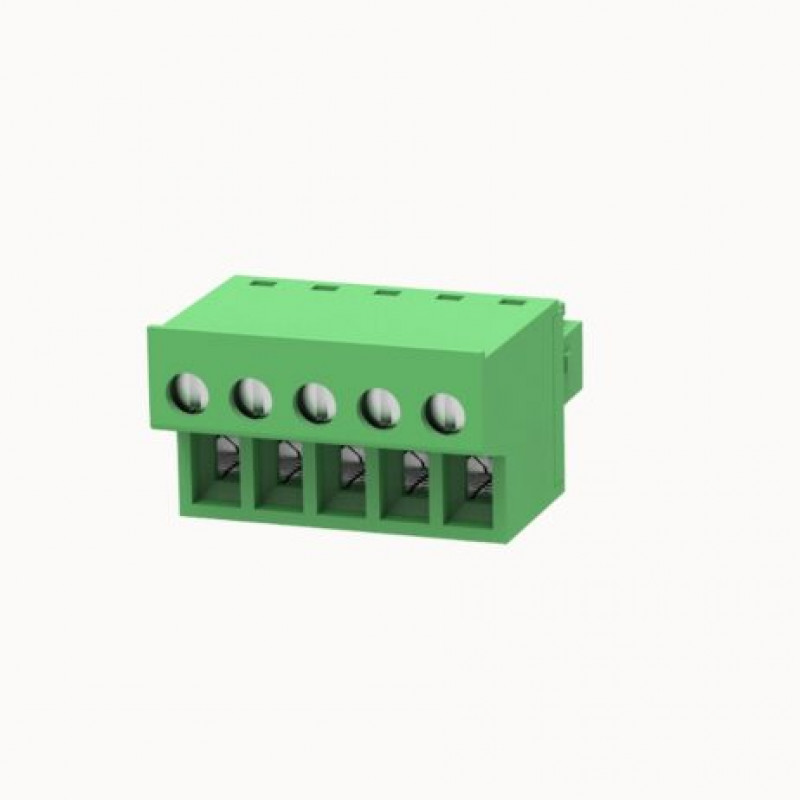

Degson 5 Pin 3.81 mm Pitch Pluggable Terminal Block Plug
- Product Code: EC-21742
- Availability: 52
-
Rs.42.00
- (Excluding 18% GST)
